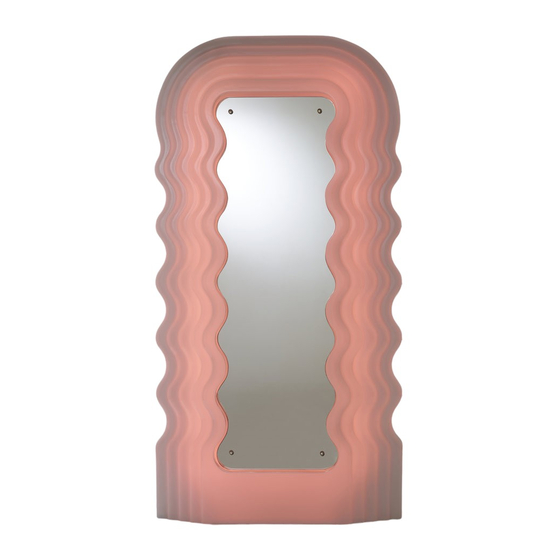

Poltronova Ultrafragola Instructions Manual

Poltronova Ultrafragola Instructions Manual

Advertisement

Available languages

Available languages

Quick Links

about
use
indoor
typology
mirror/lamp
year
1970
dimension 100 x 13 x 195 [h] cm
weight
34 kg
materials vacuum-formed
opaline PETG,
structure in
expanded PVC
voltage
220—240 V
50 Hz
110—120 V
60 Hz
lamp
rgb LED
120 LED/m
voltage 24 V
device power 75 W
lifespan > 25000 h
certifications
warning
The safety of this fixture is only
guaranteed if the following instructions
have been complied with.
Maintain the fixture carefully so as not
to damage components.
PETG or PVC surfaces or other parts
of fixture may be cleaned with a soft
damp cloth and mild detergent.
Never place less than 20-30 cm from a
heat source.
If exposed to direct sunlight, the
materials used in this product may show a
natural chromatic variation.
Do not remove the PETG frame.
Use the appliance only with the power
supply provided and at the rated voltage
specified on the appliance.
To replace the light source contained in
this luminaire, or in case of malfunction,
contact the retailer.
The appliance may in no way be
modified or tampered with. Any change
may compromise its security and void
the warranty.
Poltronova will not be liable
for products that are modified or
used improperly.
Poltronova will replace merchandise
with manufacturing defects only if
the product is intact in all its parts
and provided with the original or
equivalent packaging.
Centro Studi Poltronova
per il desi n srl
via Lorenzo Bartolini 2,
50124 Firenze — Italy
www.poltronova.it
info@poltronova.it

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ultrafragola and is the answer not in the manual?

Questions and answers

Summary of Contents for Poltronova Ultrafragola

  • Page 1 Any change 60 Hz may compromise its security and void the warranty. lamp rgb LED Poltronova will not be liable 120 LED/m for products that are modified or voltage 24 V used improperly. device power 75 W...
  • Page 2: Installation And Maintenance

    PVC panel detergent, the glass surface with a chrome plated specific detergent. brass hangers 80,5 cm NEON Slide the Ultrafragola gently down Connect the power supply and use until it’s safely anchored. the switch to turn the appliance on.
  • Page 3 Centro Studi Poltronova Poltronova sostituirà la merce con per il desi n srl difetti di fabbrica solo nel caso in via Lorenzo Bartolini 2, cui il prodotto sia intatto in tutte le 50124 Firenze —...
  • Page 4: Installazione E Manutenzione

    80,5 cm NEON Far scorrere leggermente verso il Collegare l’alimentazione e basso Ultrafragola finché non è utilizzare l’interruttore per fissato saldamente. accendere il prodotto.
  • Page 5 Toute modification peut compromettre la sécurité du lampe LED rgb dispositif et annuler sa garantie. 120 LED/m Poltronova n’est pas responsable tension 24 V des produits modifiés ou pour lesquels énergie de dispositif l’utilisation n’est pas adaptée. Poltronova remplacera la marchandise 75 W avec défauts d’usine uniquement dans...
  • Page 6 80,5 cm NEON Glisser légèrement Ultrafragola Brancher l’alimentation et vers le bas jusqu’à ce qu’il soit utiliser l’interrupteur pour solidement fixé. allumer le dispositif.
