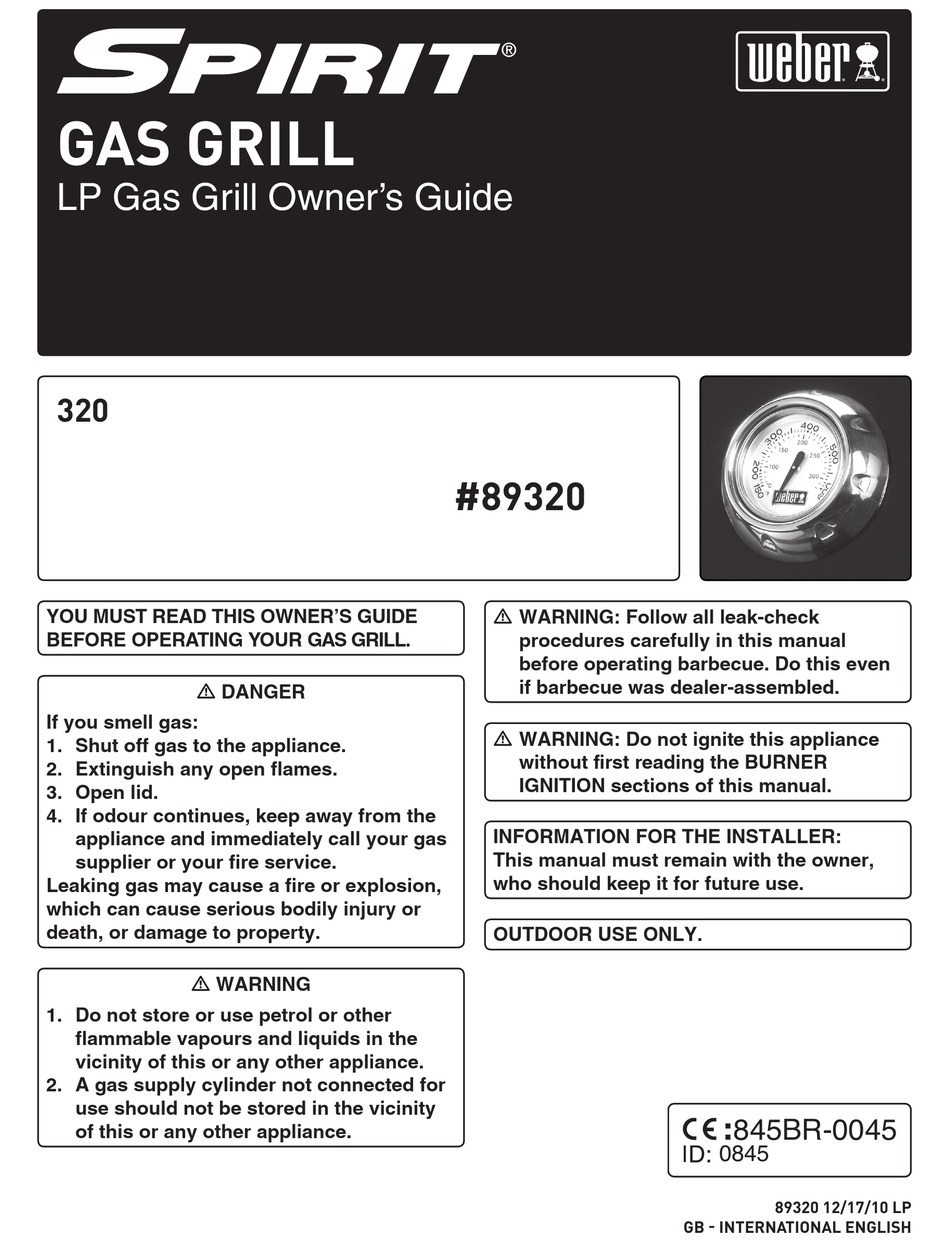

GAS GRILL
LP Gas Grill Owner's Guide
320
YOU MUST READ THIS OWNER'S GUIDE
BEFORE OPERATING YOUR GAS GRILL.
m DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odour continues, keep away from the
appliance and immediately call your gas
supplier or your fire service.
Leaking gas may cause a fire or explosion,
which can cause serious bodily injury or
death, or damage to property.
m WARNING
1. Do not store or use petrol or other
flammable vapours and liquids in the
vicinity of this or any other appliance.
2. A gas supply cylinder not connected for
use should not be stored in the vicinity
of this or any other appliance.
#89320
m WARNING: Follow all leak-check
procedures carefully in this manual
before operating barbecue. Do this even
if barbecue was dealer-assembled.
m WARNING: Do not ignite this appliance
without first reading the BURNER
IGNITION sections of this manual.
INFORMATION FOR THE INSTALLER:
This manual must remain with the owner,
who should keep it for future use.
OUTDOOR USE ONLY.
845BR-0045
0845
89320 12/17/10 LP
GB - INTERNATIONAL ENGLISH
