Boss Snowplow MSC22875B Owner's Manual

Broadcast spreader and control kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
Broadcast Spreader and Control Kit
Snowrator and Snowrator MAG
Part No. SNR24030—Serial No. 400000000 and Up
Part No. MSC22875B—Serial No. 400000000 and Up
Register at www.bossplow.com.
Original Instructions (EN)
Form No. MSC25339 Rev A
*MSC25339*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSC22875B and is the answer not in the manual?

Questions and answers

Related Manuals for Boss Snowplow MSC22875B

Summary of Contents for Boss Snowplow MSC22875B

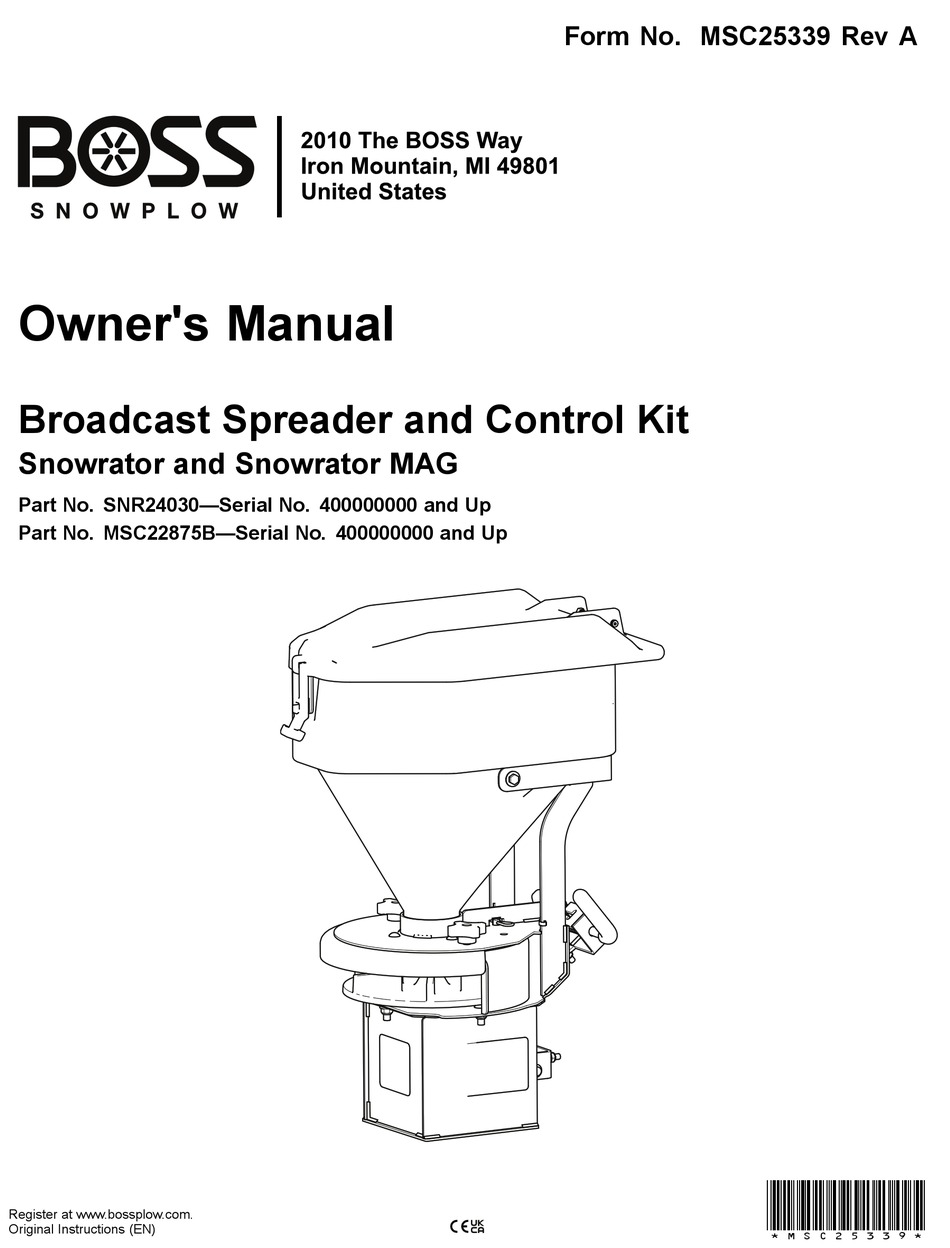

  • Page 1 Form No. MSC25339 Rev A Owner's Manual Broadcast Spreader and Control Kit Snowrator and Snowrator MAG Part No. SNR24030—Serial No. 400000000 and Up Part No. MSC22875B—Serial No. 400000000 and Up *MSC25339* Register at www.bossplow.com. Original Instructions (EN)

  • Page 2: Table Of Contents

    BOSS Products limited consumer warranty and BOSS The safety-alert symbol shown in this manual and on Products commercial warranty policies are located at the machine identifies important safety messages that www.bossplow.com. you must follow to prevent accidents. Patent www.ttcopats.com. g000502 Figure 2 Introduction Safety-alert symbol...

  • Page 3: Safety

    Safety Improperly using and maintaining the equipment can result in injury. To reduce the potential for injury, comply with these safety instructions. Preparation • Ensure that only trained personnel install and perform maintenance on the equipment. • Always wear appropriate personal protective equipment when loading, unloading, and servicing the spreader.

  • Page 4: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal143-1088 143-1088 1. Warning—read the Owner’s Manual. 6. Thrown object hazard—keep bystanders away. 2.

  • Page 5: Setup

    Setup Installing the Mounting Plates g446222 Figure 5 Snowrator g383799 Figure 3 g387680 Figure 6 Snowrator MAG Install the upper mounting bracket using 2 bolts (5/16-18 x 1 inch) and 2 nuts (5/16-18 inch). Note: If your fender does not have mounting holes, proceed to Drilling Mounting Holes on the Fender (page...

  • Page 6: Drilling Mounting Holes On The Fender

    Torque the fasteners to 15 N∙m (11 ft-lb). Drilling Mounting Holes on the Fender Note: This step is for machines without mounting holes on the fenders. If your fenders do not have mounting holes as shown in Figure 7, you will need to use the upper mounting bracket assembly as a guide to drill holes in the fenders.

  • Page 7: Installing The Spreader On The Mounting Plates

    Installing the Spreader on Rotate the spreader upright to the mounting hole and spring bracket. Release the latch pin the Mounting Plates to secure the assembly. Place the spreader mounting flange on the mounting bar. g382859 Figure 13 g382863 Figure 11 Pull back and lock the latch pin.

  • Page 8: Installing The Controller

    Installing the Controller Installing the Controller on the Snowrator Installing the Controller on the Remove the cushion from the machine. Snowrator MAG Remove the cushion from the machine. Remove the knockout panel on the control panel. g319131 Figure 17 g383797 Remove the knockout panel on the control Figure 15 panel.

  • Page 9: Routing The Wire Harness

    Routing the Wire Harness Important: Keep the harness away from hot or moving parts. g382856 Figure 19 g388640 Figure 20 1. Machine harness 2. Controller connector connector Connect the controller connector to the back side of the previously installed control and secure with cable ties.

  • Page 10: Product Overview

    Product Overview Connect the spreader side harness to the spreader connector. Route this harness over the fender near the spreader latch pin. Secure any excess wires with cable ties. g382943 Figure 21 1. Lid 4. Material deflector 2. Hopper 5. Motor box 3.

  • Page 11: Specifications

    Controller Operation The spreader controller lets you operate your spreader Note: and displays information about your machine. Determine the left and right sides of the machine from the normal operating position. DANGER The spreader is heavy and could cause serious injury or property damage if it falls off the vehicle.

  • Page 12: Loading The Spreader

    Slow speeds spread material close and densely. Fast speeds spread material far and thinly. Drive at a consistent speed as you spread material. When you are finished spreading, turn the spreader off. Freeing a Clog If the clog is not cleared automatically, turn off the machine, disconnect the spreader wire harness, and manually free the clog.

  • Page 13: Cleaning The Spreader

    Cleaning the Spreader Service Interval: Before each use or daily—Clean the spreader. Important: Do not use water to clean the spreader. Use compressed air to clear debris and materials from the spreader and hopper.

  • Page 14: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action The controller has no power. 1. The controller is not plugged into the 1. Plug in the controller. wire harness. 2. The electrical system is damaged. 2. Contact your authorized BOSS dealer. 3. A fuse is blown. 3.
  • Page 15 Notes:...
