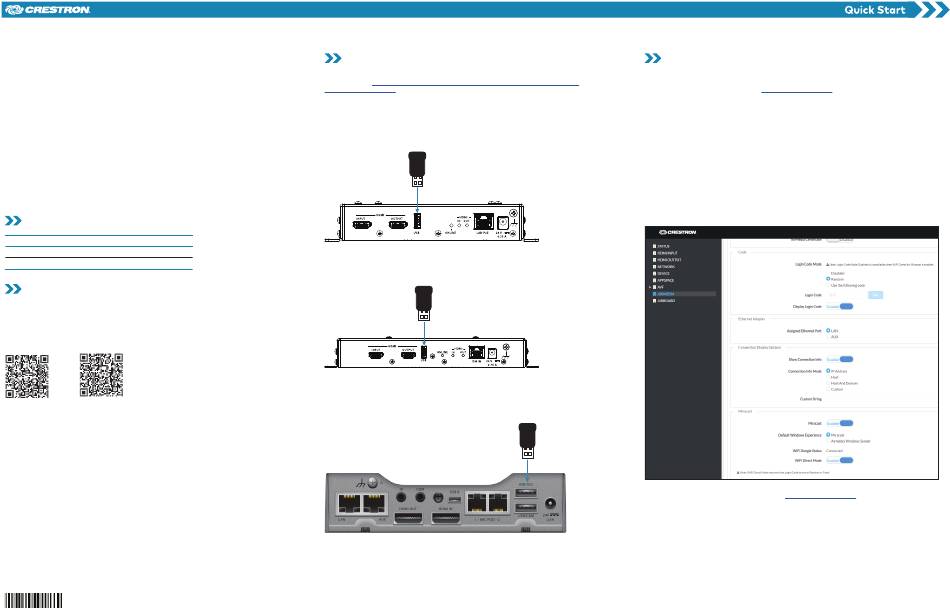

Crestron AirMedia AM-USB-WIFI-I Quick Start

AM-USB-WIFI/AM-USB-WIFI-I
AirMedia® USB Adapter with Wi-Fi® Connectivity
The AM-USB-WIFI and AM-USB-WIFI-I are USB dongles that enable the use of Miracast®
projection technology with the AM-200 and AM-300 presentation systems and the CCS-UC-1
Crestron Mercury® UC Tabletop Conferencing System. Miracast is built into the Microsoft®
Windows® 10 operating system, so no software installation is necessary.
NOTES:
• The AM-USB-WIFI and AM-USB-WIFI-I are functionally identical. The AM-USB-WIFI-I
model is sold outside of the United States. In this document, the term "AM-USB-WIFI"
denotes both versions of the product.
• When using the AM-USB-WIFI or the AM-USB-WIFI-I with the AM-200
or AM-300, the ZUMMESH-AVBRIDGE, ZUMMESH-KP10AMBATT, and
ZUMMESH-PIR-OCCUPANCY-BATT are not supported.
IMPORTANT NOTE: To comply with ISED CANADA and FCC RF Exposure compliance
requirements, the antenna used for this transmitter must be installed to provide separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
REMARQUE IMPORTANTE: Pour être conforme aux exigences de conformité d'ISED CANADA
de la FCC en matière d'exposition aux radiofréquences, l'antenne utilisée pour cet émetteur
do être installée de manière à assurer une distance de séparation d'au moins 20 cm de toutes l
personnes. toute autre antenne ou émetteur.
Check the Box
Item Qty
AM-USB-WIFI 1
AM-USB-WIFI-I 1
Required Firmware
The AM-USB-WIFI is compatible with the following firmware:
• CCS-UC-1 version 1.4095 or later
• AM-200 and AM-300 version 1.4213 or later
Scan or click the below QR codes for detailed firmware information:
CCS-UC-1 AM-200/AM-300
Installation
CAUTION: The AM-USB-WIFI module should not be shielded or covered when in operation.
Please refer to Best Practices for: Installation and Setup of Crestron RF Products
crestron.com/manuals to avoid wireless interference when using the device.
AM-200/AM-300 Installation
Insert the AM-USB-WIFI into the USB port on the AM-200 or AM-300.
AM-200 Installation
AM-USB-WIFI
AM-300 Installation
AM-USB-WIFI
CCS-UC-1 Installation
Insert the AM-USB-WIFI into the USB/ACC port on the CCS-UC-1.
Configuration
NOTE: The configuration of this device requires a working knowledge of the AM-200, AM-300,
at or the CCS-UC-1. Refer to the AM-200/-300 Product Manual (Doc. 8254F) or the CCS-UC-1
Supplemental Guide (Doc. 7844K) at
each product.
Use a web browser to navigate to the IP address or host name of the host device.
1. After signing in, click on the AIRMEDIA link in the left-hand pane.
2. In the Miracast section, set Miracast to Enabled. A dialog box prompting a device reboot
will appear after Miracast is enabled. Select Yes.
3. Set the Default Windows Experience to Miracast so that instructions tailored to Miracast
will appear when starting the presentation. A dialog box prompting a device reboot will
appear after Miracast is set as the Default Windows Experience. Select Yes.
4. Set WiFi Direct Mode to Enabled so that if the initial LAN connection fails, a Wi -Fi point to
point connection will occur.
NOTES:
• If WiFi Direct Mode is enabled, Login Code Mode must be set to Random or to Use
the following code, where a fixed code is entered to login.
• For the best user experience, Crestron highly recommends setting WiFi Direct Mode
to enabled.
AM-USB-WIFI
NOTE: For Miracast network requirements, best practices, and troubleshooting, refer to the
AirMedia Deployment Guide (Doc. 7693K) at crestron.com/manuals.
crestron.com/manuals for further information regarding
