HearthSong 730906 Assembly Instructions

3-in-1 Baseball Trainer

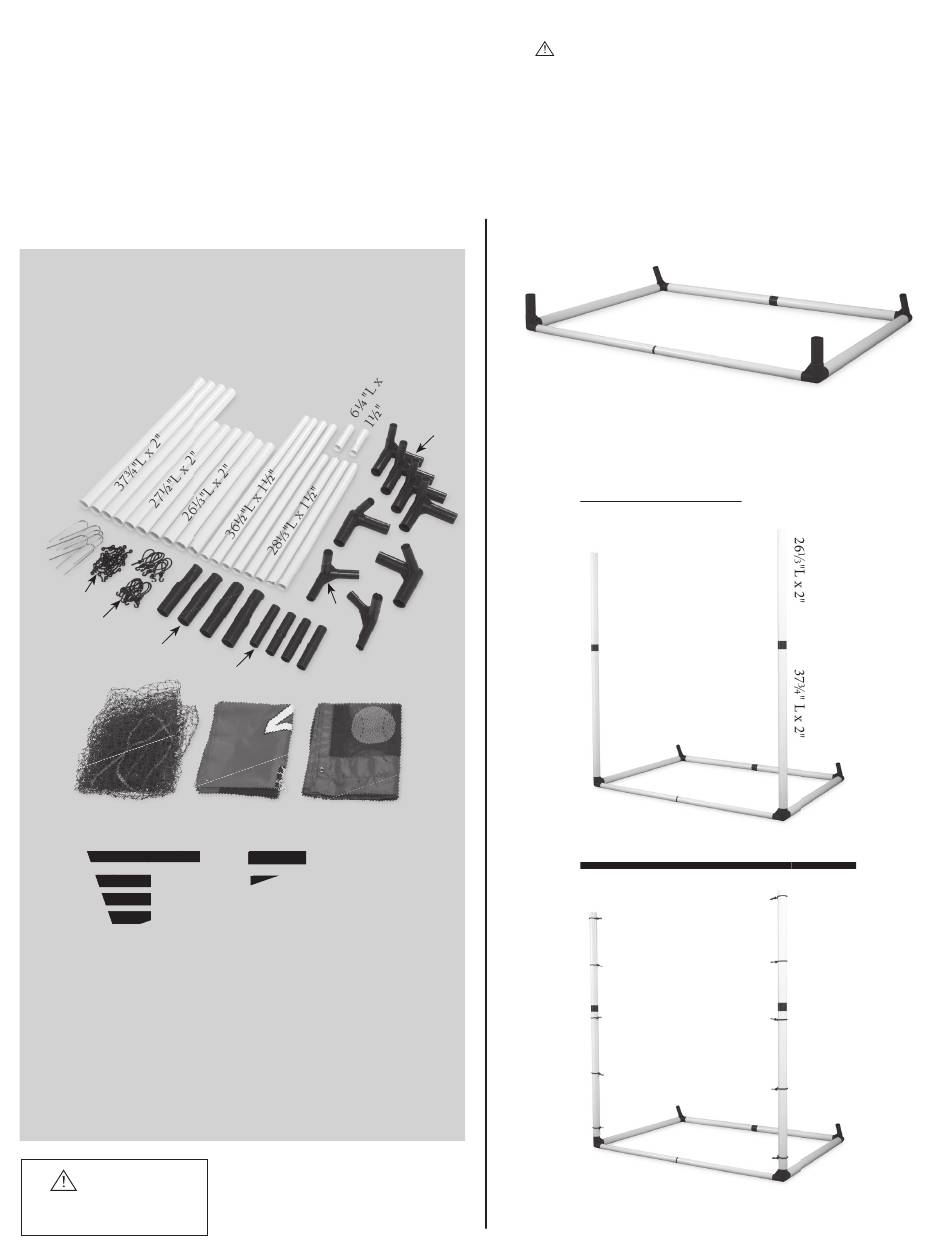

Make sure you have all the necessary parts:
WHAT YOU GET
Before you begin assembly, lay out all parts. Group same-
size poles together. Use the measuring tool on the side
of the box to help you sort the poles into sizes.
Ground-
stakes
Net
clamps
Bungee-
cord
hooks
53F Joints
Net Strike Zone
panel
2" DIAMETER POLES: DIAMETER POLES:
• 4 Poles (37¾"L) • 4 Poles (37¾"L)
• 4 Poles (27½"L) • 4 Poles (27½"L)
• 2 Poles (26⅓"L) • 2 Poles (26⅓"L)
1½" DIAMETER POLES:
• 4 Poles (36½"L)
• 4 Poles (28⅓"L)
• 2 Poles (6¼")
• 14 Bungee-cord hooks for
attaching the Rebounder
and Strike Zone panels
• 25 Black net clamps
WARNING:
CHOKING HAZARD—
Small parts.
Not for children under 3 yrs.
Assembly Instructions
A Joints
B Joints
C Joint
D Joint
38E Joints
Rebounder
panel
JOINTS: JOINTS:
• 4 A Joints • 4 A Joints
• 2 B Joints
• 1 C Joint
• 1 D Joint
• 4 (38E) Connector for
1½"-diam. Poles
• 4 (53F) Connector for
2"-diam. Poles
• Rebounder Panel
• Strike Zone Panel
• Net
• 6 Ground Stakes
WARNING: Adult assembly required.
TO ASSEMBLE:
Base Assembly
D
38E Connector
A
Front: Two 28⅓"L x 1½" Poles
1. Create the base assembly. Using two 27½"L x 2" poles and
one 53F connector, assemble the bottom-back-pole. Assemble
the bottom-front-pole using two 28⅓"L x 1½" poles and one
38E connector. Attach two 37¾"L x 2" poles for the sides to
complete the base assembly, using one D and one C joint in the
back and two A joints in the front.
back and two A joints in the front.
Front-Side-Poles
D
A
Front
2. Assemble the front-side-poles using one 37¾"L x 2" pole, one
26⅓"L x 2" pole, and one 53F connector to make each pole. 26⅓"L x 2" pole, and one 53F connector to make each pole.
Bungee-cord Hooks
D
Front
A
3. Slip 5 bungee-cord hooks onto each assembled front-side-pole.
Having the hook openings facing toward the back of the trainer
will make it easier to attach the panels.
#730906 | Ages 5+.
Back: Two 27½"L x 2" Poles
53F Connector
A
53F Connector
Back
C
A
Back
C
A
C
Sides: Two
37¾"L x
2" Poles
