DIRECTOR COLLECTION
TM

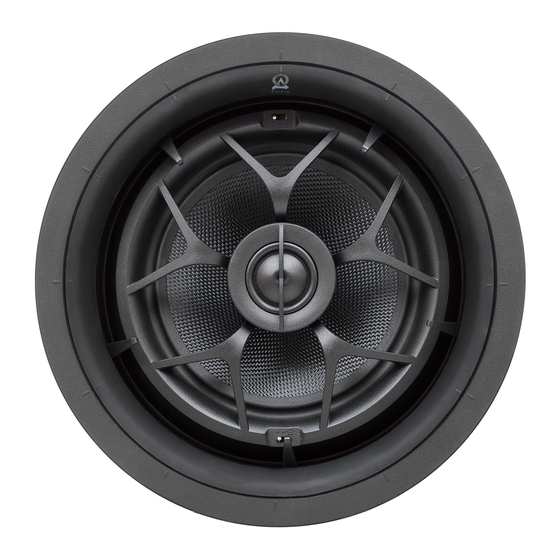

D69
D67
D65
D63
D63DT|SUR
D61DT
D61-6
(6 PACK)
D60-8
(8 PACK)
DIRECTOR 6" SERIES SPEAKER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIRECTOR D69 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Origin Acoustics DIRECTOR D69

Summary of Contents for Origin Acoustics DIRECTOR D69

  • Page 1 DIRECTOR COLLECTION D63DT|SUR D61DT D61-6 (6 PACK) D60-8 (8 PACK) DIRECTOR 6” SERIES SPEAKER MANUAL...

  • Page 2: Table Of Contents

    DIRECTOR COLLECTION MANUAL • D60 SERIES Table of Contents 1. Introduction 2. Specifications 3. What’s Included 4. Product Features 5. Required Tools 6. Recommended Speaker Wire 7. Speaker Wire Installation Guidance 8. Speaker Placement Guidance 9. Cutting the Hole 10. Installation Guidance 11.

  • Page 3: Introduction

    1. Introduction Thank you for purchasing the Director 6” In-Ceiling Speaker. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, lon- gevity, and a simple installation process.

  • Page 4: Specifications

    DIRECTOR COLLECTION MANUAL • D60 SERIES 2. Specifications SPECIFICATIONS ALL 6'' SERIES Cutout Diameter 8 3/4” (222mm) Speaker Diameter 9 5/8” (244mm) Grille Diameter 10” (254mm) 3/16” Grille Depth (5mm) MODEL PART SCD60900 SCD60700 SCD60500 Tweeter 1” Silk DPSD™ MMP™ 1”...

  • Page 5: What's Included

    3/16” (5mm) When you have decided on the location for the speaker, trace this template lightly in pencil Origin Acoustics where the hole should be. If unsure on whether there may or may not be studs where the O R I G I N®...

  • Page 6: Product Features

    DIRECTOR COLLECTION MANUAL • D60 SERIES 4. Product Features 4a. Director Speaker Features • D65 - 69 • D63 | D61-6 • D63DT/SUR...
  • Page 7 DIRECTOR COLLECTION MANUAL • D60 SERIES • D61DT • D60-8 A) METAL RING - LOCK Locks speaker into place inside Bayonet Ring. (Move outwards from the Bayonet Ring to release speaker. Move inwards to Lock.) B) TWEETER C) PIVOTING WOOFER D) DUAL TWEETER...
  • Page 8 B) TWEETER C) MID-RANGE DIRECTOR COLLECTION MANUAL • D60 SERIES D) DUAL TWEETER 4b. Bayonet Ring Features A) BAYONET RING To be inserted within in-ceiling hole B) METAL RING - LOCK Locks speaker into place inside Bayonet Ring. (Move outwards from the Bayonet Ring to release speaker. Move inwards to Lock.) C) BAYONET RAILS The Zip-Klips grips are raised &...

  • Page 9: Required Tools

    E) RELEASE TABS Press BLACK tabs inwards to release grip and raise Zip-Klip DIRECTOR COLLECTION MANUAL • D60 SERIES F) LOCK GROOVES Used to ALIGN & LOCK speaker inside Bayonet Ring. 5. Required Tools • Drywall Saw • Measuring Tape •...

  • Page 10: Speaker Wire Installation Guidance

    DIRECTOR COLLECTION MANUAL • D60 SERIES 7. Speaker Wire Installation Guidance Use a two conductor wire that allows you to identify one conductor from the oth- er. This designation may be obvious or as subtle as a ridge on one conductor. It’s crucial that you keep track of which wire you use for positive (+) and negative (-).
  • Page 11 DIRECTOR COLLECTION MANUAL • D60 SERIES 7b. Wire Routing Plan how you’ll route the wire to the desired speaker location. There are several methods for routing the wire, and you may need to combine several of them. • • Behind the Baseboard Through Walls The wire can be routed behind the When running wires through a wall, be...
  • Page 12 DIRECTOR COLLECTION MANUAL • D60 SERIES 7c. Dual Tweeter Installation Guidance The Dual Tweeter models may be used for either one channel (surround) or two channels (stereo), depending on the model. • Stereo: (D63DT/SUR & D61DT Models) In this mode, two channels are fed into the speaker: one channel for each tweeter. This setup is ideal for small rooms such as walk-in closets and bathrooms, as well as oddly-shaped areas such as hallways.

  • Page 13: Speaker Placement Guidance

    DIRECTOR COLLECTION MANUAL • D60 SERIES 8. Speaker Placement Guidance • Auxiliary Room (2 Speaker Placement) Ideally, the two speakers should be placed an equal distance from the listener. If the room has a lower ceiling, 6’ (2m) the speakers can be closer together. Also, if the speaker placement is 3’...

  • Page 14: Cutting The Hole

    DIRECTOR COLLECTION MANUAL • D60 SERIES 9. Cutting the Hole When you’ve decided on the locations for all of the speakers, use the Cut-Out Template to trace a circle lightly in pencil where the hole should be. (If you don’t have a template, check the Specifications section for cutout sizes).
  • Page 15 REMOVAL OF SPEAKER FROM OPEN OPEN POSITION Twist Speaker POSITION Twist Speaker ᵒ ᵒ Origin Acoustics D109 install Origin Acoustics Counter - Clockwise 6975 S Decatur Blvd D109 install 6975 S Decatur Blvd Suite 140 Counter - Clockwise Suite 140...
  • Page 16 OPEN 10b. INSTALLING BAYONET RING INTO CEILING KER FROM BAYONET RING SPEAKER INSTALLATION POSITION Twist Speaker ᵒ Origin Acoustics D109 install 6975 S Decatur Blvd Counter - Clockwise Suite 140 1) Gently bend the Zip-Clip™ rails Las Vegas, NV 89118...
  • Page 17 LIFT UP Inwards TAB TOWARDS the Bayonet Ring. are aligned. Note: Grille may not sit flush until this Lock is properly engaged. to Fit through Ceiling Hole originacoustics.com • 844-674-4461 nts mentioned herein are the sole property of Origin Acoustics.
  • Page 18 DIRECTOR COLLECTION MANUAL • D60 SERIES 10d. CONNECTING THE SPEAKER WIRE Take the ceiling speaker wire and connect it to the Terminal Connector on the Speaker. Push down on each connector, and insert each wire into the opening with the correct polarity. Make sure that the positive wire is attached to the red connection and the negative wire is being attached to the black connection.
  • Page 19 DIRECTOR COLLECTION MANUAL • D60 SERIES WITH RING-LOCK TAB MOVED OUTWARDS, INTO OPEN & UNLOCKED POSITION, INSERT SPEAKER INTO BAYONET RING A C O U S T I C S w w w . o r i g i n a c o u s t i c s . c o m O R I G I N ®...
  • Page 20 DIRECTOR COLLECTION MANUAL • D60 SERIES UNTIL GROOVE LINES ALIGNED Push the Zip-Clip™ rails inwards from the TAL LOCK ONE QUARTER TURN COUNTER- top, just enough, so they fit through the ng, before CLOCKWISE will release the Speaker ceiling hole opening, then INSERT THE onet Ring.

  • Page 21: Final Sound Adjustments

    DIRECTOR COLLECTION MANUAL • D60 SERIES 11. Final Sound Adjustments 11a. Mid Range & Tweeter Positions Depending on the speaker model, the midrange and tweeter can be pivoted to direct the sound towards the listening area. Or for a more diffused surround sound experience, the rear speakers can be aimed towards the wall.

  • Page 22: Adding The Grille

    DIRECTOR COLLECTION MANUAL • D60 SERIES 12. Adding the Grille 12a. Installing the Grille The magnetic grille easily fits over the speaker. Square replacement grilles are also available for purchase separately. 12b. Painting the Grille In some situations the speakers may look better if the color matched the walls, ceiling, or trim in the room.

  • Page 23: Troubleshooting

    DIRECTOR COLLECTION MANUAL • D60 SERIES 13. Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. If it does work, then the problem is with the tele- vision, DVD player, or the cables connecting them.

  • Page 24: Technical Assistance

    If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return at- tempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process.

  • Page 25: Warranty

    MANUAL • D60 SERIES 15. Limited Lifetime Warranty Origin Acoustics warrants to the original retail purchaser only that this Origin Acoustics product will be free from defects in materials and workmanship, provid- ed the speaker was purchased from an Origin Acoustics authorized dealer.

  • Page 26: Return Process

    Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product.
  • Page 27 DIRECTOR COLLECTION MANUAL • D60 SERIES NOTES...
  • Page 28 05-30-23 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2023 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
