Mafell KF 1000 Translation Of The Original Operating Manual
Edge cutter
Hide thumbs
Also See for KF 1000:
- Translation of the original operating manual (122 pages) ,
- Translation of the original operating manual (13 pages)
Table of Contents
Advertisement
Quick Links
170645.0220/a
Kantenfräse
Edge cutter
Affleureuse
Fresatrice per bordi
Kantfreesmachine
Fresa de cantos
Kulmajyrsin
Kantfräs
Kantfræser
Кромочный фрезер
Frezarka krawędziowa
Hranová frézka
Robni rezkalnik
WARNUNG
Lesen Sie alle Sicherheitshinweise und Anweisungen. Versäumnisse bei der Einhaltung der Sicherheitshinweise und Anweisungen
können elektrischen Schlag, Brand und/oder schwere Verletzungen verursachen. Bewahren Sie alle Sicherheitshinweise und
Anweisungen für die Zukunft auf.
WARNING
Please read all safety instructions and directions. Failure to comply with the safety instructions and directions can cause electric shock, fire
and/or serious injuries. Please retain all safety instructions and directions for future reference.
AVERTISSEMENT
Veuillez lire toutes les consignes de sécurité et instructions. Tout non-respect des consignes de sécurité et instructions risque d'être à
l'origine de décharges électriques, d'incendies et/ou de blessures graves. Conservez toutes les consignes et instructions pour pouvoir les
relire à tout moment.
AVVERTENZA
Leggere tutte le avvertenze di sicurezza e le istruzioni. La mancanza del rispetto delle avvertenze di sicurezza e delle istruzioni possono
causare scossa elettrica, incendio e/o gravi lesioni. Conservare tutte le avvertenze di sicurezza e le istruzioni per il futuro.
WAARSCHUWING
Lees alle veiligheidsaanwijzingen en instructies. Nalatigheid bij het naleven van de veiligheidsinstructies en aanwijzingen kan elektrische
schok, brand en/of ernstige letsels veroorzaken. Bewaar alle veiligheidsaanwijzingen en instructies voor later gebruik.
Originalbetriebsanleitung
Translation of the original operating manual
Traduction de la notice d'emploi originale
Traduzione delle istruzioni per l'uso originali
Originele gebruiksaanwijzing
Manual de instrucciones original
Alkuperäiskäyttöohje
Originalbruksanvisning
Original driftsvejledning
Оригинальное руководство по эксплуатации
Tłumaczenie oryginalnej instrukcji obsługi
Původní provozní návod
Izvirna navodila za uporabo
6
14
22
30
38
46
54
62
70
78
87
95
103
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mafell KF 1000
Summary of Contents for Mafell KF 1000

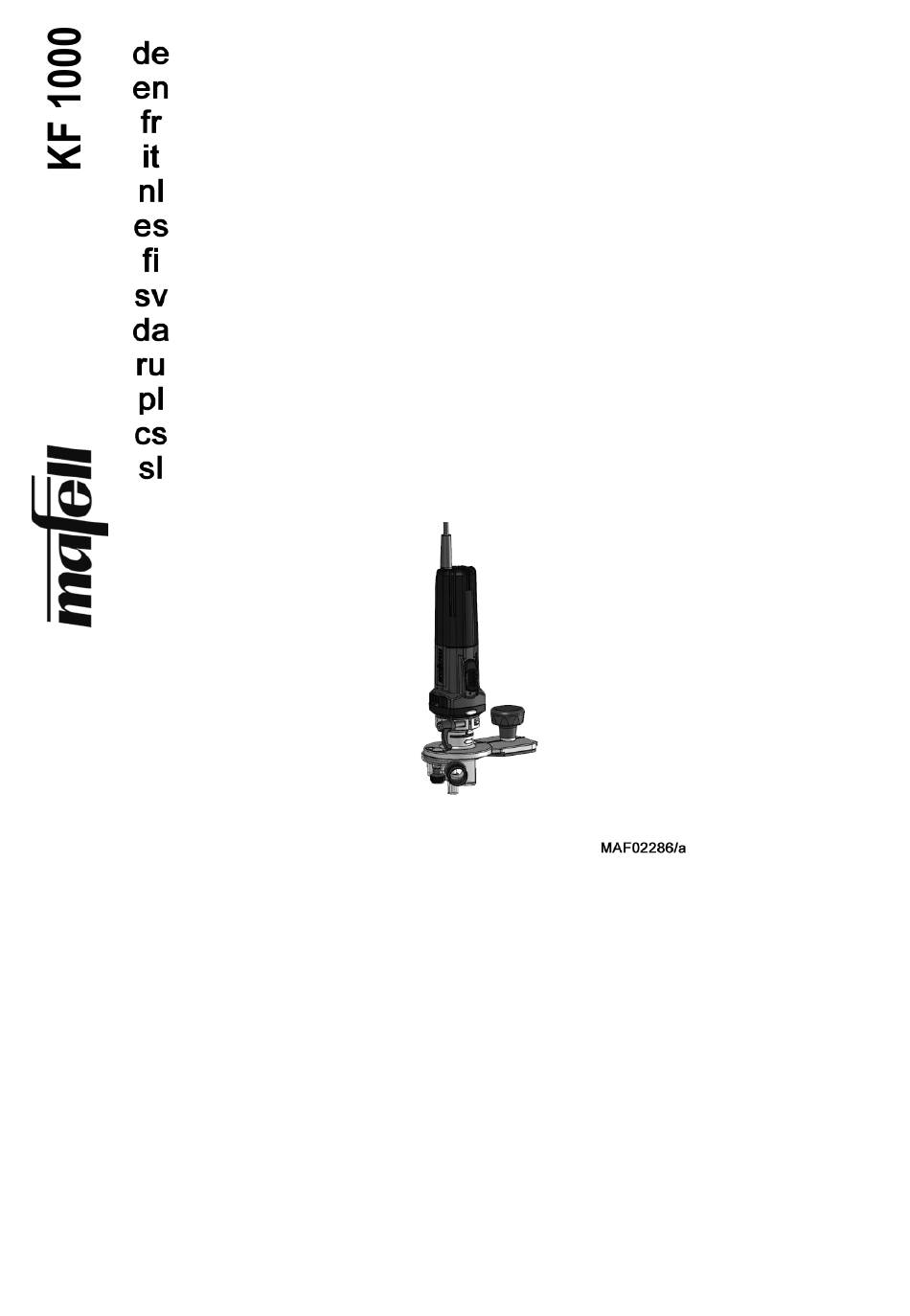

- Page 1 170645.0220/a Kantenfräse Originalbetriebsanleitung Edge cutter Translation of the original operating manual Affleureuse Traduction de la notice d'emploi originale Fresatrice per bordi Traduzione delle istruzioni per l'uso originali Kantfreesmachine Originele gebruiksaanwijzing Fresa de cantos Manual de instrucciones original Kulmajyrsin Alkuperäiskäyttöohje Kantfräs Originalbruksanvisning Kantfræser Original driftsvejledning...
- Page 2 ADVERTENCIA Lea todas las indicaciones de seguridad e instrucciones. Si no se cumplen las indicacionesde seguridad e instrucciones, se pueden producir descargas eléctricas, incendios y/o lesiones graves. Guarde todas las indicaciones de seguridad e instrucciones para el futuro. VAROITUS Lue kaikki turvaohjeet ja käyttöohjeet. Laiminlyönti turvaohjeiden ja käyttöohjeiden noudattamisessa voi aiheuttaa sähköiskun, tulipalon ja/tai vakavia vammoja.
- Page 4 KF 1000 4.000 min 7.500 min 12.000 min 16.000 min 21.000 min 25.000 min...
-
Page 6: Table Of Contents
English Table of Contents Signs and symbols ......................15 Product information ......................15 Manufacturer´s data ....................... 15 Machine identification ..................... 15 Technical data ........................ 16 Emissions ........................16 Scope of supply ......................16 Use according to intended purpose ................16 Residual risks ......................... -
Page 7: Signs And Symbols
Product information in respect of machines with item number 91C501, 91C520, 91C521 2.1 Manufacturer´s data MAFELL AG, Beffendorfer Straße 4, D-78727 Oberndorf / Neckar, Phone +49 (0)7423/812-0, Fax +49 (0)7423/812-218 2.2 Machine identification All details required for machine identification are available on the attached rating plate. -
Page 8: Technical Data
2.3 Technical data Universal motor, radio and TV 230 V~, 50 Hz interference suppressed Power input (nominal load) 1000 W Current at nominal load 4.6 A Idling speed 4,000 - 25,000 rpm Tool holding fixture with collet ø 8 mm (0 5/16 in.) Tool shank maximum 8 mm (0 5/16 in.) Tool shank minimum... -
Page 9: Residual Risks
- Never work without the protection devices stipulated for the respective operating sequence and do not effect any modifications on the machine that could impair safety. - Damaged cables or plugs must be immediately replaced. Replacement may only be carried out by Mafell or an authorised MAFELL service workshop in order to avoid safety hazards. -
Page 10: Setting / Adjustment
Instructions on service and maintenance: - Regular cleaning of the power tool is an important safety factor. - Only original MAFELL spare parts and accessories may be used. Otherwise, the manufacturer will not accept any warranty claims and cannot be held liable. -
Page 11: Operation
Check the tool’s seat. Spindle 1 is locked when the tool is clamped. Tighten union nut 3 with the open-ended spanner Operation 5.1 Initial operation Personnel entrusted to work with the power tool must be made aware of the operating manual, calling particular attention to the chapter “Safety instructions”. -
Page 12: Collets
9. The ball bearings used are greased for life. When the machine has been in operation for a longer period of time, we recommend to hand the machine in at an authorised MAFELL customer service shop for inspection. 6.1 Storage If the power tool is not used for a longer period of time, it has to be carefully cleaned. -
Page 13: Optional Accessories
- Collet adapter incl. union nut Order No. 207943 - Face-milling cutter ø 19 mm Order No. 090282 Exploded drawing and spare parts list The corresponding information in respect of spare parts can be found on our homepage: www.mafell.com -21-...
