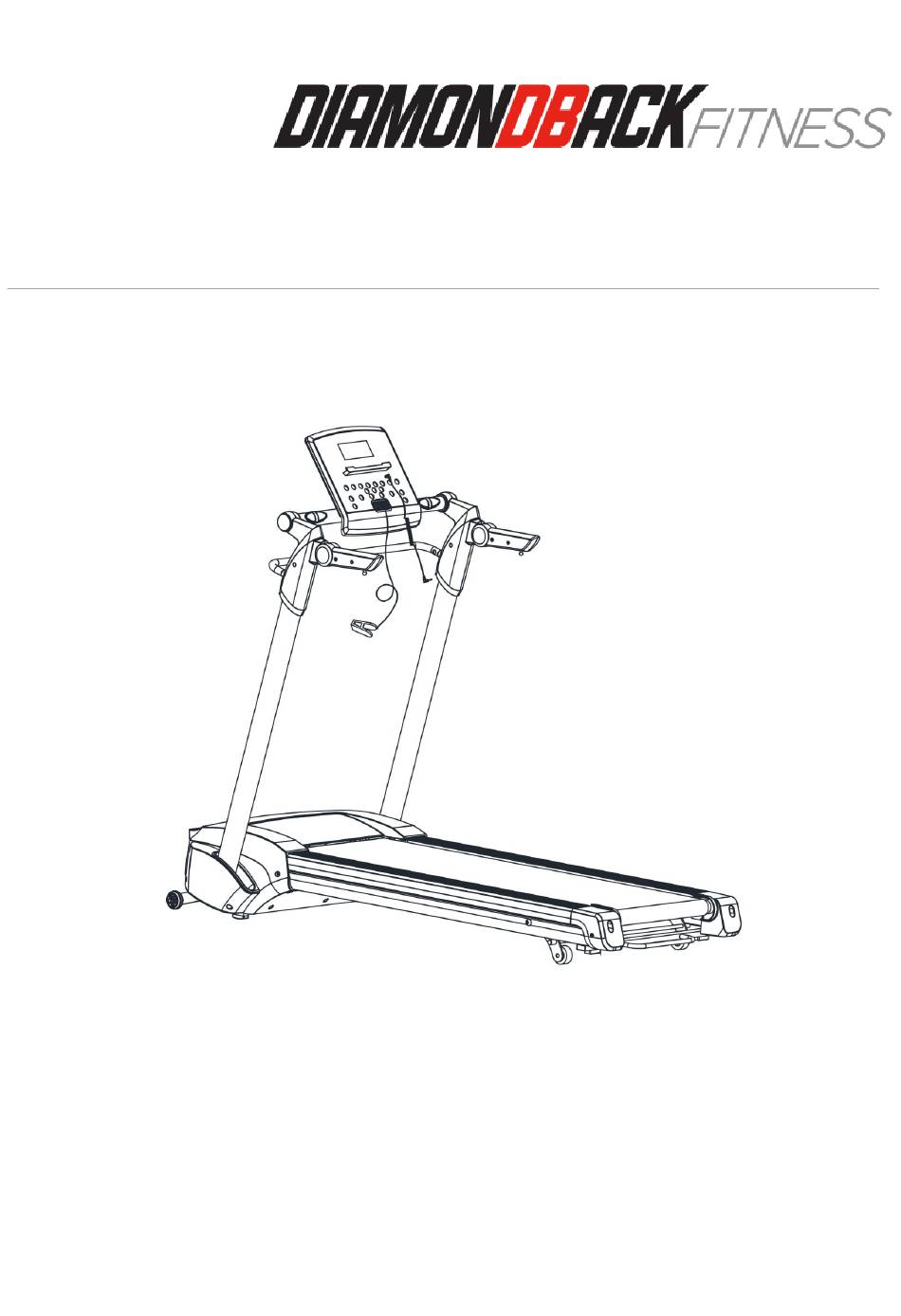

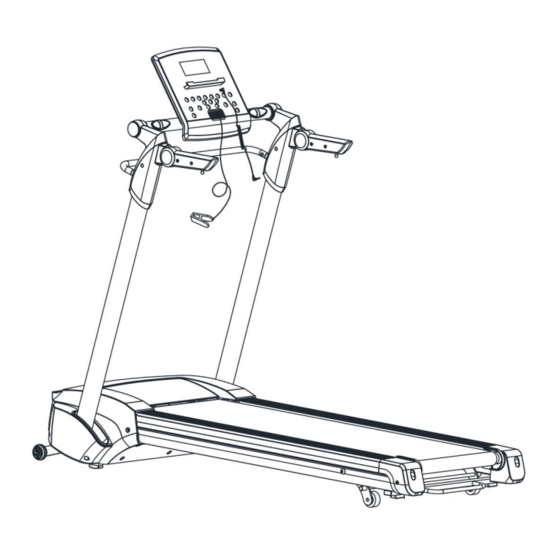

- Page 1 510T Treadmill1111111111111111111111111111111111 Operating Instruction Manual Special tips: 1. Before installation and operation, please read this operation manual carefully. 2. Please save this manual for future reference. 3. Product may vary slightly from the item pictured due to model upgrades.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this treadmill. It is important your treadmill receives regular maintenance to prolong its working life. Failing to regularly maintain your treadmill may void your warranty. Danger–To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/or service work. -
Page 3: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING! 1) NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. 2) NEVER operate treadmill on a Generator or UPS power supply. 3) NEVER remove any cover without first disconnecting AC power. -
Page 4: Safety Information
、 Safety Information Important – Please read fully before assembly or use This exercise equipment is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble, operate or use this equipment. - Page 5 35 or persons with pre-existing health problems. You MUST read all instructions before using any fitness equipment. Diamondback Fitness and its associates assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
-
Page 6: Components - Parts
Components - Parts Please check you have all parts listed below Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully before contacting us regarding any missing components. Lubrication Oil x 2 Main Frame x 1 Power Cord x 1 MP3 Connection x 1 Safety Key x 1... - Page 7 Assembly Instructions Total mass of the product is 115lbs. Total size of the equipment is (width) 66.3” × (depth) 30” × (height) 11.4”. Incline Adjustment Frame...
- Page 8 Assembly Instructions Step 1 Unbox the outer carton and take out the main frame. Grasp the console rod with one hand, and pull the lifting bar with another hand to the direction of the arrow as shown in the diagram.
- Page 9 Assembly Instructions Step 2 Grasp the lifting bar and pull to the direction as shown in the diagram.
- Page 10 Assembly Instructions Step 3 When the console masts are folded in place, please loosen the lifting bar. Then fold the console housing and handrail in place as shown in the diagram. Notes: the handle can be folded only after pulling the ball pin on the end of the handle...
-
Page 11: Workout Area
Workout Area The free area must be at least 2 feet greater than the training area. This is a space where you can safely dismount, without obstruction, in case of an emergency. Where two pieces of equipment are positioned adjacent to each other the free area may be shared. The free area behind the treadmill should be 6 feet in length and double the width of the product. -
Page 12: Exercise Information
Exercise Information Before Starting Tailor your exercise program according to your physical condition. If you have been inactive for several years, or are overweight, you must start slowly and increase your time on the equipment; a few minutes per workout increase is advisable. Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic fitness will improve over the next six to eight weeks. - Page 13 Exercise Information Muscle Chart Aerobic Exercise Aerobic exercise improves the fitness of your lungs and heart - your body’s most important muscle. Aerobic exercise is promoted by any activity that uses your large muscles (arms, legs, or buttock, for example). Weight Training Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store, weight training is an essential part of an exercise routine.
-
Page 14: Hamstring Stretch
Exercise Information Warming up and Cooling down Each workout should include the following three parts: 1. A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise. 2. - Page 15 Exercise Information Calf/Achilles stretch With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall.
-
Page 16: Getting Started
Exercise Information Getting Started main Plug your fitness equipment into the power and turn on the switch (1). You will hear a beep and the computer screen will light up. OVER-CURRENT PROTECTOR: There is an over-current protector (2) located on the right side of the switch (1) (see above picture); in case of short circuit or over-current, the Button of the over current protector will pop up and the treadmill will power off;... -
Page 17: Safety Key
Exercise Information Getting Started SAFETY KEY: The treadmill will only work if the safety key (104) is properly locked in the provided notch of the console. Insert the safety key (104) and attach the clip to your chest or the waist belt of your clothes. Then move backward to test the safety key. - Page 18 Exercise Information Console Operation A Quick Speed Select B Start C Speed- D PRO. E MODE F Speed+ G Stop...
-
Page 19: Technical Specification
Exercise Information Console Operation TECHNICAL SPECIFICATION Time--------------------------------- 00:00 - 99:59 Min SPEED UP/DOWN Speed------------------------------- 0.0 - 8.0 mph 1. Press the speed+/- to increase/decrease Distance---------------------------- 0.0 - 99.9 mph exercise speed by 0.1mile/h. Calories------------------------------ 0 - 999 Kcal 2. Press the speed+/- to select training time within a workout programme. -
Page 20: Console Operation
Exercise Information Console Operation MPORTANT The console will beep and all console window l The console will turn off automatically displays will function with a start display value of approximately ten minutes after the belt stopped, press any button on the console to Note: If the Safety Key is not placed correctly or is wake it up. -
Page 21: Speed Adjustment
Exercise Information Console Operation l START YOUR TREADMILL WORKOUT MODEL Turn on the treadmill, and press the “Start” button Turn on the treadmill, press the “MODE” key twice on the console. to enter distance count down mode, the initial distance is：1.00 mph Press “Speed +”... - Page 22 Exercise Information Console Operation Program Workout Model (P01—P10) workout time (the range is: 5:00---99:00 l In this mode, the user has a choice of minutes). Program P01 – Program P10. Press “Start” and the treadmill will count down Press the “Pro.” button once, the “Distance” from three before commencing the workout.
- Page 23 Exercise Information Console Operation BODY FAT ANALYSIS l When entering F-5 interface, grasp the handle l On standby status, press PROG. Button and pulse sensor for 5 minutes, it will display your select FAT to enter body constitution index body constitution value, from it may view detection function, and SPEED window displays whether your weight and height is matched.
- Page 24 Exercise Information Folding Mechanism and Locking System l When you need to pack away the treadmill, Follow these steps. Pull both armrest pins towards you (Located under the handrails), Then fold armrest handles upwards. Hold handrail bar with one hand and pull the level bar up with another hand. Allow the handrail bar to slowly fold down to the treadmill.
-
Page 25: Care And Maintenance
Care and Maintenance The safety level of the Inspect and tighten all parts Do not attempt to repair equipment can only be before using the equipment. this equipment yourself. maintained if it is examined Replace defective Should you have any difficulty regularly for damage and wear components immediately with assembly, operation or... -
Page 26: Belt Adjustment
Care and Maintenance Belt Adjustment Improper maintenance can cause damage to the STEP 1: Place allen wrench on the left belt treadmill or shorten the life of the product and tension bolt. Turn the wrench clockwise 1/4 turn to exceed the LIMITED WARRANTY coverage. draw the rear roller and increase the belt tension. - Page 27 Care and Maintenance Motor Belt Tension Adjustment When you need to adjust the degree of tightness of motor belt, please open the cover of the motor firstly. During your workout, if you find the running belt is not running smoothly, that means the motor belt is loosing, please follow the below steps to adjust the motor belt tension: 1.
-
Page 28: Deck Lubrication
Care and Maintenance Deck Lubrication The treadmill is pre-lubricated. However, it is CLEANING recommended to check the lubrication of the Regular cleaning of the belt ensures a long treadmill regularly, to ensure optimal operation. product life. l Warning: The treadmill must be turned off to After every 2 months of operation, lift the sides of avoid electric shocks. -
Page 29: Troubleshooting
Care and Maintenance Trouble Shooting Symptom Cause and Check Solution Safety Key not in the position Re-locate the safety key in the correct position No signal to Controller from A: Check the Main Controller Wire console B: Replace the PCB Board A: Check the wire from motor to controller B: IGBT breakdown, Replace the controller Motor communication error... -
Page 30: Exploded Parts Diagram
Exploded Parts Diagram... -
Page 31: Parts List
Parts List Part # Description QTY Part # Description Handrail Bar M8 Nut Left Console Mast M3 Nut Handle M5 Hex Nut Connector M6 Aircraft Nut Right Console Mast M8 Aircraft Nut Running Stage M12 Aircraft Nut Motor Support M5 Aircraft Nut Base Frame M10 Aircraft Nut Spring Rod... - Page 32 M3 x 12mm Sunk Bolt Running Deck M6 x 27mm Allen Bolt Running Belt M8 x 40mm Allen Bolt Motor Belt M6 x 15mm Allen Bolt Side Rail M10 x 40mm Allen Bolt LCD Screen M8 x 25mm Allen Bolt PCB Board M4 x 10mm Phillips Bolt MP3 Module...
