Summary of Contents for Shark TRS-6000

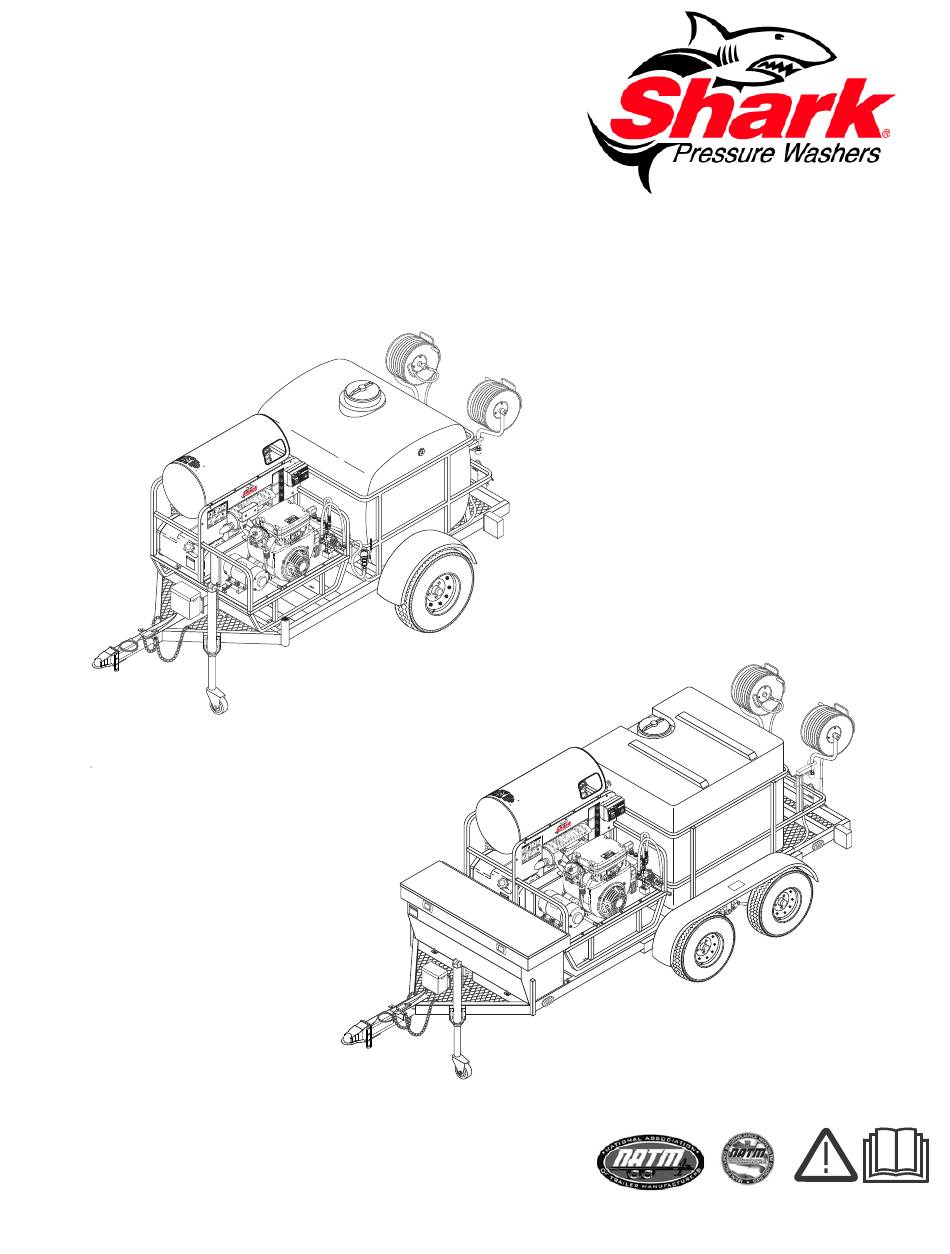

- Page 1 TRAILER Operator’s Manual MODELS: TRS-3500-C 1.103-826.0 TRS-6000 1.103-827.0 To locate your local Shark Commercial Pressure Washer Dealer nearest you, visit www.sharkpw.com 9.801-320.0-B 11/28/16...
-
Page 2: Model And Serial Numbers
WARNING: This Owner's Manual contains safety information and instructions for your trailer. You must read this manual before loading or towing your trailer. You must follow all safety precautions and instructions. 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 3: Table Of Contents
Component Identification - TRS-3500-C..16 Component Identification - TRS-6000... 17 Trailer Options & Accessories....18... -
Page 4: I M Port A Nt T Ra Ile R Sa Fe T Y I Nform A T Ion
Add the missing pounds of air pressure to each tire that • Recommended tire size. is under inflated. • Recommended tire inflation pressure. Check all tires to make sure they have the same air pressure. 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 5: Never Tow The Trailer Before Checking
Tires are properly inflated and are road worthy. duty flasher may be required to make your turn signals • All trailer lighting is working properly. function properly. • Tire pressure and tire condition • Wheel lugs* 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 6: Trailer Ball & Couplers
Repeat the above steps. two sets of holes in the mounting bracket. Insert two (2) 5/8”x4.5”, grade 5 bolts through desired mounting 5. OPTIONAL: Place a 5/16” pin or lock in hole shown 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 7: Hitch Coupler Troubleshooting
Improper engagement of the coupler and ball can cause damage if the vehicles separate in transit, thus, caution must be exercised to insure a secure hook-up. 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 8: Load-Carrying Capacity
GVWR of the trailer less the empty weight of the trailer because there may be another controlling factor such as frame strength that reduces the carrying capacity to what is listed on the VIN tag. 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 9: Proper Weight Distribution & Tongue Weight
2. Know how to stop the machine and bleed pressure quickly. Be thoroughly familiar with the controls. 3. Stay alert-watch what you are doing. 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 10: Wha T T O Che C K A Nd H Ow T O Che C K
4. Wheel nuts/bolts should be torqued before first road use and after each wheel removal. Check and re-torque after the first 10 miles, 25 miles and again at 50 miles. Check periodically thereafter. 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 11: Ball Coupler Hitches
Out of molded into the tire sidewall divided by 1.10. Cupping adjustment and bal- balance ance tires. Avoid sudden stops Wheel lockup & Flat Spots when possible and tire skidding adjust brakes. 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 12: M A Int E Na Nc E
4. Replace pin and secure to tow vehicle. Do not loop over hitch ball. Breakaway Battery on A-Frame Breakaway Battery Power Cable (Two fill caps underneath cover) Breakaway Switch Cable to Vehicle Breakaway Safety Pin 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 13: Brake Adjustment
6. Repeat above procedure on all brakes. CAUTION: Never crawl under your trailer unless it is resting on properly placed jack stands. Do not lift or place supports on any part of the suspen- sion system. 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 14: Trailer Storage
8. Inspect oil or grease seals for wear or nicks. Replace if necessary. 9. Lubricate hub bearings. Refer to procedure in manual. 10. Reinstall hubs and adjust bearing per instructions in manual. 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 15: Preventative Maintenance
Maintenance for axles, hubs and brakes is extremely important for protecting the longevity of your trailer. It is extremely important for your personal safety and the protection of others. Follow the maintenance schedule exactly as described. Please, never shortcut axle, hub and brake service and maintenance. 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 16: Component Identification - Trs-3500-C
M a int e na nc e Component Identification - TRS-3500-C Pressure Hose Reel Water Tank Garden Hose (Inlet) Reel Pressure Washer (Optional) Trailer Jack 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 17: Component Identification - Trs-6000
M a int e na nc e Component Identification - TRS-6000 Pressure Hose Reel Water Tank Garden Hose (Inlet) Reel Pressure Washer (Optional) Trailer Jack Fuel Tank and Tool Box (option) 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... -
Page 18: Trailer Options & Accessories
8.902-465.0 Kit, Fuel & Tool, 24 Gal Tank TRS-6000 8.707-521.0 Kit, Fuel & Tool Box Only, 50 Gal. Tank TRS-6000 8.707-522.0 Kit, Fuel & Tool Box, 24 Gal. Tank TRS-6000 98013200-8 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000... - Page 19 TRS-6000 Tandem Axle (per pair) Upgrade to Chrome Fender Assy., TRS-3500 8.902-467.0 Single Axle (per pair) All Models Chrome Wheel with ST205/75R14/C 8.707-493.0 Tire (each) Signage 8.902-469.0 Signage Plate All Models 9.801-320.0 Operator’s Manual, Trailer - Shark TRS-3500-C and 6000...
- Page 20 www.sharkpw.com 9.801-320.0 • Printed in U.S.A. or Mexico...
