LAUNCH
 
/
Memory card
5
slot
6 Mini USB port
ER(F2)
7
I/M(F3)
8
9
(F4)
OK
10

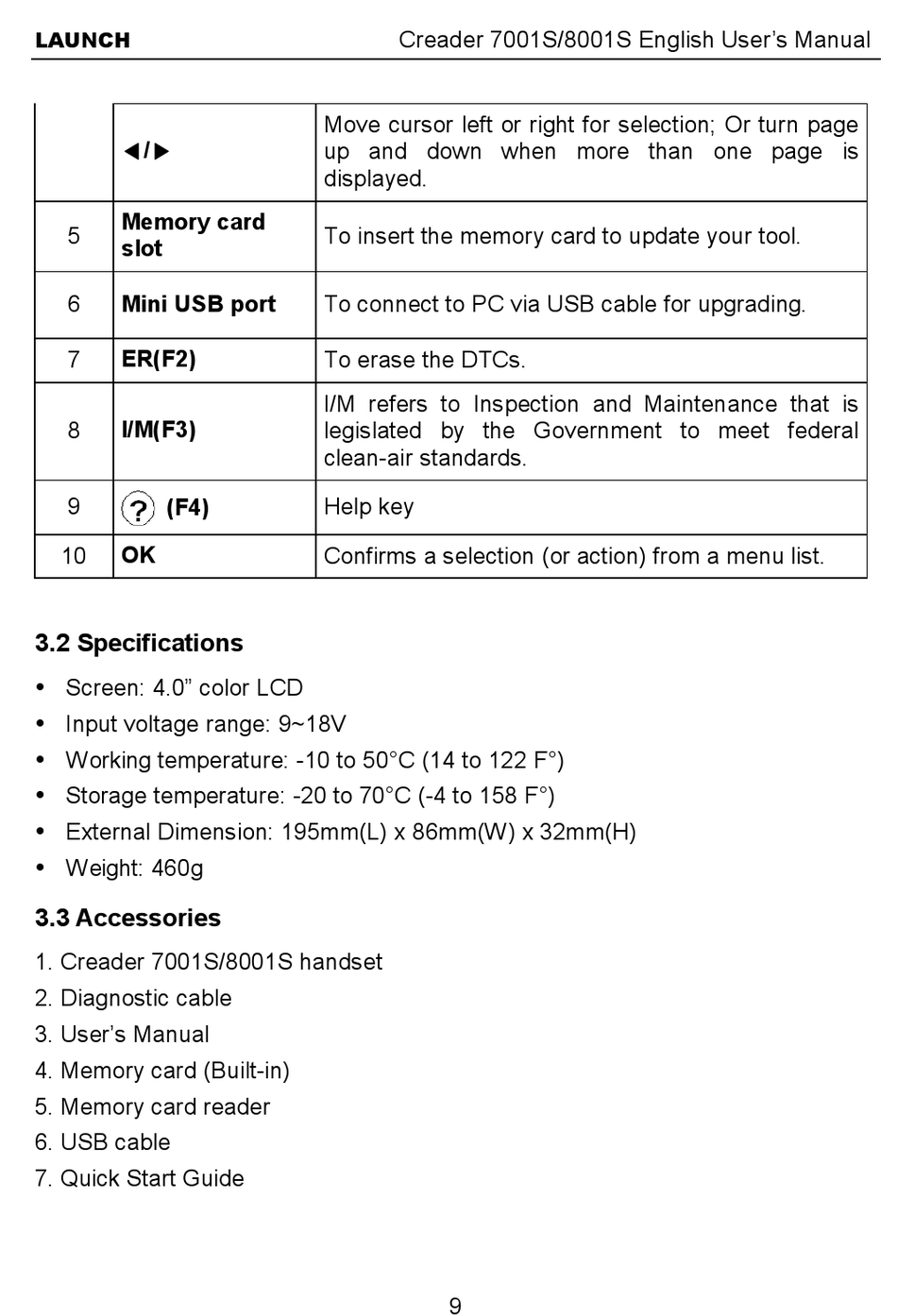

3.2 Specifications

 Screen: 4.0" color LCD
 Input voltage range: 9~18V
 Working temperature: -10 to 50°C (14 to 122 F°)
 Storage temperature: -20 to 70°C (-4 to 158 F°)
 External Dimension: 195mm(L) x 86mm(W) x 32mm(H)
 Weight: 460g

3.3 Accessories

1. Creader 7001S/8001S handset
2. Diagnostic cable
3. User's Manual
4. Memory card (Built-in)
5. Memory card reader
6. USB cable
7. Quick Start Guide
Creader 7001S/8001S English User's Manual
Move cursor left or right for selection; Or turn page
up and down when more than one page is
displayed.
To insert the memory card to update your tool.
To connect to PC via USB cable for upgrading.
To erase the DTCs.
I/M refers to Inspection and Maintenance that is
legislated by the Government to meet federal
clean-air standards.
Help key
Confirms a selection (or action) from a menu list.
9
