EMS
TM
Unpack the Techni-IV Pole
1. Inspect the shipping box(es) for signs of damages, before accepting shipment. Take pictures and report
them promptly if applicable.
2. Move the shipping box(es) to the location of the installation.
3. Open the shipping box(es).
4. Unpack the box(es) and ensure that all shipping and packaging materials have been properly removed,
prior to installation.
NOTE: Keep all packaging material for future use.
5. Identify all the components and hardware included for the installation, then set aside. Refer to the "Safety
Measures" section for details.
6. Inspect the items for signs of damages. Take pictures and report them promptly if applicable.
© 2023 Technimount E.M.S. Holding Inc.
Intended Use
This procedure is used to help EMS personnel effectively
install the Techni-IV Pole and its strap on a Technimount
Xtension Pro™ Assistant CCT/ECMO mobile structure.
Product and medical device manufacturer names
are Trademarks™ or Registered Trademarks
respective holders.
Image references within this document may differ from
actual product. For more information or to ensure product
options and availability, please contact Technical Support
at techsupport@technimount.com.
Technimount E.M.S. Holding Inc.
C/O: Regulatory Affairs
3770 Jean Marchand Street, Suite 100-C
Quebec (QC) G2C 1Y6
Canada
www.technimount.com
T + 1 581.700.6613
TF + 1 888.639.2758 (North America)

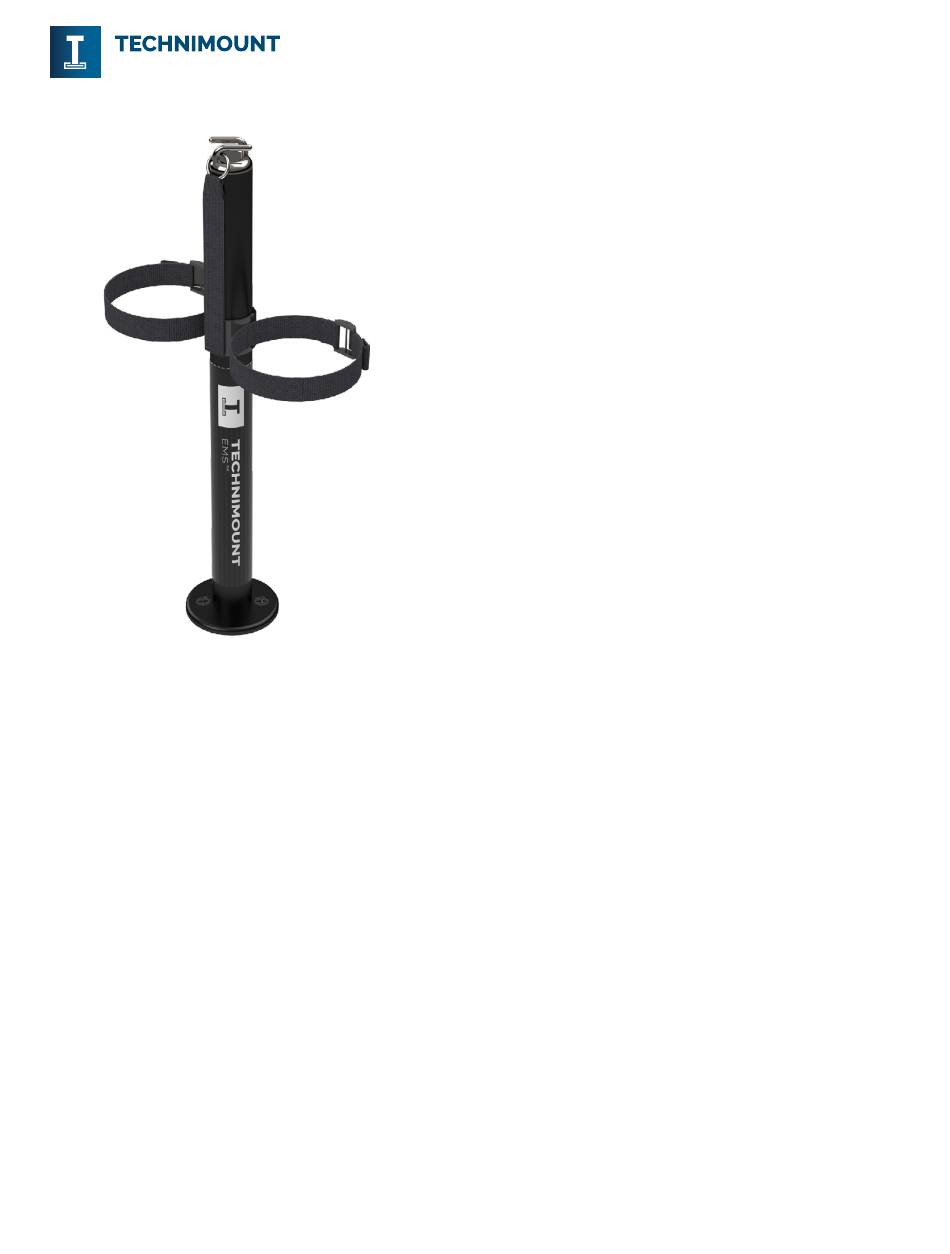

TECHNI-IV POLE
Quick Installation
of their
®
QI-TIVP-202305EN-01 | Page 1 of 5
Advertisement
Related Manuals for TECHNIMOUNT EMS TECHNI-IV POLE
Summary of Contents for TECHNIMOUNT EMS TECHNI-IV POLE
- Page 1 Quick Installation Intended Use This procedure is used to help EMS personnel effectively install the Techni-IV Pole and its strap on a Technimount Xtension Pro™ Assistant CCT/ECMO mobile structure. Product and medical device manufacturer names are Trademarks™ or Registered Trademarks of their ®...
- Page 2 Installation, operation, and maintenance should only be performed by trained personnel. - Improper use of the Technimount product may damage the device or cause injury to the patients or EMS personnel.
- Page 3 4. Washers (2X) 2. Strap 5. Nylon-insert locknuts ¼ - 20 3. Flat head Philips drive screws (2X) ¼ - 20 X 1 in. (2X) Figure 2: Techni-IV Pole parts © 2023 Technimount E.M.S. Holding Inc. QI-TIVP-202305EN-01 | Page 3 of 5...
- Page 4 5. Hook the eyelet at the end of the strap into one of hooks located at the top of the Techni-IV Pole to install (Figure 4 B). Figure 4: Strap installation © 2023 Technimount E.M.S. Holding Inc. QI-TIVP-202305EN-01 | Page 4 of 5...
- Page 5 The installation of the Techni-IV Pole and its strap on the Xtension Pro™ Assistant CCT/ECMO mobile structure is complete (Figure 5). Figure 5: Techni-IV Pole installed on the Xtension Pro™ Assistant CCT/ECMO mobile structure © 2023 Technimount E.M.S. Holding Inc. QI-TIVP-202305EN-01 | Page 5 of 5...
