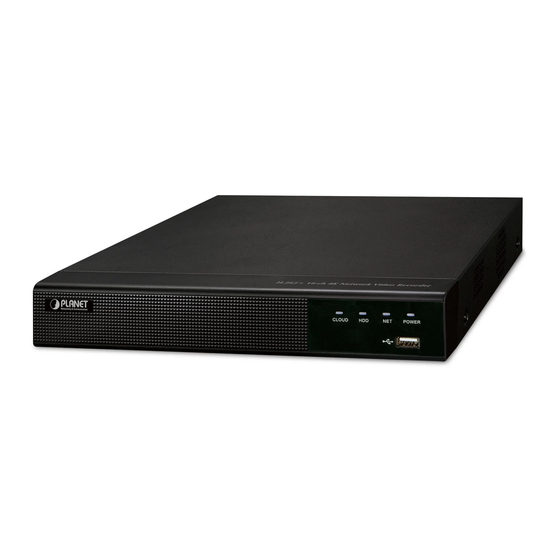

- Page 1 H.265+ 16-ch 4K Network Video Recorder NVR-1600 Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ................. 3 2. Hard Disk Installation ................4 3. Requirements ..................5 4. Starting Web Management ..............6 4.1 Logging in to the NVR-1600............7 5. Customer Support ................9... -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET H.265+ 16-ch 4K Network Video Recorder, NVR-1600. Open the box of the NVR-1600 and carefully unpack it. The box should contain the following items: z The NVR-1600 x 1 z QR Code Sheet x 1... -
Page 4: Hard Disk Installation
2. Hard Disk Installation The hard disk is installed as shown in Figure 2-1. (1) Unscrew the cover to open the cover. (2) Connect one end of the hard disk data cable and power cable to the moth- erboard, and connect the other end to the hard disk. (3) Turn over the chassis, mount the hard disk in the indicated position and screw it tightly. -
Page 5: Requirements
The above PC is installed with Web browser. It is recommended to use Internet Chrome 98.0.xxx or above to access the NVR-1600. If the Web interface of the NVR-1600 is not accessible, please turn off the anti-virus software or firewall... -
Page 6: Starting Web Management
4. Starting Web Management The following shows how to start up the Web Management of the NVR-1600. Note the NVR-1600 is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. -
Page 7: Logging In To The Nvr-1600
Figure 4-2: PLANET Search Tools Utility Screen 9. Without DHCP server, the NVR-1600 default IP address is 192.168.0.20. Then the manager PC should be set to 192.168.0.x (where x is a number between 1 and 254, except 20), and the default subnet mask is 255.255.255.0. - Page 8 2. After entering the username and password, the main screen appears as Figure 4-4 shows. Figure 4-4: Web Main Screen of NVR-1600 Now, you can use the Web management interface to continue the NVR-1600 management. Please refer to the user’s manual for more.
-
Page 9: Customer Support
5. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET support team.
