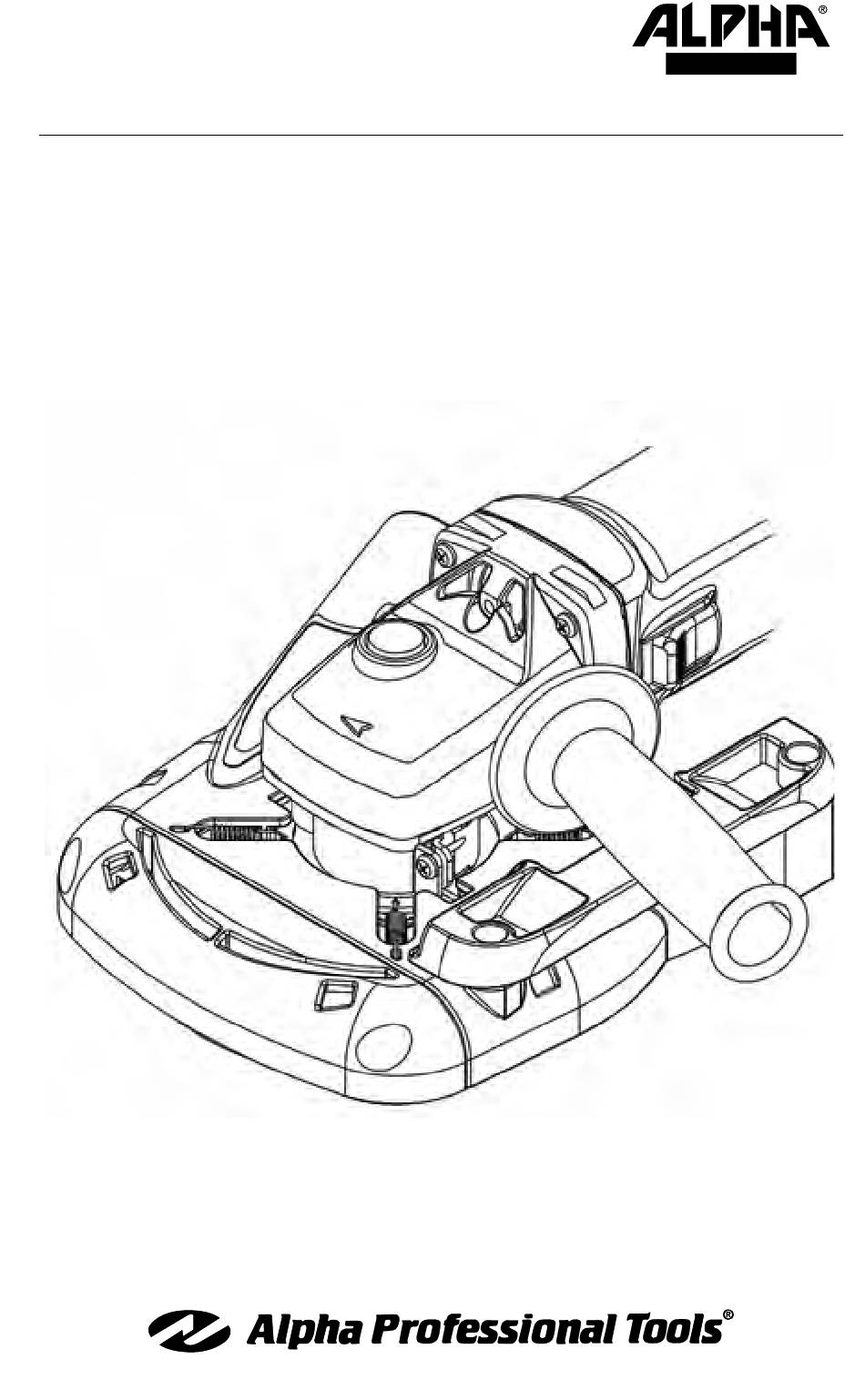

- Page 1 MANUAL Alpha Ecoguard Type G ® Dust Collection Cover Instruction Manual (*Shown with angle grinder / sold separately) Part No: ECOGRDGR Version 3 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.com...
-
Page 2: Table Of Contents
tablE Of CONtENtS Introduction .......................3 about the Symbols ...................3 Ecoguard type G Overview ................4 Contents ....................4 Ecoguard type G Other Connectors and Spacers ...........5 Installing the Dust Collection Cover ..............6 Installing the Connector ................7 Installing the flex Connector ..............8 ® Mounting the Grinding Cup Wheel to the Grinder ..........9 attachable Grinders ..................10 Grinding applications .................. -
Page 3: Introduction
INtRODuCtION thank you for purchasing the alpha Ecoguard type G Dust Collection Cover. the ® Ecoguard type G must be used with a vacuum, or other dust collection system. to ensure correct use, read this Instruction Manual and the Instruction Manual for the power tool and follow the operating instructions. -
Page 4: Ecoguard Type G Overview
ECOGuaRD tyPE G OVERVIEW (Optional / Sold Separately) CONtENtS: 1. Connectors: a. Makita , Milwaukee & bosch : Preset to Ecoguard G ® ® ® b. hitachi ® c. bosch / Metabo ® ® d. flex ® e. Dewalt ®... -
Page 5: Ecoguard Type G Other Connectors And Spacers
ECOGuaRD tyPE G SPaCERS aND CONNECtORS MaKIta /MIlWauKEE /bOSCh hItaChI ® ® ® ® DEWalt bOSCh / MEtabO ® ® ® flEX ®... -
Page 6: Installing The Dust Collection Cover
INStallING thE DuSt COllECtION COVER WaRNING! 1. be sure to turn off the high-speed angle grinder and remove the plug from the electrical outlet before attaching and installing the Dust Collection Cover. 2. take the Guard off from the Grinder. (fig.1) 3. -
Page 7: Installing The Connector
INStallING thE CONNECtOR If a different Connector is needed, exchange the connector per the following instructions. 1. loosen the Screws. 2. take the front of the Connector assembly off. Connector assembly (front) (fig.2) Ecoguard type G Screw 3. loosen the flat head Screws using the hex Wrench. 4. -
Page 8: Installing The Flex ® Connector
8. tighten the Screws (DO NOt forget to insert Spring Washers) Screw M4x10 (fig.4) CautION! the Dust Collection Cover is solely designed for use with a grinding cup wheel. Do not use with any other type of blade, such as a cutoff or tip saw blades. INStallING thE flEX CONNECtOR ®... -
Page 9: Mounting The Grinding Cup Wheel To The Grinder
MOuNtING thE GRINDING CuP WhEEl tO thE GRINDER WaRNING! Make sure the Ecoguard type G is securely atttached to the grinder, otherwise it may come loose, causing injury. 1. firmly hold Connector assembly and tighten the screws. Connector assembly 2. Set the proper Spacer into the spindle. 3. -
Page 11: Grinding Applications
GRINDING aPPlICatIONS SuRfaCE GRINDING Securely connect the flexible Connector hose to the Dust Collection Cover. turn Grinder and Vacuum on to start grinding application. use the alpha Rubber hose Connector as a joint between duct and flexible ® Connector hose. flexible Connector hose Rubber hose Connector Duct... -
Page 12: Wall Grinding
Wall GRINDING 1. loosen the screws and remove the Sub Cover and half Cover. Screw M4 x 10 half Cover Sub Cover (fig.8) 2. Switch the position of the Sub Cover and half Cover. 3. tighten screws. Sub Cover half Cover (fig.9) -
Page 13: Attaching The Dust Collector
attaChING thE DuSt COllECtOR 1. Securely connect flexible Connector hose to the duct of the grinder, then turn Grinder and Vacuum Cleaner on to start grinding application. 2. use an adapter such as the alpha Rubber hose Connector as a joint between ®... -
Page 14: Ecoguard Type G Schematic
alPha ECOGuaRD tyPE G SChEMatIC ®... -
Page 15: Ecoguard Type G Parts List
alPha ECOGuaRD tyPE G PaRtS lISt ® DRaWING NO. PaRt NO. DESCRIPtION QuaNtIty 500032 Main Cover 500033 Sub Cover 500034 half Cover 500005 Rubber hose adapter 500006 Stainless Steel hose band 500037 Screw M4x10 500038 Set Plate 500039 holder Spring 500020 flat head Screw M4x5 500028... - Page 16 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.com Copyright © 2016 Alpha Professional Tools. All rights reserved. 01/2016...
