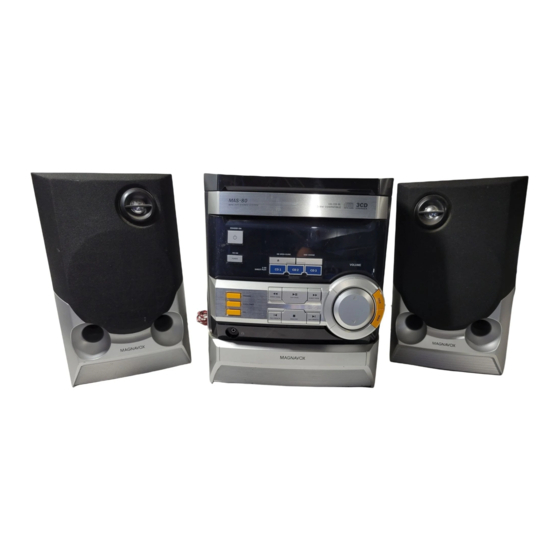

Magnavox MAS-80 Quick Use Manual

MAC80QUG 7/24/03 3:23 AM
Quick Use
Quick Use
Guide
Guide
T
o connect your MAS-80 Mini Hi-Fi system
follow these steps:
1

Antenna Connections

a. Connect the supplied AM loop antenna to the AM ANTENNA jacks.
b. Connect the supplied FM antenna to the FM ANTENNA jacks.
c. Adjust the antennas for optimal reception.
2

Speaker Connections

a. Connect the Right speaker wires to the "R" jacks. Connect the Red wire to the "+" jack and the black wire to the "-"
jack.
b. Connect the Left speaker wires to the "L" jacks. Connect the Red wire to the "+"
jack and the black wire to the "-" jack.
3
Final Preparations
a. Insert two (2) AA batteries into the remote control. Besure to line up the polarity, + to + and - to -.
b. Plug the AC power cord into an outlet.
Page 1
Use this simple and quick guide to get started
listening to your favorite music.
AM loop
antenna
speaker
(right)
3
AC power cord
FM wire antenna
1a
+ +
R – – L
2
See the other side for some important tips.
1b
speaker
(left)
