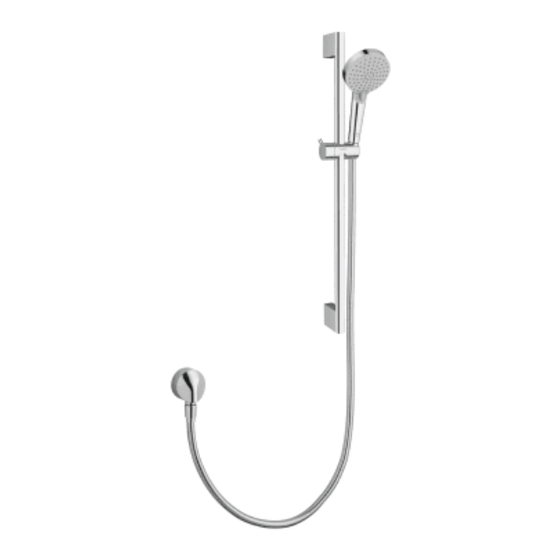

- Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Vernis Blend Vario Wallbar Set 04969XX0 04970XX0 04971XX0...
-
Page 2: Technical Information
English Technical Information Flow rate 04969XX0 2.5 GPM (9.5 L/min) 04970XX0 1.75 GPM (6.6 L/min) 04971XX0 1.5 GPM (5.7 L/min) Installation Considerations • 04969XX0, 04970XX0, 04971XX0: The • For best results, Hansgrohe recommends that this unit be installed by a licensed, professional screws and anchors included with this set are suitable for use in a tile or other solid surface plumber. -
Page 3: Données Techniques
Français Données techniques Capacité nominale 04969XX0 2.5 GPM (9.5 L/min) 04970XX0 1.75 GPM (6.6 L/min) 04971XX0 1.5 GPM (5.7 L/min) À prendre en considération pour l’installation • 04969XX0, 04970XX0, 04971XX0: Les • Pour de meilleurs résultats, Hansgrohe recommande que ce produit soit installé par un plombier vis et chevilles comprises dans cet ensemble conviennent pour une utilisation sur mur carrelé... -
Page 4: Datos Tecnicos
Español Datos tecnicos Caudal máximo 04969XX0 2.5 GPM (9.5 L/min) 04970XX0 1.75 GPM (6.6 L/min) 04971XX0 1.5 GPM (5.7 L/min) Consideraciones para la instalación • 04969XX0, 04970XX0, 04971XX0: Los • Para obtener mejores resultados, la instalación debe estar a cargo de un plomero profesional tornillos y pernos de anclaje incluidos en este juego son aptos para utilizar en azulejos u otra superficie matriculado. - Page 5 Vernis Blend Vario Wallbar Set Vernis Blend Vario Handshower 04969XX0 26270XX1 04970XX0 26340XX1 04971XX0 26090XX1 max. 11⅛" (284 mm) ⅞" (22 mm) FixFit Wall Outlet with Check Valves Ø⅞" 27458XX3 (22 mm) G ½ 1½" (39 mm) Tools Required / Outils Requis / Herramientas Útiles ¼"...
-
Page 6: Installation / Installation / Instalación
Installation / Installation / Instalación 27458XX3 Install a NPT ½" male threaded nipple, extending ⅝" - ⅞" (16 - 22 mm) outside the surface of the fin- ished wall. Installez un raccord fileté NPT de ½ po (non fourni) ⅝" - ⅞" suffisamment long pour qu’une partie de ⅝... - Page 7 Push the support element over the nipple. Install the elbow. Installez le soporte. Installez le coude. Instale el soporto. Instale el codo. Install the cover. Installez la couverture. Instale la cobertura.
- Page 8 Installation / Installation / Instalación Place the bar against the wall at the desired mount- ing location. Make sure that it is level. Mark the positions of the screw holes. Placez la barre murale sur l’emplacement souhaité. Assurez-vous qu’il est de niveau. Marquez les positions des trous de vissage.
- Page 9 Install the anchors. Seal the wall around the anchors with waterproof sealant. Failure to seal the wall can lead to pos- sible water damage. Install the wallbar using the screws. Installez les chevilles. Scellez le mur autour des chevilles à l’aide d’un agent d’étanchéité. Si le mur n’est pas scellé, l’eau pourrait éventuellement causer des dommages.
- Page 10 Place a black rubber washer in the short end of the handshower hose. Connect this end to the wall supply. Place a second washer in the long end of the hose. Connect this end to the handshower. Rest the handshower in the holder. Placez une rondelle en caoutchouc noir dans l’une des extrémités du tuyau de douchette.
- Page 11 Replacement Parts / Pièces détachées / Repuestos Vernis Blend Vario Wallbar Set 04969XX0 04970XX0 04971XX0 97709XX0 Vernis Blend Vario 26270XX1 96275000 26340XX1 26090XX1 97651XX0 94246000 98058000 28276XX3 FixFit Wall Outlet with Check Valves 27458XX3 96179000 98557000 98531001 97454XX0 94074000 XX = Colors / Couleurs / Acabados 00 = Chrome 67 = Matte Black 82 = Brushed Nickel...
- Page 12 User Instructions / Instructions de service / Manejo Rain Intense Rain 15° 55°...
- Page 13 Cleaning / Nettoyage / Limpieza QUICK Just clean: simply rub over the spray nozzles to CLEAN remove lime scale. La propreté en toute simplicité: les dépôts formés sur les buses élastiques en silicone s’éliminent par un simple passage de la main. Fácil aseo: La cal se puede retirar sencillamente frotando con los dedos de las toberas elásticas de silicona.
- Page 14 > 1 min. Check valve maintenance / Entretien de les clapets anti-retour/ Mantenimiento de las válvulas antirretornos...
- Page 15 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it.
-
Page 16: Para Obtener Mejores Resultados
Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation. •... - Page 19 Hansgrohe, Inc. Limited Warranty Offering our customers the highest quality at all times is a funda- • abuse, neglect or improper or incorrectly performed mental part of the Hansgrohe, Inc. company philosophy. We of- installation, maintenance or repair, including the use of fer consumers a limited warranty on our hansgrohe and AXOR abrasive or caustic cleaning agents or “no-rinse”...
- Page 20 TEAR, OUTDOOR USE, MISUSE (INCLUDING USE OF THE This warranty gives you specific legal rights, and you may also PRODUCT FOR AN UNINTENDED APPLICATION), FREEZING have other rights which vary from state to state. WATER, EXCESSIVE WATER PRESSURE, PIPE CORROSION IN PRODUCT I NSTRUC TIONS A ND QUE STIONS THE HOME IN WHICH THE PRODUCT IS INSTALLED, ABUSE, NEGLECT OR IMPROPER OR INCORRECTLY PERFORMED...
