Summary of Contents for Grundig GTP 7923 CEW

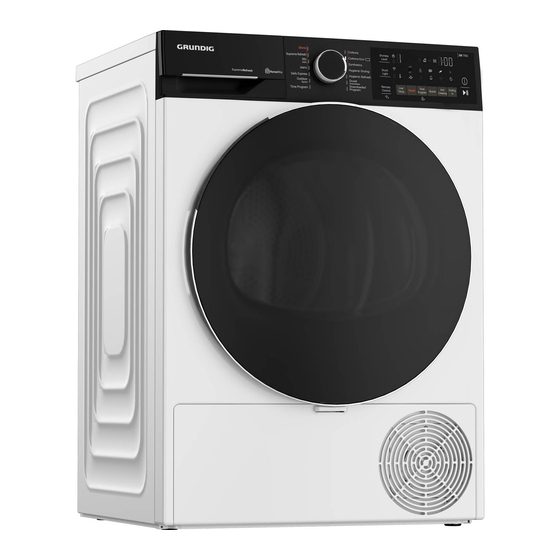

- Page 1 Dryer User Manual GTP 7923 CEW GTPE 79E23 EW 2960313046_EN/050721.0909...
- Page 2 Dear Customer, Please read this guide prior to use this product! Thank you for choosing Grundig product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology.
-
Page 3: Table Of Contents
1 Safety Instructions .................. 5 1.1 Intended use ......................5 1.2 Safety of children, vulnerable persons and pets ............5 1.3 Electrical Safety ....................6 1.4 Transporting safety ....................6 1.5 Installing safety .....................7 1.6 Usage safety ......................8 1.7 Maintenance and cleaning safety ................10 1.8 Lighting safety ....................10 1.9 Steam program safety ..................10 2 Environmental instructions.............. - Page 4 6.6 Warning indicators ....................23 6.7 Starting the program ...................24 6.8 Child Lock ......................24 6.9 Changing the program after it is started ..............24 6.10 Cancelling the program ..................25 6.11 End of program ....................25 6.12 Odour feature ....................25 6.13 General Description of Steam Programs ............25 6.14 HomeWhiz Function ..................26 7 Maintenance and cleaning ..............
-
Page 5: Safety Instructions
1 Safety Instructions This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. • Our company shall not be held responsible for damages that may occur if these instructions are not observed. • Installation and repair operations shall always be performed by Authorized Service. -
Page 6: Electrical Safety
• Keep all additives used with the product away from children. • Before disposing of the product, cut the power cord and destroy the loading door. 1.3 Electrical Safety • The product must not be plugged in during installation, maintenance, cleaning, repair and transporting operations. -
Page 7: Installing Safety
1.5 Installing safety • To prepare the product ready for installation, ensure that the electrical installation and water drain is proper by checking the information in the user manual. If it is not suitable for installation, call a qualified electrician and plumber to arrange the utilities as necessary. -
Page 8: Usage Safety
• Do not plug the product to loose, broken, dirty, greasy sockets or sockets that has come out their seats or sockets with a risk of water contact. • The new hose sets supplied with the product shall be used. Do not re-use the old hose sets. - Page 9 • Empty the pockets of the clothes and remove items such as matches and lighters. • If all items cannot be removed rapidly and cannot be placed where heat can dissipate, do not stop the drying machine before drying cycle completed. •...
-
Page 10: Maintenance And Cleaning Safety
1.7 Maintenance and cleaning safety • Do not wash the product by spraying or pouring water on it. Do not use a pressure cleaner, steam cleaner, hose or pressurised gun to clean the product. • Do not use sharp or abrasive tools to clean the product. •... -
Page 11: Environmental Instructions
: < 100mW Conformity declaration for CE Arcelik A.S. hereby declares that this appliance complies with Directive 2014/53/EU. The complete text of the EU declaration of conformity is available in the following internet address: – Products, from :support.grundig.com Dryer / User Manual... -
Page 12: Your Drying Machine
3 Your drying machine 3.1 Technical specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,8 cm Depth 60,7 cm Capacity (max.) 9 kg** Net weight (± %10) 44 kg Voltage Rated power input See type label*** Model code * Min. -
Page 13: General Appearance
3.2 General appearance 3.3 Scope of delivery 1. Water 6. Water discharge filling cap* hose* 2. Filter drawer 7. Pure spare Water* sponge* 8. Odour 3. User Capsule Manual Group* 4. Drying 9. Brush* basket* 5. Drying 10. Filter basket user 1. -
Page 14: Installation
4 Installation • Once the drying machine is installed, the connections must stay stable. After placing the drying machine, ensure that the back wall does not come in contact Read the “Safety Instructions” first! with any extrusion (a water tap, electrical outlet etc.). -
Page 15: Connection Of Water Drain Hose On Products With Vapour Feature
4.3 Connection of water drain hose 1 Pull hose at the behind of the dryer by hand in order to disconnect it from where it is on products with vapour feature connected. Do not use any tools to remove You can directly drain accumulated water the hose. -
Page 16: Warning Regarding The Noise
The drying machine is recommended to be moved in upright position. Otherwise, tilt it to the right side when viewed from the front and move the drying machine. Wait 12 hours prior to operating the drying machine. 4.6 Warning regarding the noise As the product is operated, metallic noises may come... -
Page 17: Preparation
5 Preparation 5.3 Preparing the laundry to be dried Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the Read the “Safety Instructions” first! product or may cause functional operation issues. Therefore check all laundry that will be loaded to the 5.1 Laundry suitable for product. -
Page 18: Correct Load Capacity
• If you are using environment friendly filter, you are not required to clean the filter after every cycle. When the environment friendly icon is lit on the screen, change the filter cloth. 5.5 Correct load capacity NOTICE If the laundry in the product exceed maximum load capacity, it may not... -
Page 19: Running The Product
6 Running the product 6.1 Control Panel 1. Program selection button 7. Timer program and child lock selection button 2. On / Off button 8. Steam program selection button 3. Start / Pause button. 9. Low temperature selection button 4. End time selection button. 10. -
Page 20: Program Selection And Consumption Chart
6.4 Program selection and consumption chart Table of steam functioned cycles Programmes Programme Description 1,5 (6 pieces) Is a cycle aimed to reduce the wrinkle level on shirts and t-shirts using a steam function. This cycle usually eliminates the need for ironing for casual 1 (3 pieces) Shirts* shirts after drying. - Page 21 Table of non-steam functioned cycles You can dry your feather or fibre filled textile that bears can be dried in drier label as a single piece of Duvet/ laundry. You can dry double duvet, pillow or coats as Downwear single piece of laundry. Dry your cloths such as coats and jackets turned inside out.
- Page 22 Energy consumption values Programmes Capacity (kg) Cottons 1000 2,17 cupboard dry** Cottons Iron dry 1000 1,65 Synthetics 0,70 cupboard dry “Cottons Eco programme” used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet Cottons laundry and that it is the most efficient programme in terms of energy consumption for Cottons.
-
Page 23: Auxiliary Functions
6.5 Auxiliary functions You can add or remove laundry Dryness level within end time. Displayed time is Dryness level button is used for adjusting to the sum of normal drying time and desired dryness. Program time may change end time. End Time LED turns off at depending on the selection. -
Page 24: Starting The Program
6.7 Starting the program • For example, Pause the program and turn the On/Off/Program Selection button to Press the Start/Stand-by button to start the select the Extra Dry program in order to program. select the Extra Dry program instead of Start/Stand-by and Drying indicators turn on to Ironing Dryness. -
Page 25: Cancelling The Program
6.10 Cancelling the program 6.13 General Description of Steam Programs If you want to cancel the program and terminate the drying operation for any reason Steam cycles after the drying machine starts running, Pause You may use the steam function in cycles that the program and turn the On/Off/Program are marked with a blue/red line in your machine Selection button;... -
Page 26: Homewhiz Function
Cotton, and Synthetic cycles. When you tap Add the product stock number by selecting Wifi and Bluetooth. this button, steam function will be activated, the The surrounding Wifi networks appear on symbol shown below will be displayed and the the screen after selecting start to add, select cycle duration will change. - Page 27 • The remote control is cancelled when the door is opened. • The remote control is cancelled when the program button is turned • If the Wifi icon is illuminated continuously, it means that it is active and connected to network •...
-
Page 28: Maintenance And Cleaning
7 Maintenance and cleaning • Open both of the fibre filters (outer and inner) and remove the fibres with your hands or with the brush on the air deflector. You can clean the hair in the filters with a Read the “Safety Instructions” first! vacuum cleaner. -
Page 29: Cleaning The Sensor
• Insert the fibre filters on one another and place it back in its place. Clean the metal surfaces of the sensor 4 times a year. Do not use metal tools to clean the sensors’ metal surfaces. Due to fire and explosion hazard, do not use solutions, cleaning materials •... -
Page 30: Cleaning The Condenser
Pull the brush to the left to remove it. You can use the cleaning brush to clean filter, condensing metal surface and Remove the water in the water tank. accumulated fibre on the door. The cleaning brush is inside the documentation bag. - Page 31 You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. The condenser fins may damage your hands. Cleaning from left to right may damage the condenser fins. This may lead to drying issues. When the air deflector cover is removed, it is normal to have water at the plastic section in front of the...
-
Page 32: Troubleshooting
8 Troubleshooting Drying operation takes too long. Fibre filter (interior and exterior filter) pores may be clogged. >>> Wash the fibre filters with warm water and dry. Condenser front side may be clogged. >>> Clean the front side of the condenser. The ventilation grills in front of the machine may be closed. - Page 33 Wrinkle prevention icon or light is lit. Anti-Crease mode that prevents the laundry in the drier to crease may be activated. >>> Turn the drier off and remove the laundry Fibre filter cleaning icon is lit. Fibre filter (interior and exterior filter) may be unclean. >>> Wash the filters with warm water and dry.. A layer may be formed on the fibre filter pores that leads to clogging.
- Page 34 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 GRUNDIG Supplier name or trademark GTP7923CEW / 7188235840 Model name GTPE79E23EW / 7188235920 Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) 258,6...
