Summary of Contents for Cincoze P2002 Series
- Page 1 P2002 Series User Manual Convertible Embedded Computer Generation Intel® Core™ U Series (Skylake) Fanless Computer with CFM & CDS Interface Version: V1.67...
-
Page 2: Table Of Contents
1.6.5 Top………..….……….………………………….…………………………..………17 1.7 Mechanical Dimension …………………………………….………...………..……..18 Chapter 2 Switches and Connectors 2.1 Location of the Switches/Connectors……………..…..….……………………………….20 2.1.1 Top View ……………………………….……………………………………...………..20 2.1.2 Bottom View ……………………………………………………………...……....21 2.2 Definition of Switches/Connectors.........……....22 2.3 Definition of Switches……...….……...……….....………………......23 2.4 Definition of Connectors…...….……...……….....………………......26 P2002 Series | User Manual... - Page 3 4.3.4 F81866 Super IO Configuration……………………………………………………...64 4.3.5 Hardware Monitor….………………………………………………………...……….65 4.3.6 S5 RTC Wake Settings…………..…………………………………………...……….66 4.3.7 Serial Port Console Redirection……………...……………………….…....66 4.3.8 CPU Configuration…..………………………………………….…………………..67 4.3.9 SATA Configuration…………………………………………………..…………..68 4.3.10 CSM Configuration………………………….……………………………………..69 4.3.11 Asmedia SATA Controller Configuration……………………………………………71 4.3.12 USB Configuration……………….…………………………………….……..…..72 P2002 Series | User Manual...
- Page 4 4.6 Boot Setup …...……….….……………………………...…..….…..………..…………..…77 4.7 Save & Exit …...……….….……………………..….…..………………………....78 Chapter 5 Product Application 5.1 Digital I/O (DIO) application ………..…………………………………………………………80 5.1.1 Digital I/O Programming Guide ………………………………………………………80 5.2 Digital I/O (DIO) Hardware Specification …………………………………..…….…………88 5.2.1 P2002 DIO Connector Definition……………………………………………………89 P2002 Series | User Manual...
-
Page 5: Revision
2023/04/14 Copyright Notice © 2016 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice. -
Page 6: Declaration Of Conformity
Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation. -
Page 7: Technical Support And Assistance
Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies. -
Page 8: Conventions Used In This Manual
Position the power cord so that people cannot step on it. Do not place anything over the power cord. 10. All cautions and warnings on the equipment should be noted. 11. If the equipment is not used for a long time, disconnect it from the power source to avoid P2002 Series | User Manual... - Page 9 The equipment has obvious signs of breakage. 14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. 15. Equipment intended only for use in a RESTRICTED ACCESS AREA. P2002 Series | User Manual...
-
Page 10: Package Contents
Computer with CFM and CDS Interface Intel® 6 Generation Core™ i3-6100U Expandable Fanless P2002E-i3-E4-R10 Computer with CFM and CDS Interface, 1x PCIex4 Expansion Intel® 6 Generation Core™ i3-6100U Expandable Fanless P2002E-i3-PI-R10 Computer with CFM and CDS Interface, 1x PCI Expansion P2002 Series | User Manual... -
Page 11: Optional Modules & Accessories
Chapter 1 Product Introductions P2002 Series | User Manual... -
Page 12: Overview
1.1 Overview Cincoze P2002/P2002E is a high performance fanless embedded and display computer powered by Intel® 6th generation Core™ U series processor with only 15 watt power consumption. The advanced graphics engine supports triple independent display with 1x VGA, 1x DVI-D and 1x CDS interface. -

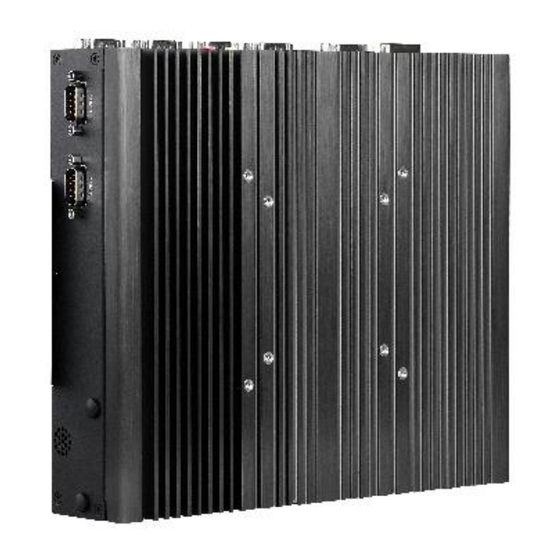

Page 13: Product Pictures
Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO) Support Instant Reboot Technology ⚫ ⚫ Support CDS Technology for Convertible Panel PC ⚫ Wide Operating Temperature (-25°C to 70°C) ⚫ SuperCap integrated for Battery Maintenance-Free P2002 Series | User Manual... -
Page 14: Hardware Specification
• 1x PCI or 1x PCIex4 Socket (For P2002E only), Support Operating System maximum dimension of add-on card(H x L): 100mm x 200mm • 1x Universal I/O Bracket • Windows® 10/ 8.1/ 7 • 1x SIM Socket • Linux® Kernel 3.X • 4x Antenna Hole P2002 Series | User Manual... -
Page 15: System I/O
SW: Remote Power On/Off Terminal Block Used to connect to an external speaker Used to connect to remote power on/off switch Mic-in Used to connect to a microphone Used to connect to RS-232/422/485 serial devices P2002 P2002E P2002 Series | User Manual... -
Page 16: Rear
Press to turn-on or turn-off the backlight of display Reset Button - Increase Brightness Used to reset the system Press to increase brightness of the screen - Decrease Brightness Press to decrease brightness of the screen P2002 P2002E P2002 Series | User Manual... -
Page 17: Side (Right)
Antenna Hole Used to connect an antenna for optional Used to connect to RS-232/422/485 serial Mini-PCIe WiFi module devices P2002 P2002E 1.6.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) P2002 Series | User Manual... -
Page 18: Mechanical Dimension
1.7 Mechanical Dimensions P2002 Unit: mm P2002E Unit: mm P2002 Series | User Manual... - Page 19 Chapter 2 Switches & Connectors P2002 Series | User Manual...
-
Page 20: Location Of The Switches/Connectors
2.1 Location of the Switches/Connectors 2.1.1 Top View P2002 Series | User Manual... -
Page 21: Bottom View
2.1.2 Bottom View P2002 Series | User Manual... -
Page 22: Definition Of Switches/Connectors
SIM1 SIM Card Socket SPK_L1、SPK_R1 Internal Speaker Connector USB2_1 USB 2.0 Port USB3_1、USB3_2 USB 3.0 Port VGA1 VGA Connector PWR_SW1 Power Switch Connector FAN1 FAN Increase DIO1 DIO Connector DIO2 DIO Connector PCIE1 PCIE Connector P2002 Series | User Manual... -
Page 23: Definition Of Switches
Clear CMOS Function Setting : Pin Define SW2 Switch Switch mode Function Normal CMOS Clear CMOS (Default) COM1/2 Voltage Function Setting : Pin Define SW2 Switch Switch Function mode ON/ON (Default) COM2 ON/OFF OFF/OFF ON/ON (Default) COM1 ON/OFF OFF/OFF P2002 Series | User Manual... - Page 24 OFF/OFF ON/ON (Default) COM4 ON/OFF OFF/OFF ON/ON (Default) COM5 ON/OFF OFF/OFF ON/ON (Default) COM6 ON/OFF OFF/OFF AT_ATX1: AT / ATX Power Mode Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode (Default) P2002 Series | User Manual...
- Page 25 BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push Backlight Increase BL_DN1: Backlight Decrease Switch Definition Push Backlight Decrease RESET1: Reset Switch Switch Definition Push Reset System P2002 Series | User Manual...
-
Page 26: Definition Of Connectors
DC power connector to system. LAN1/LAN2: RJ45 with LEDs Port Act LED Definition Link LED Status Definition Status Blinking 1Gbps Network Data Activity Steady Green Yellow Link 100Mbps No Activity Steady Orange Network Link 10Mbps Network Link P2002 Series | User Manual... - Page 27 FAN1: External PWM Fan Connector Connector Type: Terminal Block 1X3 3-pin, 3.5mm pitch Definition +12V SENSE Control PWE_SW1: On / Off Switch Definition PWR_SW Do not apply power to this connector! This port is used to connect a SWITCH! P2002 Series | User Manual...
- Page 28 CN1: Mini PCI-Express Socket (SIM Card to Link) Pin Definition Pin Definition Pin Definition WAKE# RESERVED +3.3V +3.3V USB_D+ RESERVED PERST# PERN0 +3.3V +1.5V +3.3V CLKREQ# PERN0 RESERVED SIM_DATA +1.5V REFCLK+ SIM_CLK SMB_CLK +1.5V REFCLK+ PETN0 SIM_RESET SMB_DATA PETP0 SIM_VPP +3.3V USB_D- P2002 Series | User Manual...
- Page 29 CN2: Mini PCI-Express Socket / mSATA Socket Pin Definition Pin Definition Pin Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# PERN0/SATAPR0 41 +3.3V +1.5V +3.3VAUX CLKREQ# PERN0/SATARN0 43 +1.5V REFCLK+ SMB_CLK +1.5V REFCLK+ PETN0 SMB_DATA PETP0 +3.3V USB_D- P2002 Series | User Manual...
- Page 30 CN3: mSATA Socket Pin Definition Pin Definition Pin Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# SATARXP +3.3V +1.5V +3.3V SATARXN +1.5V SMB_CLK +1.5V SATATXN SMB_DATA SATATXP +3.3V USB_D- P2002 Series | User Manual...
- Page 31 SW2: Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3 Pin 4 Definition 0 second 1 minute 5 minutes 10 minutes 30 minutes 1 hour 2 hours Reserved (0 second) P2002 Series | User Manual...
-
Page 32: Chapter 3 System Setup
Chapter 3 System Setup P2002 Series | User Manual... -
Page 33: Removing The Top Cover
Loosen the 6 screws at front and rear panel, then place them aside. Raise the left edge of top cover (1), and raise the other side (2) subsequently to remove it from the chassis. Place the top cover aside gently. P2002 Series | User Manual... -
Page 34: Installing A Half Size Mini Pcie Card
Use provided two screws on bracket to fasten the module and bracket together. Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly. ° P2002 Series | User Manual... -
Page 35: Installing A Full Size Mini Pcie Card
3.3 Installing a Full Size Mini PCIe Card 1. Locate the Mini PCIe slot. 2. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° P2002 Series | User Manual... -
Page 36: Installing A Msata Card
3.4 Installing a mSATA Card Locate the mSATA slot on the system board. Tilt the mSATA card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° P2002 Series | User Manual... -
Page 37: Installing Antennas
Fasten the card with two screws. 3.5 Installing Antennas Remove the antenna rubber covers on left and right panel. Penetrate the antenna jack through the hole. P2002 Series | User Manual... - Page 38 Put on the washer and fasten the nut with antenna jack. Assemble the antenna and antenna jack together. Attach the RF connector at another end of the cable onto the card. P2002 Series | User Manual...
-
Page 39: Installing A So-Dimm
2. Tilt the SODIMM module at a 45-degree angle and insert it to SODIMM socket until the gold-pated connector of module contacted firmly with the socket. 3. Press the module down until its fixed firmly by the two locking latches on each side. P2002 Series | User Manual... -
Page 40: Installing A Pci(E) Card
3.7 Installing a PCI(e) Card 1. Locate the retention module of PCI(e) expansion card. 2. Loosen one screw halfway as indicated to have the clamp arm slidable. clamp arm 3. Loosen one screw to remove the PCI bracket. P2002 Series | User Manual... - Page 41 5. Fasten one screw to secure the PCI(e) expansion card. 6. Slide the clamp arm of retention module until it contacts the edge of PCI(e) expansion card. P2002 Series | User Manual...
-
Page 42: Installing Thermal Pad Of Thermal Block
Place thermal pad on the top of CPU thermal block in order to provide a seamless contact with the body of chassis to create an efficient heat dissipation. Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! P2002 Series | User Manual... -
Page 43: Installing A Power Ignition Daughter Board (Optional)
(Optional) Locate the power Ignition connector on system motherboard as indicated. Insert the female connector of power ignition board to the male connector on system motherboard. Fasten two screws to secure the power ignition board. P2002 Series | User Manual... -
Page 44: Installing A Poe Daughter Board (Optional)
This chapter takes CFM-PoE101 for example. Locate the PoE connector on system motherboard as indicated. Insert the female connector of PoE daughter board to the male connector on system motherboard. Fasten two screws to secure the PoE board. P2002 Series | User Manual... -
Page 45: Installing The Top Cover
3.11 Installing the Top Cover 1. Put on the left edge of top cover onto system, and the other side subsequently. 2. Fasten the six screws at front and rear panel to secure the top cover. P2002 Series | User Manual... -
Page 46: Installing A Sata Hard Drive At Front Panel
1. Turn over the system to bottom side, and remove one screw. 2. Loosen the two screws to remove the HDD bay cover bracket. 3. Pull the rotating arm of HDD bracket outward as indicated. P2002 Series | User Manual... - Page 47 HDD on the bracket. 6. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot. P2002 Series | User Manual...
-
Page 48: Installing A Sata Hard Drive On Bottom Side
8. Fasten one screw to secure the HDD bracket on the system chassis. 3.13 Installing a SATA Hard Drive on Bottom Side Turn over the system to bottom side. Locate the cover of HDD compartment. P2002 Series | User Manual... - Page 49 Loosen the two screws, then pull the cover to remove it. Loosen three screws and take the HDD bracket out of HDD compartment. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. P2002 Series | User Manual...
- Page 50 Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. Secure the HDD bracket with three screws. Put back the cover and fasten the two screws. P2002 Series | User Manual...
-
Page 51: Installing A Sim Card
3.14 Installing a SIM Card 1. Locate the SIM card slot at front panel. 2. Loosen two screws to remove the cover plate. 3. Insert the SIM card. P2002 Series | User Manual... -
Page 52: Installing A Cfast Card
1. Locate the CFast card slot at front panel. 2. Loosen the two screws to remove the cover plate. 3. Insert a CFast card until it clicks. 4. Fasten two screws to secure the cover plate. P2002 Series | User Manual... -
Page 53: Connecting With Cv Display Module
2. Remove six screws at left and right panel of PC2000. 3. Assemble two mounting brackets to left and right panel of PC2000 by fastening three screws at each side. Left Panel Right Panel P2002 Series | User Manual... - Page 54 4. Turn over the system to bottom side. Locate the connector cover of display module. 5. Loosen two screws to remove the cover. The following photos indicates the male connector (on display module) and female connector (on P2002). P2002 Series | User Manual...
- Page 55 7. Align the mounting holes of P2002 with the screw holes of display module underneath. Then slide the PC2000 carefully as indicated to have P2002 and display module connected together. 8. Fasten six screws to secure P2002 on the display module. P2002 Series | User Manual...
-
Page 56: Vesa Mount
To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. (Please refer to section 3.16 in this manual for how to attach PC2000 to CV display module.) P2000 + CV display module VESA stand P2002 Series | User Manual... -
Page 57: Wall Mount
1. Prepare wall mount kit (two wall brackets and one screw pack) that came with the P2002. De-attach six rubber holes from the mounting brackets as indicated. 2. Assemble two wall mount brackets by fastening three screws at each side. The following picture indicates six wall mounting holes at each side. P2002 Series | User Manual... - Page 58 3. Attach the P2002 to wall by fastening six screws through mounting holes at each side as illustrated. P2000 Wall P2002 Series | User Manual...
-
Page 59: Chapter 4 Bios Setup
Chapter 4 BIOS Setup P2002 Series | User Manual... -
Page 60: Bios Introduction
You can use arrow keys ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. P2002 Series | User Manual... -
Page 61: Main Setup
Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date. Please use <Tab> to switch between date elements. 4.2.2 System Time Set the time. Please use <Tab> to switch between time elements. P2002 Series | User Manual... -
Page 62: Advanced Setup
4.3 Advanced Setup 4.3.1 ACPI Settings Enable or disable ACPI Auto Configuration. ■ Enable ACPI Auto Configuration [Enabled] Enables or disables BIOS ACPI Auto Configuration. P2002 Series | User Manual... -
Page 63: Amt Configuration
Allows you to enable or disable Intel® Active Management Technology BIOS execution. ■ Un-Configure ME [Disabled] Sets this item to [Disabled] to unconfigure AMT/ME without using a password or set it to [Enabled] to use a password. 4.3.3 PCH-FW Configuration P2002 Series | User Manual... -
Page 64: F81866 Super Io Configuration
You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. ■ Serial Port 1~6 Configuration ❑ Serial Port [Enabled] This item will allow users to enable or disable serial port. P2002 Series | User Manual... -
Page 65: Hardware Monitor
■ PWM Fan Mode Configuration ❑ PWM Fan1 Duty [60%] This item allows users to change duty cycle value of PWM Fan1. ❑ PWM Fan2 Duty [60%] This item allows users to change duty cycle value of PWM Fan2. P2002 Series | User Manual... -
Page 66: S5 Rtc Wake Settings
[Dynamic Time]: Set the increase time from current time to wake system. 4.3.7 Serial Port Console Redirection ■ Console Redirection [Disabled] These items allow users to enable or disable COM0, COM1, COM2, COM3, Com4, COM5 console redirection function. P2002 Series | User Manual... -
Page 67: Cpu Configuration
Enables or disables Intel® Virtualization Technology. Virtualization enhanced by Intel® Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. P2002 Series | User Manual... -
Page 68: Sata Configuration
Changes the delay time for option ROM. ❑ HDD Unlock [Enabled] Enables or disables HDD unlock. ❑ LED Locate [Enabled] Enables or disables LED Locate. ❑ Smart Response Technology [[Enabled] Enables or disables Smart Response Technology. P2002 Series | User Manual... -
Page 69: Csm Configuration
Enables or disables SATA Port 1. ❑ Hot Plug [Enabled] Enables or disables Hot Plug support for port1. ■ Serial ATA Port (CFast) ❑ Port 2 [Enabled] Enables or disables SATA Port 2. 4.3.10 CSM Configuration P2002 Series | User Manual... - Page 70 This item allows users to select whether to enable the UEFI or legacy option ROM for the other PCI devices. [Do not launch]: Disables option ROM. [UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only. P2002 Series | User Manual...
-
Page 71: Asmedia Sata Controller Configuration
4.3.11 Asmedia SATA Controller Configuration ■ SATA Controller 0 Configuration Settings Displays configuration information on SATA Controller 0. P2002 Series | User Manual... -
Page 72: Usb Configuration
Enables or disables support for USB mass storage devices. Determines whether to enable EHCI Hand-off feature for an operating system without EHCI Hand-off support. ■ USB Mass Storage Driver Support Enables or disables support for USB storage devices. P2002 Series | User Manual... -
Page 73: Chipset Setup
This item allows users o enable or disable Intel® Virtualization Technology for Directed I/O (VT-d) function. ■ Above 4GB MMIO BIOS assignment [Enabled] This item allows user to enable or disable the Above 4GB Memory Mapped IO BIOS assignment. P2002 Series | User Manual... -
Page 74: Pch-Io Configuration
Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. PCI Express Root Port (Mini PCIe) ❑ PCI Express Port 5 [Enabled] Allows you to enable or disable PCI Express Port 5. ❑ PCIe Speed [Auto] Allows you to select PCI Express interface speed. P2002 Series | User Manual... - Page 75 Allows you to specify which power state system will enter when power is resumed after a power failure. [Last State]: Enter last power state before a power failure. [S0 State]: Enter power-on state. [S5 State]: Enter power-off state. P2002 Series | User Manual...
-
Page 76: Security Setup
This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. P2002 Series | User Manual... -
Page 77: Boot Setup
■ New Boot Option Policy [Default] Allows you to change New Boot Option Policy. Configuration options: [Default] [Place First] [Place Last]. ■ Hard Drive BBS Priorities [Default] Allows you to change the order of the legacy devices in the group. P2002 Series | User Manual... -
Page 78: Save & Exit
■ Save as User Defaults This item allows you to save the changes done so far as user defaults. ■ Restore User Defaults This item allows you to restore the user defaults to all the options. P2002 Series | User Manual... -
Page 79: Chapter 5 Product Application
Chapter 5 Product Application P2002 Series | User Manual... -
Page 80: Digital I/O (Dio) Application
This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O of Cincoze P1001 series product Item Standard GPIO70 (Pin103) - Page 81 -o 4e 87 -o 4e 87 (enable configuration) -o 4e aa (disable configuration) 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. P2002 Series | User Manual...
- Page 82 P2002 Series | User Manual...
- Page 83 // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h <Input Mode Selection> // Set GP70 to GP77 input Mode WriteByte(AddrPort, 0x80) // Select configuration register 80h P2002 Series | User Manual...
- Page 84 // Set (bit 0~7) = 1 to select GP 80 ~87 as Output mode. <Output Value> WriteByte(AddrPort, 0x89) // Select configuration register 89h WriteByte(DataPort, Value) // Set bit 0~7=(0/1) to output GP 80~87 as Low or High <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) P2002 Series | User Manual...
- Page 85 // Select configuration register 60h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x03)) WriteByte(AddrPort, 0x61) // Select configuration register 61h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x20)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Note: Cincoze DIO Port base address is 0x0A00h. P2002 Series | User Manual...
- Page 86 5.1.1.6 DATA Bit Table (DIO) P2002 Series | User Manual...
- Page 87 5.1.1.7 DIO I/O Port Address DI8 DI7 DI6 DI5 DI4 DI3 DI2 DI1 DO8 DO7 DO6 DO5 DO4 DO3 DO2 DO1 Pin Definition Data Bits 0xA03 0xA02 I/O Port address P2002 Series | User Manual...
-
Page 88: Digital I/O (Dio) Hardware Specification
DO Signal have to pull up resistor to XCOM+ for external device, the resistance will affect the pull up current Signal High Level: Pull up resistor to XCOM+ Signal Low Level: = XCOM- Sink Current: 1A (Max) P2002 Series | User Manual... -
Page 89: P2002 Dio Connector Definition
5.2.1 P2002 DIO Connector Definition DIO1/DIO2 : Digital Input / Output Connector Connector Type: Terminal Block 2X10 10-pin, 3.5mm pitch Definition Definition DC INPUT DC INPUT P2002 Series | User Manual... - Page 90 P2002 Series | User Manual...
- Page 91 © 2020 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
