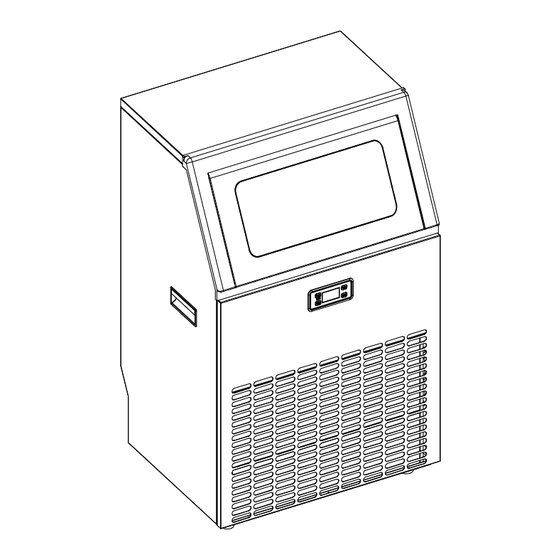

- Page 1 Automatic Ice Maker HZB-90F HZB-120F...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY-------------------------------------------------------------------------------------3 SPECIFICATION--------------------------------------------------------------------------------------------5 DIMENSION/CONNECTION---------------------------------------------------------------------5 RATING------------------------------------------------------------------------------------------------5 GENERAL INFORMATION-------------------------------------------------------------------------------6 MAIN UNIT CONSTRUCTION------------------------------------------------------------------------6 ICE-MAKING AND ITS WATER TANK PARTS-----------------------------------------------6 OPERATION PANEL---------------------------------------------------------------------------------7 EXPLOSIVE DRAWING----------------------------------------------------------------------------8 OPERATING PROCEDURE AND MAINTENANCE------------------------------------------------10 UNPACKING YOUR ICE MAKER- ------------------------------------------------------------------------- INSTALLATION LOCATION REQUIREMENT-------------------------------------------------10 ELECTRICAL REQUIREMENT & CONNECTIONS-----------------------------------------11 CLEANING YOUR MAKER BEFROE FIRST USING---------------------------------11... -
Page 3: Important Safety
IMPORTANT SAFETY When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. Use this appliance only for its intended purpose as described in this owner’s manual. This ice-maker must be properly installed in accordance with the installation instructions before it is used. - Page 4 WARNING: Do not damage the refrigerant circuit. WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 5: Specification
SPECIFICATIONS 1) DIMENSIONS/CONNECTIONS Water Drainage Port Water Inlet Port 2) Rating POWER SUPPLY VOLTAGE 1Phase, 115V/60Hz MODEL HZB-90F HZB-120F CLAIMATE CLASS 10-40℃ 10-40℃ ELECTRICAL PROTECTION CLASS ICE MAKING RATING (Amps) 4.4 Amp 7.5Amp ICE HARVEST RATING (Amps) 5.0 Amp 7.8 Amp... -
Page 6: General Information
GENERAL INFORMATION 1) Main Unit Construction 1. Top cover 2. Door for ice taking 3.Clear window 4. Ice-making & its water tank assembly: Including ice-making evaporator, water tank, water pump and some detecting parts 5. Front panel 6. Operation panel 7. -
Page 7: Operation Panel
A. Water dividing pipe ： with nine little holes, water will flow out from these little holes. And if no water flows out, can be disassembled and cleaned. B. Evaporator (ice-making module) C. Ice full detecting board: Use to detect the inner cabinet is full of ice or not, and to check the the ice-harvest process is over or not. -
Page 8: Explosive Drawing
EXPLOSIVE DRAWINGS Parts Name Material Qty. Front panel Stainless steel Water outlet pipe of the inner cabinet Silicone pipe Water drainage port Water drainage cap Rubber Adjustable foot ABS and bolts Operation panel paper Operation panel PCB box Operation panel PCB Electrical and Electronic parts Bottom plate Zinc-plated steel board... - Page 9 Water drainage pipe of the water tank Silicone pipe Water tank Right side plate 430stainless/Zinc-plated steel,(Option) Handle Cover of the water tank Water circulation pump AC110-120V,60Hz, Electrical parts Water level detecting switch DC5V, Electrical parts Foaming bracket Zinc-plated steel board Ice-full detecting plate Magnetic control switch DC5V, Electrical parts...
-
Page 10: Operating Procedure And Maintenance
OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging. Check if all the accessories, including instruction manual, ice scoop, white water inlet pipe, 4 ways to 2 ways water quick connector and the water draining pipe, etc., are inside or not. -
Page 11: Electrical Requirement & Connections
Choose a well-ventilated area with temperatures above 50 Fahrenheit and below 90Fahrenheit. This unit MUST be installed in an area protected from the elements, such as wind, rain, water spray or drips. The ice maker requires a continuous water supply with pressure 1-8 Bar as required in above specification table. -
Page 12: Water Connections For Your Ice-Maker
ice-cube made by the first ice making cycle after cleaning. 4. The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm water. 5. Dry the interior and exterior with a clean soft cloth. WATER CONNECTION FOR YOUR ICE MAKER Important: Be sure to use the new hose-sets supplied with the appliance to connect to water mains and that old hose-sets should not be reused. -
Page 13: Operation Your Unit
OPERATION YOUR UNIT Operation button and display area diagram OPERATION DISPLAY OPERATION AREA AREA AREA TIMER CLEAN ON/OFF Operation the ice-making process Starting up： Plug in the power plug,the symbol will flash in the display window,press the ON/OFF button on the control panel,the machine will start to make ice when the external pipe add water to reach the standard level on the water tank through the electromagnetic water valve,then symbol will change to light on always in display window and symbol rotate;The... -
Page 14: Automatic Self-Cleaning Program
4. When the symbol lights up，the machine stop working,it will work again after you take out the ice. Shut down the unit： During the unit making ice，press the“ON/OFF”button on the control panel，the unit shut down and into standby mode.If you press "ON/OFF" longer than 5S during ice making, then the unit enters the deicing process directly, this function can help remove the ice on the ice plate. -
Page 15: Wiring Diagram
WIRING DIAGRAM Start Relay ELECTRICAL DIAGRAM COMPRESSOR Overload Protector Power VALVE PUMP AC-L COMP AC-N Supply AC Water Pump Relay DC Fan Motor Solenoid Vale for Ice-harvest DC Water Inlet Valve WATER Main Control PCB WATER LEVEL DETECTING SWITCH SENSOR FOR AMBIENT TEMP SENSOR FOR ICE FULL DETECTING... -
Page 16: Preparing Ice Maker For Long Storage
Preparing the Ice Maker for Long Storage If the ice maker will not be used for a long time, or is to be moved to another place, it will be necessary to drain out all of the water in the system. 1. -
Page 17: Exterior Cleaning
What shouldn't be done Never keep anything in the ice storage bin that is not ice: objects like wine and beer bottles are not only unsanitary, but also it’s labels may slip off and obstruct the drain pipe. Exterior Cleaning The door and cabinet may be cleaned with a mild detergent and warm water solution such as 28g of dish washing liquid mixed with 7.5L of warm water. - Page 18 3、 When there are ice cubes on the surface of the evaporator, but can’t fall down easily, do not use the mechanical substance to remove it by force; Only press the “ON/OFF” button for more than 5 seconds, the unit will enter the ice melting process, after some while, the big ice-cubes will fall down, then turn off the unit and unplug the power cord to clean the surface of the evaporator.
-
Page 19: Ice-Machine Cleaner
Ice Making Assembly System Cleaning by Using Nu-Calgon Nickle Safe Ice-machine Cleaner Minerals that are removed from water during the freezing cycle will eventually form a hard scaly deposit in the water system. Cleaning the system regularly helps remove the mineral scale buildup. -
Page 20: Cleaning Suggestion
The ice machine cleaner contains acids. DO NOT use or mix with any other solvent-based cleaner products. Use rubber gloves to protect hands. Carefully read the material safety instructions on the container of the ice machine cleaner. DISCARD the first batch of ice troduced after cleaning. 8. -
Page 21: Normal Trouble Shooting
NORMAL TROUBLE SHOOTING Problem Possible Cause Solution Check the main water supply pressure or check the water supply hose is blocked or No water supply not, adding the water pressure or cleaning the hose necessary. Floating ball of the water level Clean the water tank and the water level The whole “... -
Page 22: Correct Disposal Of This Product
ERROR INDICATOR a) Ambient temp sensor breakdown----- Display E1 in digital window. b) The machine not make ice or the gas leak ----Display E2 in digital window c) Magnetic control switch cut off---- “Full”light will be on when plugging on or just turning on the unit. And it will delete the breakdown display if this switch is electric shorted. - Page 24 Thank you for purchasing this product! If you have questions about assembly or operation of this product, are missing parts, or if the product is damaged, please contact us via or call Amazon Message 213-4467172 customer serve Phone: IMPORTANT Do not return this product to the store. Simply call our customer service department for any questions or concerns: 213-4467172 (8:30am - 5:30pm P.S.T.)
