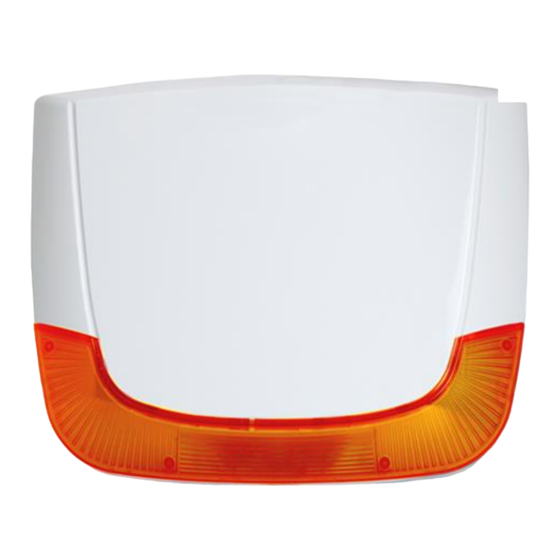

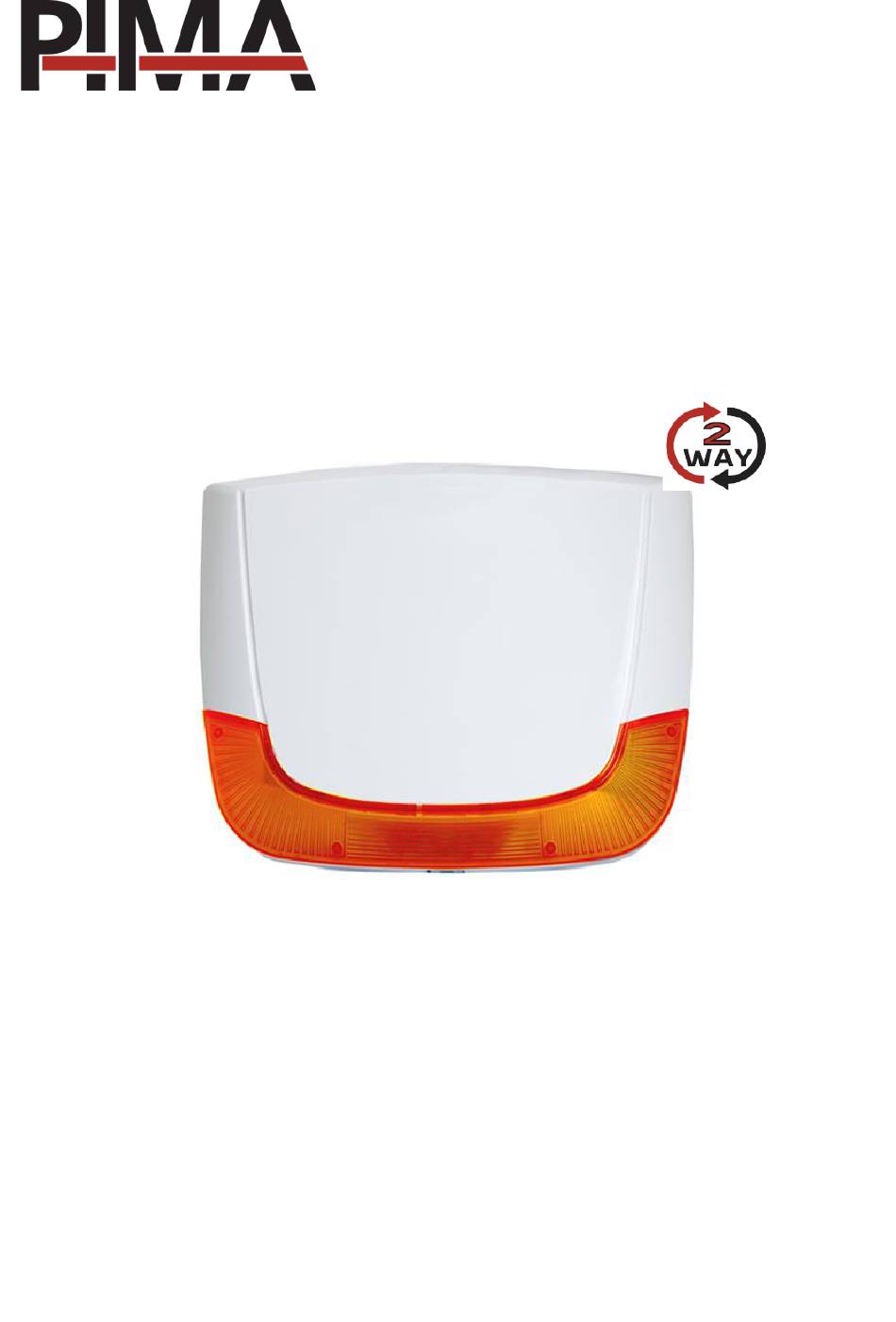

- Page 1 Wireless 2-Way Outdoor Siren Model: SRO743 / SRO786 Installation and Programming Instructions...
- Page 2 Introduction PIMA's two-way Outdoor Siren is designed to extend the signaling capabilities of PIMA's wireless systems. The wireless siren offers an easy and flexible solution for quick installation. The siren is powered by its own batteries and communicates wirelessly with the security panel.
- Page 3 Mounting the Siren To mount the siren follow this procedure: 1. Open the front cover by removing the case locking screw located at the bottom of the unit. 2. Hold the mounting pattern template (supplied) against the wall and mark the locations for the mounting holes (4 mounting holes are available).
- Page 4 Outdoor Siren - PCB Diagram Wireless Siren - Installation and Programming Instructions...
- Page 5 Programming the siren Programming the wireless siren consists of the following 3 steps: 1. Enrolling the siren in the alarm system 2. Setting siren parameters 3. Testing the siren Step 1: Siren Enrollment For complete description of the wireless configuration and device enrollments, refer to Programming Guide for the FORCE and VISION Alarm Systems Enrollment of the Siren in the system can be performed manually or automatically via the keypad.
- Page 6 Cancel siren delay This wireless siren incorporates a pre-alarm feature that enhances the security of the system by producing a local alarm in case of sabotage. If defined, the system sends a pre-alarm signal to the siren at the beginning of the entry delay.
- Page 7 - 25°C to 70°C IP class and IK Rating IP 44, IK07 Standards EN50131-4 Grade 2 Environmental Class IV EN50131-6 Type C Ordering Information Model Frequency P/N SRO743 433MHz 8841216 SRO786 868MHz 8841218 Wireless Siren - Installation and Programming Instructions...
- Page 8 Limited Warranty PIMA Electronic Systems Ltd. does not represent that its product may not be compromised and/or circumvented, or that the Product will prevent any death, personal and/or bodily injury and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the Product will in all cases provide adequate warning or protection.
