Summary of Contents for Show Technology SHOWPRO Venue Haze 1200

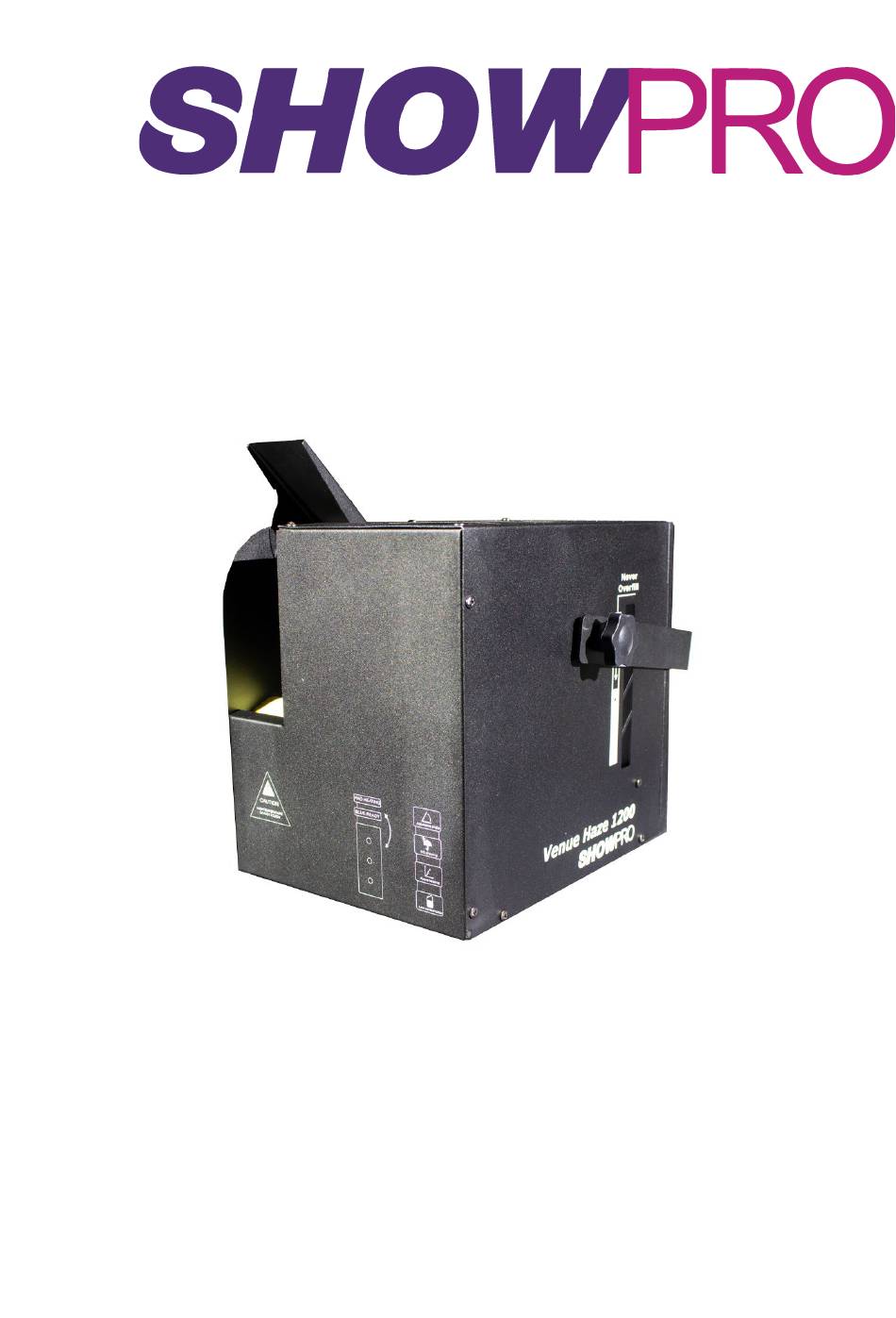

- Page 1 Venue Haze 1200 USER MANUAL...
-
Page 2: Package Content
Thank you for choosing our products. To make our products more convenient and safer for customers, please read the instruction manual and observe the regulations of this manual before using this product. 1. Package content: • 1x Venue Have 1200 machine. •... -
Page 3: Safety Precautions
4. Safety precautions: • Do not touch the device during operation as the housing heats up. Keep this device away from rain and moisture. • Unplug the mains lead before opening the housing. • Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the •... - Page 4 5.2．Installation guide: Have the device installed by a qualified person, respecting local laws and EN 60598 - 2 – 17. • Never stand directly below the device when it is being mounted, removed, or serviced. • Have a qualified technician check the device once a year at a minimum. •...
- Page 5 6.1 Control Board : MENU VALUE DESCRIPTION d*** d001-d511 DMX ADD Setting h*** h001-h005 Fog output：min-max f*** f001-f005 Fan speed：min-max 6.2 DMX : This machine has two channels, the maximum address of the DMX is 511 in normal use. • Channel 1: use to control the volume of the fan.
-
Page 6: Maintenance
8. Maintenance: • Please use our high-quality smoke oil to extend the life of the machine. Non-professionals do not disassemble the machine and do not modify the machine to avoid danger. • After using the machine, please turn off the power and unplug it in time. Use a damp cloth to clean the dust and oil stains on the machine. -
Page 7: Specification
9. Specification : Voltage required： AC220-230V /AC110-120V Power consumption： 600W Fuse： 5A/10A Initial Warm-up Time： Approx 3 min Temperature control： Electronic Thermo-Control Adjustable Output： Hazer Output Volume： 3900Cu ft/min Continuous Output： Fluid Consumption @ full volume： Approx 140min/L No-Fluid Protection： Support Fluid: Pro C Fluid - DJPJCE110... - Page 8 10. D-800 Timing Controller (Optional): When using, please connect the 5pin plug at the end of the wired controller to the machine and check the controller. There are three rotary knobs and a red, a yellow and a green three buttons on the controller, which are convenient for the operator to set and adjust the time, interval and output.
