- Page 1 TGP 1005 E ORIGINAL INSTRUCTIONS GARDEN PUMP...
-
Page 2: Table Of Contents
Information marked with this symbol indicates that the data chapter. operating manual must be observed. • Do not remove any safety signs, stickers or labels from the device. Keep all safety signs, stickers and labels in legible condition. garden pump TGP 1005 E... - Page 3 (alkalis, acids, etc.), combustible or explosive not in use, remove the mains plug from the mains socket. liquids (petroleum, petrol, etc.) or food (drinking water, etc.). garden pump TGP 1005 E...
- Page 4 • have read and understood the operating manual, especially the Safety chapter. Safety signs and labels on the device Note Do not remove any safety signs, stickers or labels from the device. Keep all safety signs, stickers and labels in legible condition. garden pump TGP 1005 E...
- Page 5 Do not leave the packaging lying around. Children may use it as a dangerous toy. Note If you store or transport the device improperly, the device may be damaged. Note the information regarding transport and storage of the device. garden pump TGP 1005 E...
-
Page 6: Information About The Device

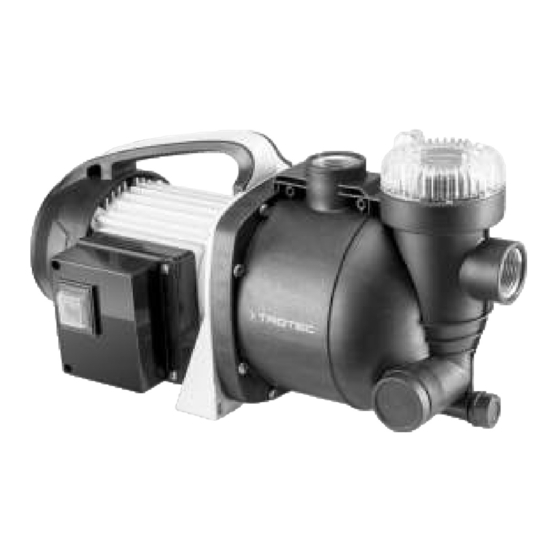

Designation On/off switch with protective cover Connection for pressure line with 1" internal thread Water filler neck/prefilter Connection for suction line with 1" internal thread Water drain nozzle with screw plug Transport handle Foot (with drill hole) garden pump TGP 1005 E... -
Page 7: Assembly And Installation
• The smaller the delivery head of the pressure line and suction line, the higher the flow rate. • Connected accessories can cause a pressure loss and reduce the feed rate. garden pump TGP 1005 E... - Page 8 Keep the protective cap of the suction connection so you can use it when storing the device to protect the inside of the device against dust and dirt. 2. Connect the suction line to the suction connection (4). garden pump TGP 1005 E...
-
Page 9: Operation
1. Switch the device off by setting the on/off switch (1) to position 0. 2. Hold onto the mains plug while pulling the power cable out of the mains socket. 3. Open the lowest-level consumer to reduce the pressure in the pressure line. garden pump TGP 1005 E... -
Page 10: Available Accessories
• Check the suction line and the connection for tightness. • Check whether the suction height is too high, and reduce it if necessary. • Check whether the hose line is kinked or blocked. Remove kinks and / or blockages. Insufficient or decreasing conveying capacity: garden pump TGP 1005 E... -
Page 11: Maintenance
Before restart, the device must be filled with water again. Safety signs and labels on the device Check the safety signs and labels attached to the device at regular intervals. Replace illegible safety signs! garden pump TGP 1005 E... -
Page 12: Technical Annex
210 mm Max. particle size 2 mm Pressure connection 1" internal thread Suction connection 1" internal thread Sound values according to EN ISO 3744:1995 Sound pressure level L 72 dB(A) Sound power level L 88 dB(A) Uncertainty K 2 dB(A) garden pump TGP 1005 E... - Page 13 Overview of spare parts and spare parts list TGP 1005 E garden pump TGP 1005 E...
- Page 14 Flange Plate Terminal Box Cover Thrower 12 Triangular groove screw Aluminum Holder Square Gasket Bearing Waterproof Switch Rotor Switch Cover Bearing Outer Frame of Switch Stator Capacitor Motor housing (105) Capacitor Holder Corrugated Gasket Power Cable garden pump TGP 1005 E...
-
Page 15: Disposal
35° garden pump TGP 1005 E... - Page 16 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
