Millennia HV3D ADD-96 Manual

Millennia
Music & Media Systems
Field Installation Kit for HV3D ADD-96 Conversion
Parts needed
• ADD-96 circuit board w/ six mounting screws
• Clock/Rate/LED back panel assembly w/ two
mounting jackscrews and nuts
•
Clock in/out assembly w/eight mounting screws
and nuts
• HV3D to ADD-96 cable assembly
• Power supply chassis assembly
• Power supply cable
• HV3D card jumpers (2 per card)
• Rear panel stick-on labels
Assembly Instructions
Large pictures are at the end of the instructions.
1. Modifying the chassis.
• Be sure power is disconnected from unit.
• Remove 12 (twelve) top cover screws and
top cover. Put in safe place.
• If the chassis doesn't have cutouts for
DB25s, go to appendix.
•
Remove the two middle block-off plates
from the rear panel of the chassis.
• Mount DB25 to header connector in the
opening closest to the power supply on the
chassis.
• Mount the switch assembly/DB25 blank in
the hole next to the DB25 connector just
installed. Mount with switches away from
the power supply side and the LED towards
the power supply.
• Mount the BNC cable assembly into the
remaining space on the chassis, far right,
when looking at the chassis from the rear
with the BNC connectors close to the switch
assembly.
• Apply labels for added switches and
connectors.
• See picture.

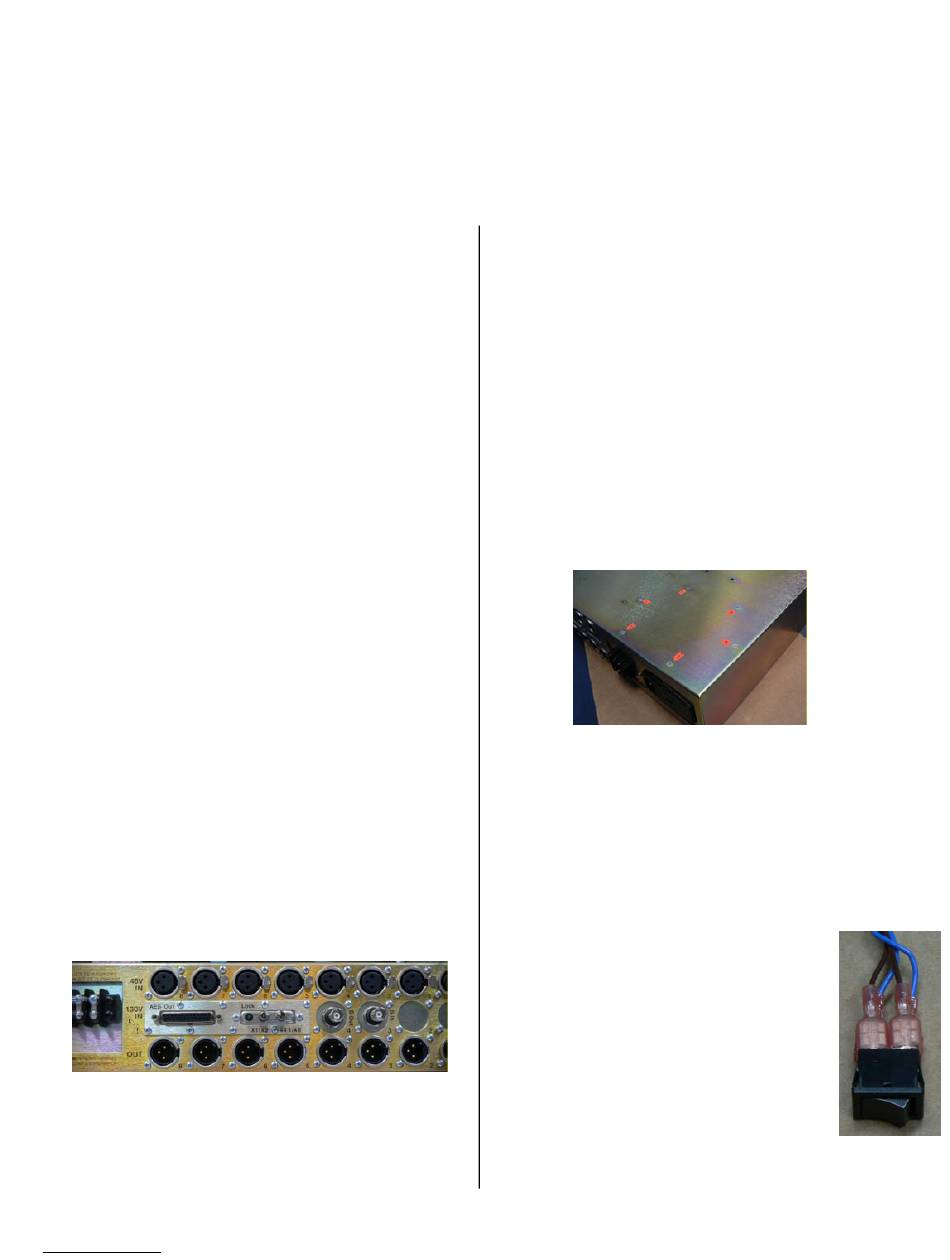

Figure 1
Millennia Media, Inc.
http://www.mil-media.com
2. Changing the power supply.
• Be sure power is disconnected from unit.
• Remove 4 (four )power supply cover screws and
put power supply cover in a safe place.
• Unplug power supply cable assembly from the
power supply board and from all preamp cards
and set aside. Note orientation of Molex
connectors for reassembly.
• Unplug front panel LED connector from power
supply board. Note orientation for reassembly.
• Unplug four connectors at the power switch.
Note orientation for reassembly. Remove six
screws holding the power supply chassis to the
main chassis from the bottom of the unit.
Remove the existing power supply assembly
from the HV3D unit.
• See picture.
Figure 2
• Place new power supply assembly in
chassis.
• Mount chassis with six screws removed
earlier. (Bottom of unit).
• BE SURE input power module is set to
correct voltage for your location. Next
to the power cord socket is a window
that displays the current setting.
• Plug switch harness into front
panel power switch. Brown wires
are on top
• See picture.
• Plug front panel LED connector into
power supply board.
4600 Missouri Flat Road
(530) 647-0750
060209
Figure 3
Placerville, CA 95667
Fax (530) 647-9921
