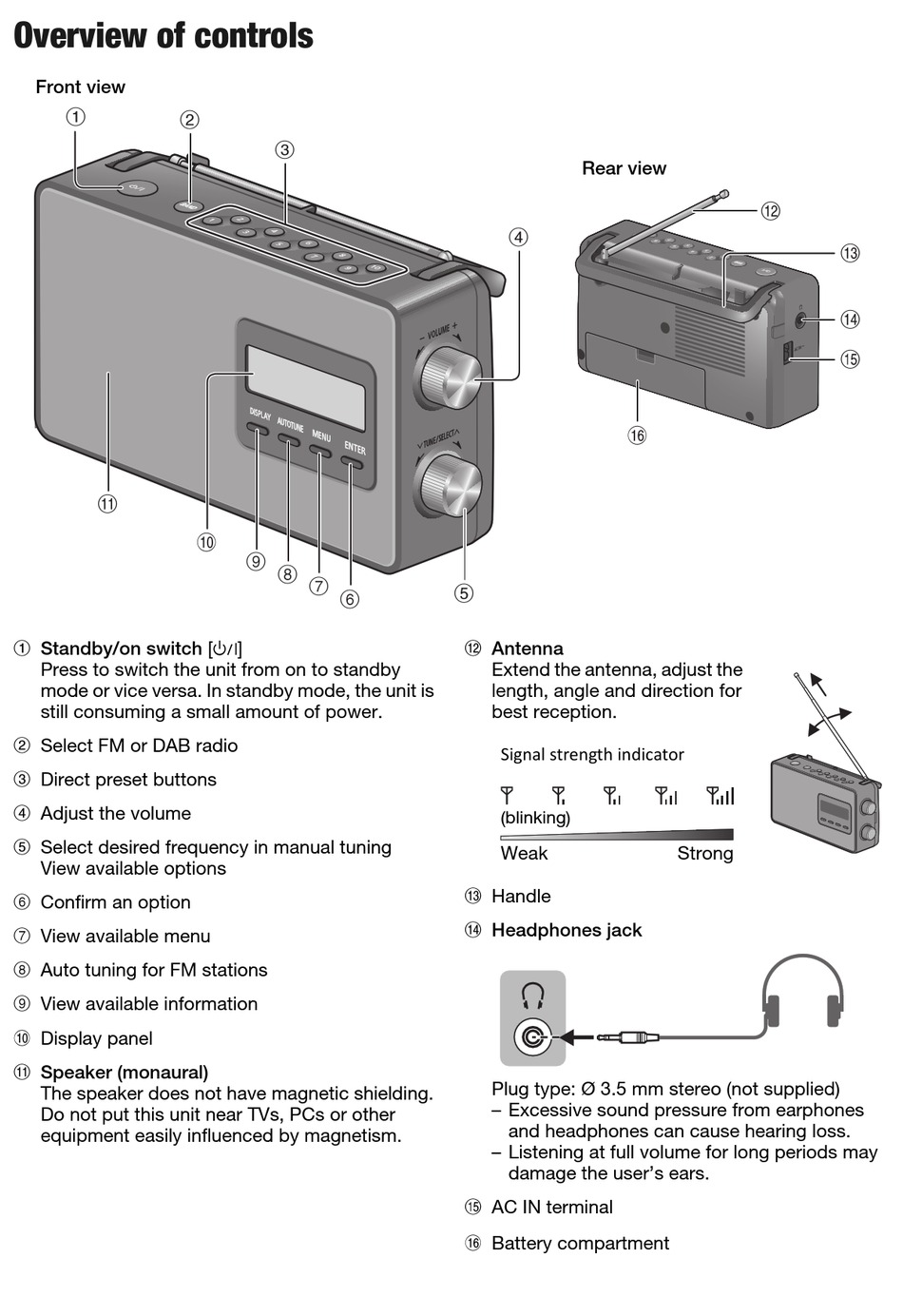

Overview of controls

Front view
1
2
K
A
Standby/on switch [1]
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit is
still consuming a small amount of power.
B
Select FM or DAB radio
C
Direct preset buttons
D
Adjust the volume
E
Select desired frequency in manual tuning
View available options
F
Confirm an option
G
View available menu
H
Auto tuning for FM stations
I
View available information
J
Display panel
K
Speaker (monaural)
The speaker does not have magnetic shielding.
Do not put this unit near TVs, PCs or other
equipment easily influenced by magnetism.
3
J
9
8
7
6
Rear view
4
5
L
Antenna
Extend the antenna, adjust the
length, angle and direction for
best reception.
Signal strength indicator
(blinking)
Weak
M
Handle
N
Headphones jack
Plug type: Ø 3.5 mm stereo (not supplied)
– Excessive sound pressure from earphones
and headphones can cause hearing loss.
– Listening at full volume for long periods may
damage the user's ears.
O
AC IN terminal
P
Battery compartment
L
P
Strong
M
N
O
5
