Models:
52210 – 15,000 RPM, 1/4"
52211 – 18,000 RPM, 1/4"
52212 – 20,000 RPM, 1/4"
52213 – 24,000 RPM, 1/4"
52260 – 15,000 RPM, 6mm
52261 – 18,000 RPM, 6mm
52262 – 20,000 RPM, 6mm
52263 – 24,000 RPM, 6mm
!
WARNING

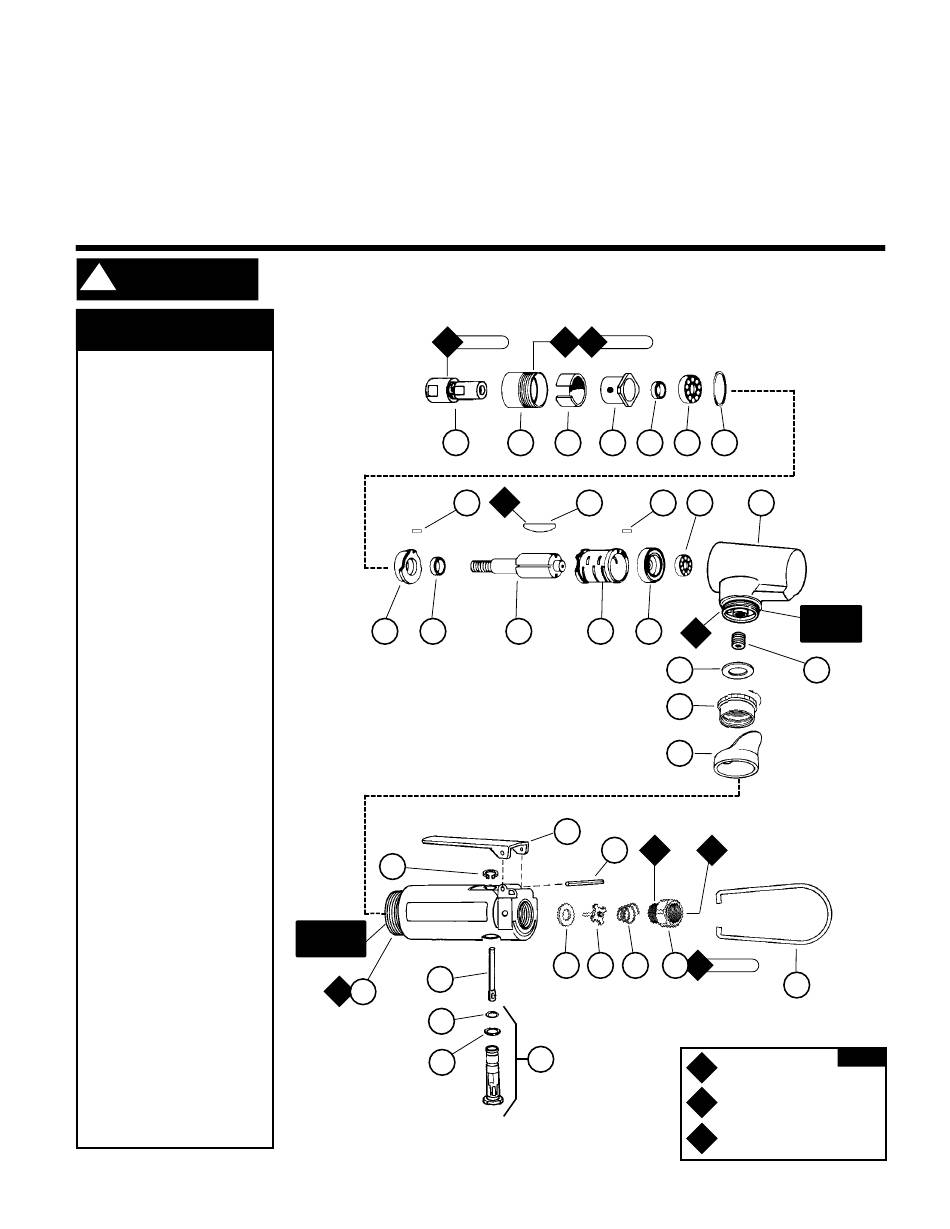

Index Key
No. Part
Description
1 50010 1/4" Collet Assembly
50015 6mm Collet Assembly
2 04087 Lock Ring
3 04078 Fabric Silencer
4 Air Control Silencer
01124 15,000 RPM
01125 18,000 RPM
04084 20,000 RPM
01126 24,000 RPM
5 01149 Spacer
6 01007 Bearing
7 01121 Shim Pack (3/Pkg.)
8 01008 Bearing Plate
9 50767 Pin (2)
10 01010 Spacer
11 01148 Rotor
12 01011 Blade (4/Pkg.)
13 01013 Cylinder
14 01014 Bearing Plate
15 01015 Bearing
16 01447 Motor Housing
17 01437 Plug
18 01548 Gasket
19 01461 Lock Nut
20 01558 Collar
21 01448 Throttle lever
01462 Safety Lock Lever
22 12132 Pin
23 95558 Retaining Ring
24 Housing
01581 1/4", 15,000 RPM
01582 1/4", 18,000 RPM
01583 1/4", 20,000 RPM
01584 1/4", 24,000 RPM
01849 6mm, 15,000 RPM
01868 6mm, 18,000 RPM
01870 6mm, 20,000 RPM
01874 6mm, 24,000 RPM
25 01449 Valve Stem
26 95730 O-Ring
27 01024 O-Ring
28 01469 Speed Regulator Assy.
29 01464 Seal
30 01472 Tip Valve
31 01468 Spring
32 01494 Inlet Bushing
33 50033 Hanger
See reverse side for Accessories and Important Operating, Maintenance and Safety Instructions.
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
.5Hp/7˚/Front Exhaust/Short Shank
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air
tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to
Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
T
8
10
23
Right Hand
Threads
25
A
24
8
26
27

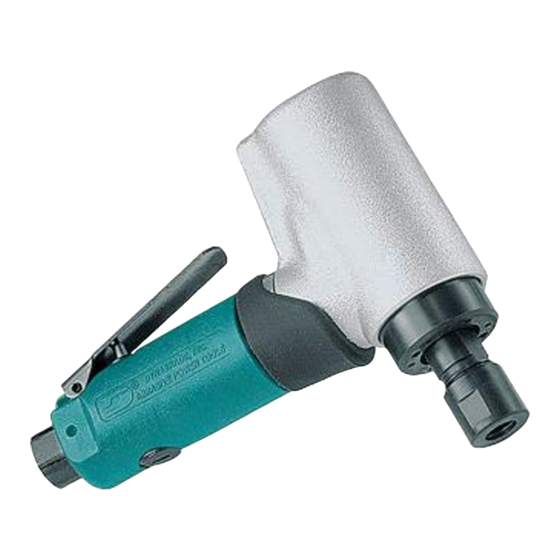

Die Grinder
A
34 N•m
17 N•m
T
8
1
2
3
4
O
9
12
1
11
13
21
22
29
30
31
28
Parts Page Reorder No. PD01•01
Effective January, 2001
Supersedes PD96•28
Air Motor and Machine Parts
5
6
7
9
15
16
Left Hand
A
14
Threads
8
18
17
19
20
A
O
8
1
32
T
23 N•m
33
Oil: O
= Air Lube
O
1
A
Adhesive: A
= Loctite #567
8
Torque: N•m x 8.85 = In. - lbs.
T
KEY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynabrade 52211
Summary of Contents for Dynabrade 52211
- Page 1 Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade Parts Page Reorder No. PD01•01 Effective January, 2001 Models: Supersedes PD96•28 52210 – 15,000 RPM, 1/4" 52211 – 18,000 RPM, 1/4" .5Hp/7˚/Front Exhaust/Short Shank 52212 – 20,000 RPM, 1/4" 52213 – 24,000 RPM, 1/4"...
- Page 2 Dynabrade’s Preventative Maintenance Schedule for a guide to expectant life of component parts. 5. It is strongly recommended that all Dynabrade rotary vane air tools be used with a Filter-Regulator-Lubricator to minimize the possibility of misuse due to unclean air, wet air or insufficient lubrication. Dynabrade recommends the following: 11405 Air Line Filter-Regulator-Lubricator — Provides accurate air pressure regulation, two-stage filtration of water contaminants and micro-mist lubrication of pneumatic components.
- Page 3 6. Check clearance between rotor and bearing plate by using a .001" feeler gauge. Clearance should be at .001" to .0015". Adjust clearance by repeating steps 1-5 with different shim if necessary. 7. Once proper rotor/gap clearance is achieved, install well lubricated 01011 Blades (4) into rotor slots. Dynabrade Air Lube P/N 95842 is recommended for lubrication.
- Page 4 Visit Our Web Site: www.dynabrade.com Email: Customer.Service@Dynabrade.com DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524 DYNABRADE EUROPE S.àr.l., Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 1 • Fax: 352 76 84 95 1 ©...
