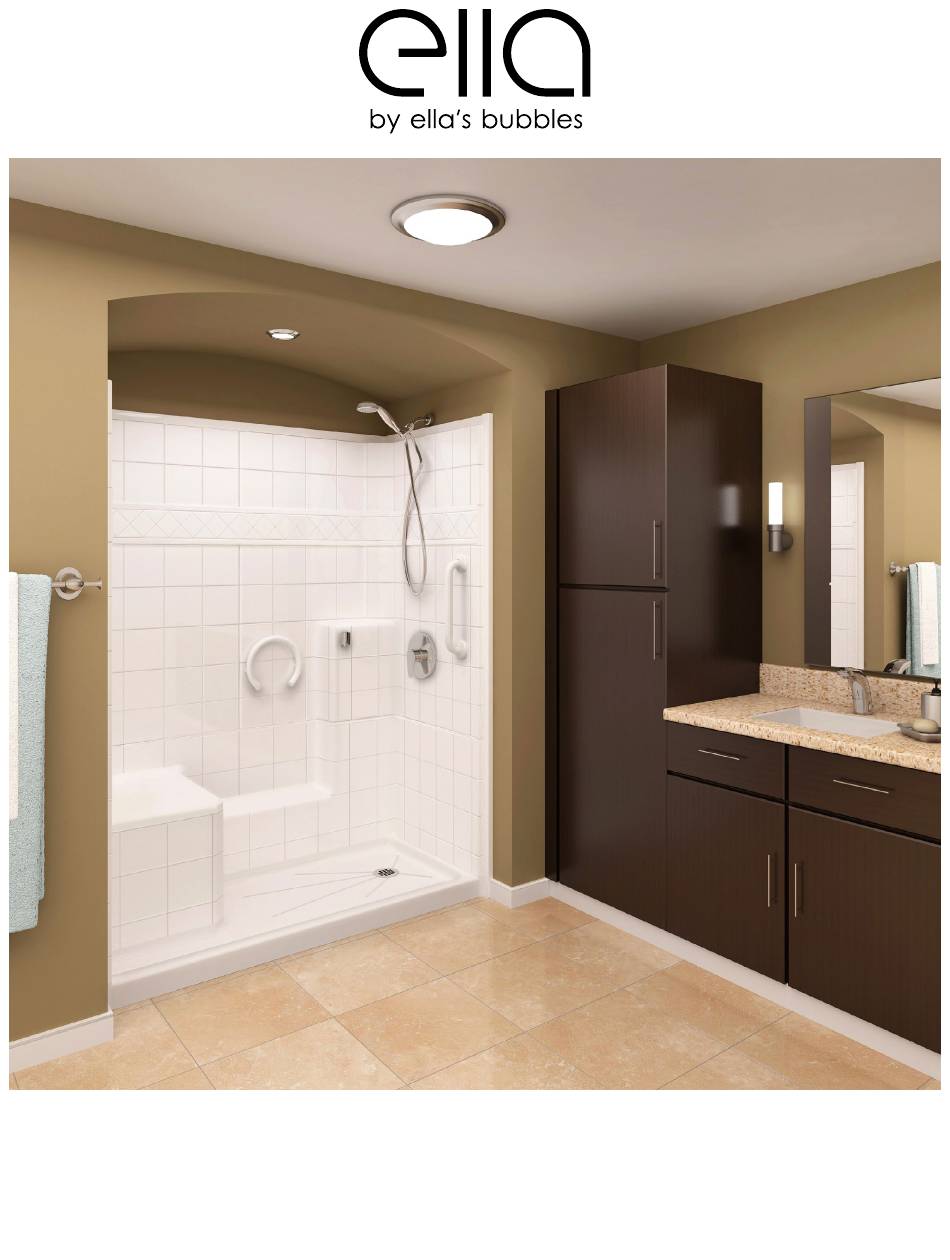

- Page 1 OWNER’S MANUAL Low Threshold Gelcoat Shower with Molded Seat 6032 SH 1S 3P 6032 SH 1S 3P...
- Page 2 Low Threshold Shower with Molded Seat Gelcoat & Solid Surface Bathware Tools/ materials you might need for proper installation • 6D galvanized screws • cardboard • 100% clear silicone caulking • china marker or grease pencil • caulking gun • furring strips •...
- Page 3 3P Shower Installation Instructions Gelcoat & Solid Surface Bathware FRAMING DIAGRAM FOR 3 PIECE SHOWER FIGURE 1 Box out for sub floor 6” x 6” core minimum size required * Framing pocket required to provide 60” mim- imum and 60 1/4” maximum width x 33 1/4” deep Wood Shims FIGURE 2 FIGURE 3...
-
Page 4: Installation Instructions
3P Shower Installation Instructions Gelcoat & Solid Surface Bathware INSTALLATION INSTRUCTIONS 1. Carefully remove the three parts from the packaging and inspect the shower closely for any shipping damage. It is very important to dry assemble the shower in an open space for the purpose of inspecting the shower for fit, finish and defects before moving the shower into the construction area. - Page 5 3P Shower Installation Instructions Gelcoat & Solid Surface Bathware Do not slide shower base on protruding drain fitting. See Figure 3 7. Once unit is perfectly level, use marker or grease pen to mark studs at top and bottom edge of flanges as a visual guide. Use 1/8” countersinking bit to drill pilot holes.
- Page 6 3P Shower Installation Instructions Gelcoat & Solid Surface Bathware Prepare the seat side wall for permanent installation. Apply a bead of caulk on the shower base from the front corner to the center line of back wall using 100% clear silicone adhesive caulk. This procedure will prominently adhere the wall to the base and seal off any moisture from the wall cavity.
- Page 7 3P Shower Installation Instructions Gelcoat & Solid Surface Bathware 16. Measure, and mark locations for mounting holes on the flanges of the wall panels. Mark horizontal so each hole matches up with a stud, (16” on center). Mark every 8” on center for the vertical flanges at the front of the unit.
-
Page 8: Installation Diagram
3P Shower Installation Instructions Gelcoat & Solid Surface Bathware INSTALLATION DIAGRAM 3 Pins at center seam 1 Pin on base UNDER SIDE VIEW OF BASE SIDE VIEW OF BASE Add form shim to bottom of leveling leg Wood bottom boards Trim Foam 1”... -
Page 9: Limited Warranty
Low Threshold Shower with Molded Seat Gelcoat & Solid Surface Bathware LIMITED WARRANTY Ella’s Bubbles, LLC., distributor of private labeled showers, manufactured by Praxis Companies for Ella’s Bubbles, warrants by Praxis Companies to the owner of its gelcoat fiberglass shower units as follows: Units manufactured of fiberglass reinforced polyester resin, that it will, free of charge, repair any Praxis Companies unit found to be defective in material or workmanship upon inspection by an authorized representative of Praxis Companies for a period of thirty (30) years from the date of purchase. -
Page 10: Installer's Information
Warranty Activation Form INSTALLER’S INFORMATION Name Address City State Telephone Email Date Signature Upon completing the installation of an Ella Walk In Bath, the following Warranty Activation Form must be completed, signed by both the customer and installer, and returned to Ella’s Bubbles, LLC. In order for the Warranty to be activated (faxed, scanned, or emailed, or hard copy mailed). -
Page 11: Owner's Information
Warranty Activation Form OWNER’S INFORMATION Name Address City State Telephone Email Date Signature Model Serial Number Purchase Date Purchase Price Place of Purchase Contact Name Telephone ** Copy of sales receipt must be included with warranty activation forms. To activate manufacturer’s warranty, please complete both pages and use one of the following options below to submit. Mail: Ella’s Bubbles, LLC.
