Qlight QWH35 Operating Manual

ww w.qlight.com
QWH35/QWH35SD
OPERATING MANUAL
Wall Mount Electric Horn with Pre-Recorded
Special Warning Sound
Thank you for purchasing Qlight product. Please read this
manual carefully before installing this product for safe and
long use.
1

Feature

▪ There are 31 built-in sounds that can be played in various
environments,
▪ User can select MP3 file by themselves in case of SD card
type model
▪ Sound pattern selection switch, volume controller and built-in
SD card reader realize convenient control.
▪ Protection rating IP66 allows excellent air tightness where is
dusty and outdoor place
▪ Ambient temperature : QWH35
QWH35SD
▪ Materials : Horn-PC, Housing-PC+ABS BLEND
▪ Volume : QWH35 - Max. 115dB
QWH35SD- Max. 113dB(MP3)
2

Specification and Dimension

▪ QWH35/QWH35SD Specification
Model
Voltage Current
Name
DC12V~24V Max.0.93A
QWH35
AC110V~
Max.0.30A
220V
DC12V~24V Max.0.98A
QWH35
AC110V~
SD
Max.0.27A
220V

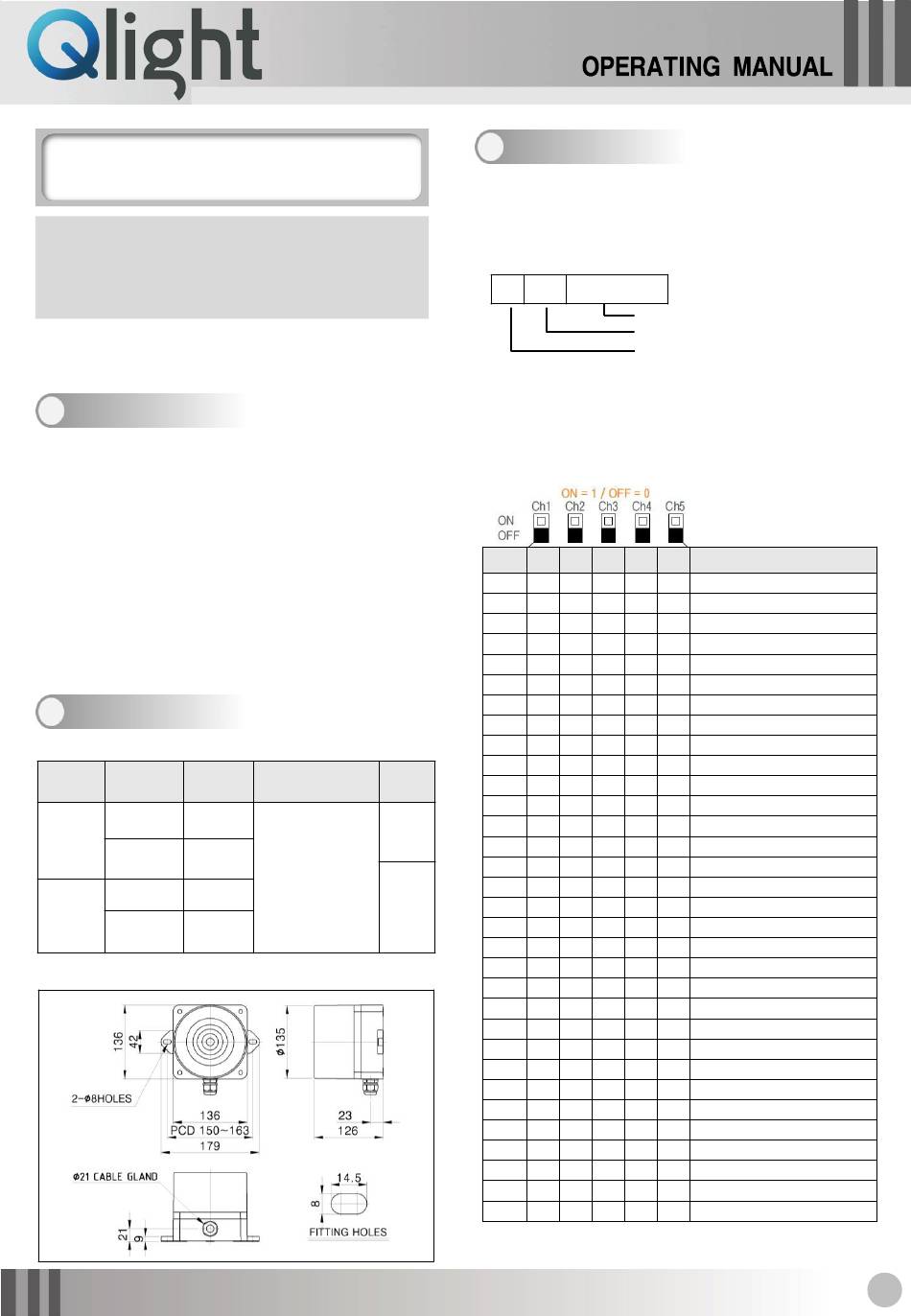

▪ QWH35/QWH35SD Dimensional drawing
-30°C to +50°C
-20°C to +50°C
Built-in Sound
Weight
(Kg)
and Volume
▪ Bit Input : 5Ch
0.9
(SD card only)
▪ Binary Input : 31Ch
▪ Warning sound :
Max. 115dB 0.9
▪ MP3 : Max. 113dB
3

Sound patterns and selection

▪ This product supports Bit input(SD Card) and Binary input mode.
▪ Bit input mode is specialized option for SD card. 5 sound tones can
be played as pre-defined rule.
▪ Following is how to save MP3 files into SD card.
23 _ For Elise
File name 20 Koreans, 40 Alphabets
Separator between file number and title
No. of message 01 to 31
▪ Binary input mode can played 31 sound tones by using combination
of 5ch switch.
No. 1 2 3 4
0 0 0 0 0
1 0 0 0 0
2 0 0 0 1
3 0 0 0 1
4 0 0 1 0
5 0 0 1 0
6 0 0 1 1
7 0 0 1 1
8 0 1 0 0
9 0 1 0 0
10 0 1 0 1
11 0 1 0 1
12 0 1 1 0
13 0 1 1 0
14 0 1 1 1
15 0 1 1 1
16 1 0 0 0
17 1 0 0 0
18 1 0 0 1
19 1 0 0 1
20 1 0 1 0
21 1 0 1 0
22 1 0 1 1
23 1 0 1 1
24 1 1 0 0
25 1 1 0 0
26 1 1 0 1
27 1 1 0 1
28 1 1 1 0
29 1 1 1 0
30 1 1 1 1
31 1 1 1 1
.mp3
5 Sound tone
0 No sound
1 Rel rel rel
0 Slow Ambulance PI-PO
1 Oit Oit warning sound
0 Emergency WA-U(Yelp)
1 Pi- buzzer
0 7 Short PI / 1 Long
1 Pi o Pi o
0 Phone Ring
1 Pi- buzzer
0 Pi pi pi short
1 Di o Di o 2 tones buzzer
0 Oit Oit warning sound
1 Slow Ambulance PI-PO
0 Slow Di o Di o
1 Fast Li o li o
0 Fire.A-ANG
1 Fast Ambulance PI-PO
0 Slow Ambulance PI-PO
1 Ri ro ri ro warning sound
0 Repeat Di-o 3 times
1 Fire.A-ANG
0 Ambulance PI-PO
1 Slow Fire.A-ANG
0 Pi-pi- buzzer low frequency
1 Pi-pi- buzzer high frequency
0 Di-di- buzzer high frequency
1 Di-di- buzzer low frequency
0 Rising Po-ong
1 Fast Ambulance PI-PO
0 Rising frequency
1 Repeat A-ANG
1
