INSTALLATION AND SERVICE MANUAL
For Installation of Arizona light column dia 160mm LED.
Model. AR-21012

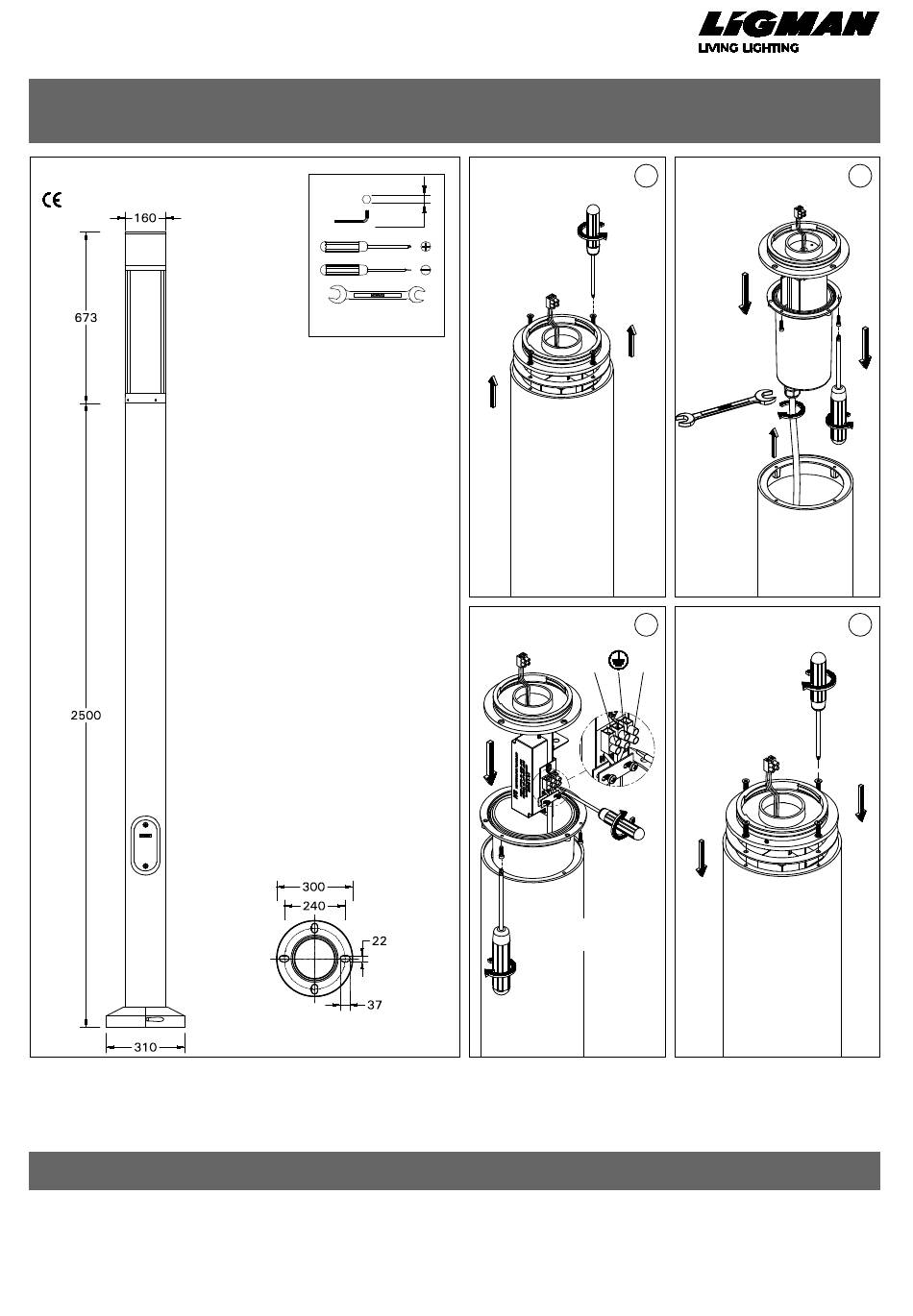

Product drawing (dimensions)
IP65 CLASS I IK08
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g
Europe Headquarters
Ligman Europe s.r.o.
VGP Park Usti nad Labem, P 2
Prestanov 113
403 17 Prestanov
Czech Republic
Tel. +420 608 740 504
sales.cz@ligman.com
|
www.ligman.com
2.5,3,5
TOOL
MOUNTING DETAIL
Thailand Headquarters
Ligman Lighting Co., Ltd.
17/2 Moo 4, Monthong, Bangnampreaw
Chachoengsao 24150 Thailand
Tel : +66 (2) 7339140
info@ligman.com
M AR-21012/08/06/17/REV.2
Torque : 0.25 Nm.
N
Torque : 3.0 Nm.
1/2
1
Torque : 3.0 Nm.
3
L
Torque : 3.0 Nm.
Ligman Ltd
Regus House, Victory Way
Crossways Business Park
Dartford DA2 6QD
Tel. 0800 975 0622
sales.uk@ligman.com
FM-TS-13-1/13-03-2561/REV.4
2
4
