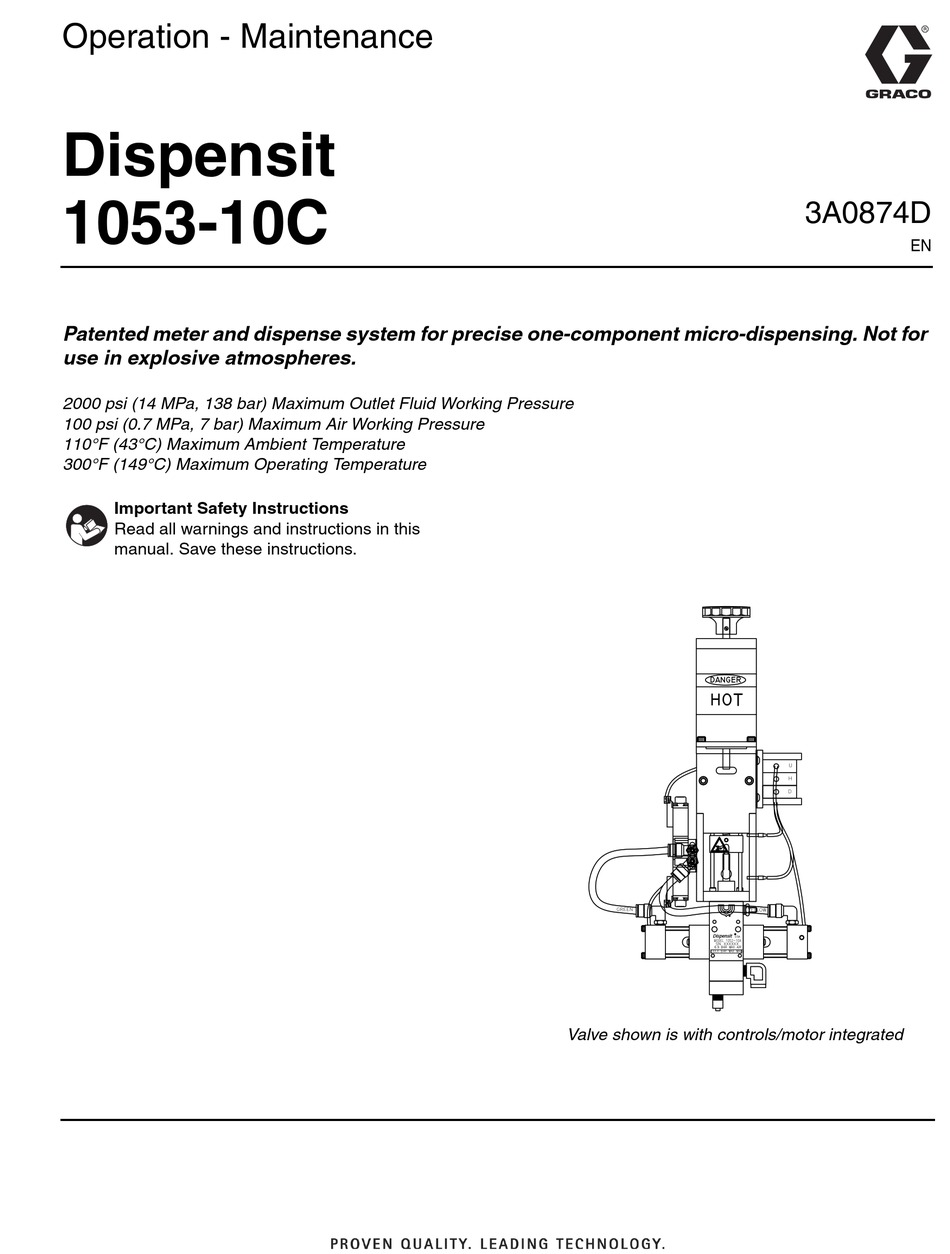

Operation - Maintenance
Dispensit
1053-10C
Patented meter and dispense system for precise one-component micro-dispensing. Not for
use in explosive atmospheres.
2000 psi (14 MPa, 138 bar) Maximum Outlet Fluid Working Pressure
100 psi (0.7 MPa, 7 bar) Maximum Air Working Pressure
110°F (43°C) Maximum Ambient Temperature
300°F (149°C) Maximum Operating Temperature
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
GREEN
R
Dispensit
R
USA
MODEL 1052-10A
SN XXXXXX
6.9 BAR MAX AIR
XX.X BAR MAX MAT'L
Valve shown is with controls/motor integrated
3A0874D
EN
U
H
D
YELLOW
Advertisement
Table of Contents
Related Manuals for Graco Dispensit 1053-10C
Summary of Contents for Graco Dispensit 1053-10C
- Page 1 Operation - Maintenance Dispensit 1053-10C 3A0874D Patented meter and dispense system for precise one-component micro-dispensing. Not for use in explosive atmospheres. 2000 psi (14 MPa, 138 bar) Maximum Outlet Fluid Working Pressure 100 psi (0.7 MPa, 7 bar) Maximum Air Working Pressure 110°F (43°C) Maximum Ambient Temperature 300°F (149°C) Maximum Operating Temperature Important Safety Instructions...
-
Page 2: Table Of Contents
Graco Standard Warranty ....26 Graco Information ......26... -
Page 3: Warnings
Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable. - Page 4 Warnings WARNING ELECTRIC SHOCK HAZARD This equipment must be grounded. Improper grounding, setup, or usage of the system can cause elec- tric shock. • Turn off and disconnect power cord before servicing equipment. • Use only grounded electrical outlets. • Use only 3-wire extension cords.
-
Page 5: Isocyanate Conditions
Isocyanate Conditions Isocyanate Conditions • Keep the ISO lube pump reservoir (if installed) filled with Graco Throat Seal Liquid (TSL), Part 206995. The lubricant creates a barrier between the ISO and the atmosphere. Spraying or dispensing materials containing isocya- •... -
Page 6: Grounding
Grounding Grounding Cycle Detection Spool Sensors The spool sensors are magnetic reed switches and must be connected to an electrical control. An LED on the switch illuminates to indicate the shifting of the spool. This product must be grounded. In the event of an elec- trical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric cur- rent. -
Page 7: Component Identification
Component Identification Component Identification Typical System Configurations Valve Controls CONTROL POWER GREEN YELLOW Dispensit MODEL 1052-10A SN XXXXXX 6.9 BAR MAX AIR XX.X BAR MAX MAT'L System shown with optional controls 3A0874D... -
Page 8: Typical Feed System Components
Component Identification Typical Feed System Components 5 Gallon Pail Cover 5 Gallon Pail Cover with Diaphragm with Diaphragm Pump Pump and Agitator 20 oz Cartridge Feed with Mounting Post 1 Gallon Ram and Pump WARNING DO NOT SERVICE WITHOUT REMOVING AIR PRESSURE AND WEARING SAFETY GLASSES. -
Page 9: Typical Feed System Components (Continued)
Component Identification Typical Feed System Components (continued) 5 Gallon Tank with Diaphragm Pump and Stand 5 Gallon Tank with 5:1 Pump and Stand 10 Gallon Tank with Diaphragm Pump, Agitator, 10 Gallon Tank with 5:1 Pump, Agitator, Vacuum, Vacuum, and Stand and Stand 3A0874D... -
Page 10: Metering Valve
Component Identification Metering Valve NEMA-23 MOTOR Key: Material Inlet Dispense Air Inlet Drive Coupling Spool Sensor Close Grounding Lug Reload Air Inlet Motor Spool Sensor Open Spool Lower Sensor Sensor Amplifiers Needle with Adapter Metering Rod Upper Sensor Oil Cup Oil Cup Retaining Drive Nut Wet Cups... -
Page 11: Setup
Setup Setup NOTE: See Typical Installation diagram. 3. Connect each 1/4 in. outside diameter supplied air line to the corresponding control solenoid. See 1. Perform Setup procedure for feed system compo- Component Identification starting on page 7. nents. See feed system manual(s). 4. -
Page 12: Valve Mounting Diagram
Setup Valve Mounting Diagram As desired, use the following diagram to mount the metering valve. NOTE: Valve shown is for controls/motor integrated. For valve without controls/motor integrated, mount- ing pattern is the same just less LS-Home, solenoid open/close and all the wires terminated at a plug. NEMA-23 MOTOR 1.700... -
Page 13: Motor Mounting Diagram
Setup Motor Mounting Diagram If using a non-Graco motor with the dispense valve, use the following diagram to install the non-Graco motor onto the valve. See Motor Specifications on page 25. 2.22 2.039 0.182 0.182 Ø 0.251 STANDARD 2.039 2.22... -
Page 14: Startup
Startup Startup 1. Lubricate the metering rod port in the oil cup retain- ing block and fill the spool valve ports with compati- ble lubricant such as mesamoll or silicone oil. Metering Rod Port (oil cup) Spool Valve Ports (wet cups) . -
Page 15: Operation
Operation Operation Step 2: Shift The operation of the 1053 metering valve is controlled by an external source. If a Control Box was purchased, see the Control Box manual for operation instructions. See Related Manuals on page 2. Sequence of Operation Step 1: Reload •... -
Page 16: Pressure Relief Procedure
4. Dispense 5 shots. Shots should be at least 75% of the full stroke. Air Dryer 5. Extend the metering rod into the tubes. If Graco Check the condition of the desiccant air dryer. Replace controls are provided with the system, see the Con- as necessary. -
Page 17: Troubleshooting
Troubleshooting Troubleshooting Perform Pressure Relief Procedure before perform- ing any troubleshooting procedure. Problem Cause Solution Metering valve stalling and no mate- Blocked needle Check needle for cured material, rial being dispensed despite ade- replace as required quate input pressure Metering valve not discharging nor- Low material level in reservoirs Fill material reservoirs and prime the mal or full volume... -
Page 18: Rebuild
Rebuild Rebuild Before proceeding, remove material feed line and pump 13. Remove Metering Rod (1) from Connection Block material out of the valve. Shut power off from control (18). panel and disconnect main power. Disconnect the motor wire harness from the system. Loosen the home and NOTE: Only perform the steps below if the Motor spool sensor set screws. -
Page 19: Model 1053-10C General Illustration
Rebuild Model 1053-10C General Illustration Metering Rod Seal Plate (2) Valve Piston (2) Screw ('2) Seal Cup Screw (4) Valve End Cap (2) Valve Body Seal Retainer (2) Screw (8) Screw (2) Side Block (2) Dispense Sleeve Screw (8) Connection Block Screw (4) Top Block Lead Screw Nut... -
Page 20: Assembly
Rebuild Assembly 8. Place lubricated O-ring (29) over the Dispense Sleeve (27) and against the Valve Body (3). Before proceeding, remove any old o-rings or seals from 9. Insert the Seal Cup (2) into the Bottom Block (11). the valve and discard, clean the valve parts with an appropriate solvent and replace o-rings and seals with 10. - Page 21 Rebuild 20. Lubricate the bore in the End Cap (25). Slide the Spool Shift Piston (24) into the left End Cap (25) tucking the lip of the U-cup seal (24) into the End Cap (25) carefully. 21. Install the Piston/End Cap onto the left Seal Plate (14) using four Screws (26).
-
Page 22: Motor And Motor Coupling Assembly
Rebuild Motor and Motor Coupling Assembly Disconnect electrical power before servicing the motor and motor coupling assembly. Refer to the illustrations on the following page. 1. Assemble Motor Coupler (3) by inserting Roll Pins (5) and Screws (4). Note: This step is only required if the motor coupler has been disassembled for service or removed from the motor. -
Page 23: Motor And Motor Coupling Illustration
Motor and Motor Coupling Illustration Motor and Motor Coupling Illustration Pin Alignment DESCRIPTION MOTOR MOUNTING PLATE BEARING RETAINING SLEEVE MOTOR COUPLER SCREW, SHC,#6-32x3/8 ROLL PIN, 1/8 DIA.x 1/2 LEAD SCREW NUT LEAD SCREW E-RING BEARING SCREW,SHC,#10-32x1/2 DIVORCED SECTION METERING ROD CONNECTION BL0CK SET SCREW, #8-32x3/16 SCREW,SHC,#10-32x1/2 SCREW,SHC,#6-32x 3/8... -
Page 24: Electrical Requirements
Electrical Requirements Electrical Requirements See Related Manuals on page 2 for valve with controls/motor integrated. Valve shown is with controls/motor not integrated. Valve with controls/motor integrated comes with LS-Home, sole- noid - OPEN/CLOSE and all wires terminated at a plug. LABEL LS-UP AMPLIFER,1CHANNEL,OPTICAL FIBER PHOTOELECTRIC SENSOR,... -
Page 25: Technical Data
........ -
Page 26: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
