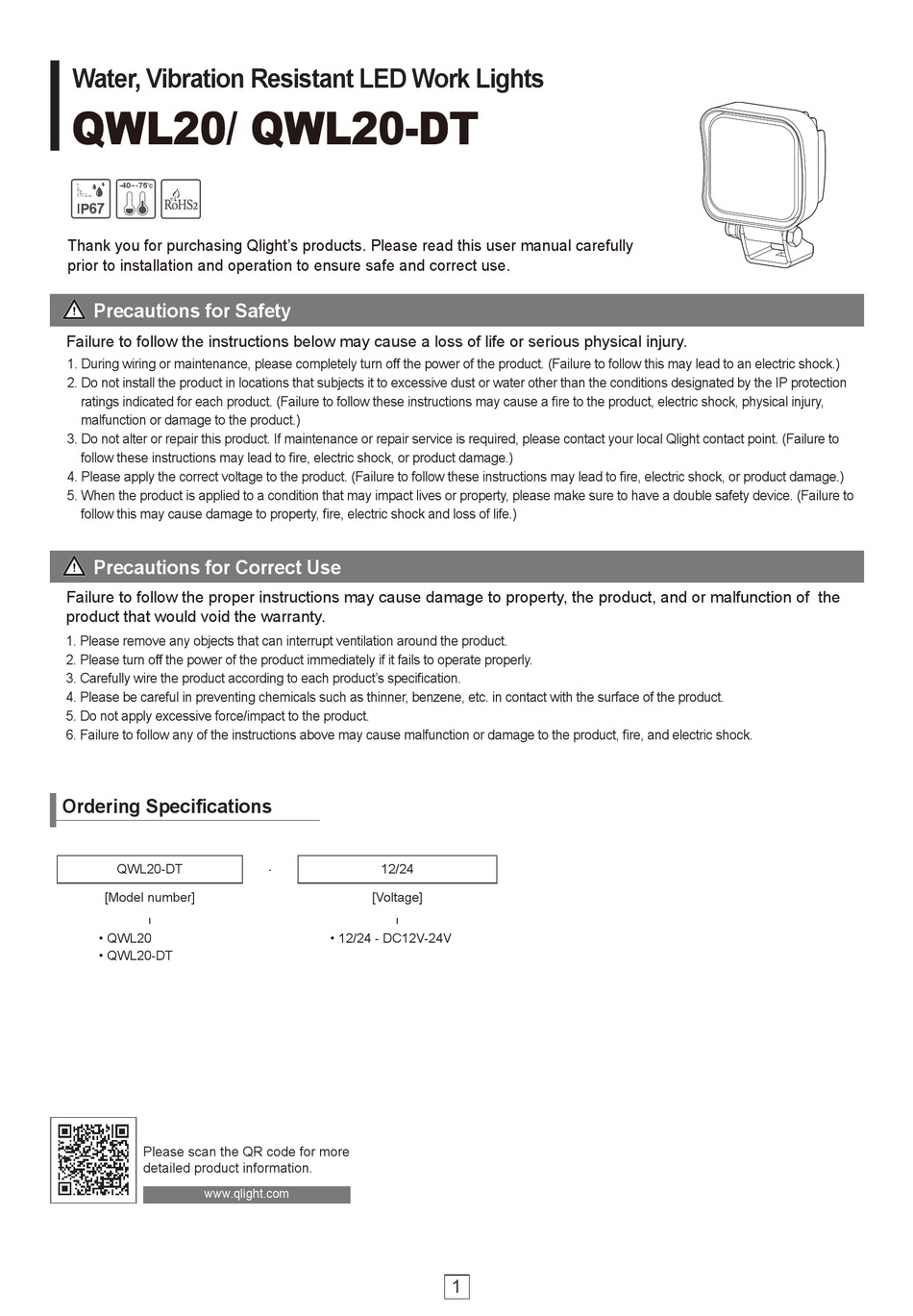

Water, Vibration Resistant LED Work Lights
QWL20/ QWL20-DT
40
75
67
Thank you for purchasing Qlight's products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to fire, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, fire, electric shock and loss of life.)
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, and or malfunction of the
product that would void the warranty.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product's specification.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, fire, and electric shock.
Ordering Specifications
QWL20-DT
[Model number]
|
• QWL20
• QWL20-DT
Please scan the QR code for more
detailed product information.
www.qlight.com
-
12/24
[Voltage]
|
• 12/24 - DC12V-24V
1
Advertisement
Table of Contents
Related Manuals for Qlight QWL20
Summary of Contents for Qlight QWL20
- Page 1 3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to follow these instructions may lead to fire, electric shock, or product damage.) 4.
- Page 2 Product Specifications ■ Optics Specifications ■ General Product Specifications Model number Model number QWL20 QWL20-DT QWL20 QWL20-DT Lens color Translucent Rated voltage DC12V-24V Range for operation Light color (Standard) Cool daylight DC10V-30V voltage Color temperature 5,500-6,500K Power consumption (Standard) Luminous flux Insulation resistance Min.
- Page 3 Parts Definition/ Bracket Adjustment ■ Parts Definition QWL20 / QWL20-DT Housing(Al) Lens(PC) Bracket(STS) ① ■ Bracket Adjustment • In case angle adjustment is needed after installation, please slightly loosen the bolt (1) and adjust the angle as desired, and fasten the bol later Installation/ Mounting Hole Specifications ■...
- Page 4 Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111) Qlight OverSEAs Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100 Qlight Public Relations & Marketing Team Office | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017 Qlight USA, Inc. www.qlight.com www.qlightusa.com | sales@qlightusa.com 3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel.
