Alpha-InnoTec GmbH
Industriestrasse 3, D-95359 Kasendorf
Tel.: 09228 99060
Fax.: 09228 990629
www.alpha-innotec.de
e-mail:info@alpha-innotec.de

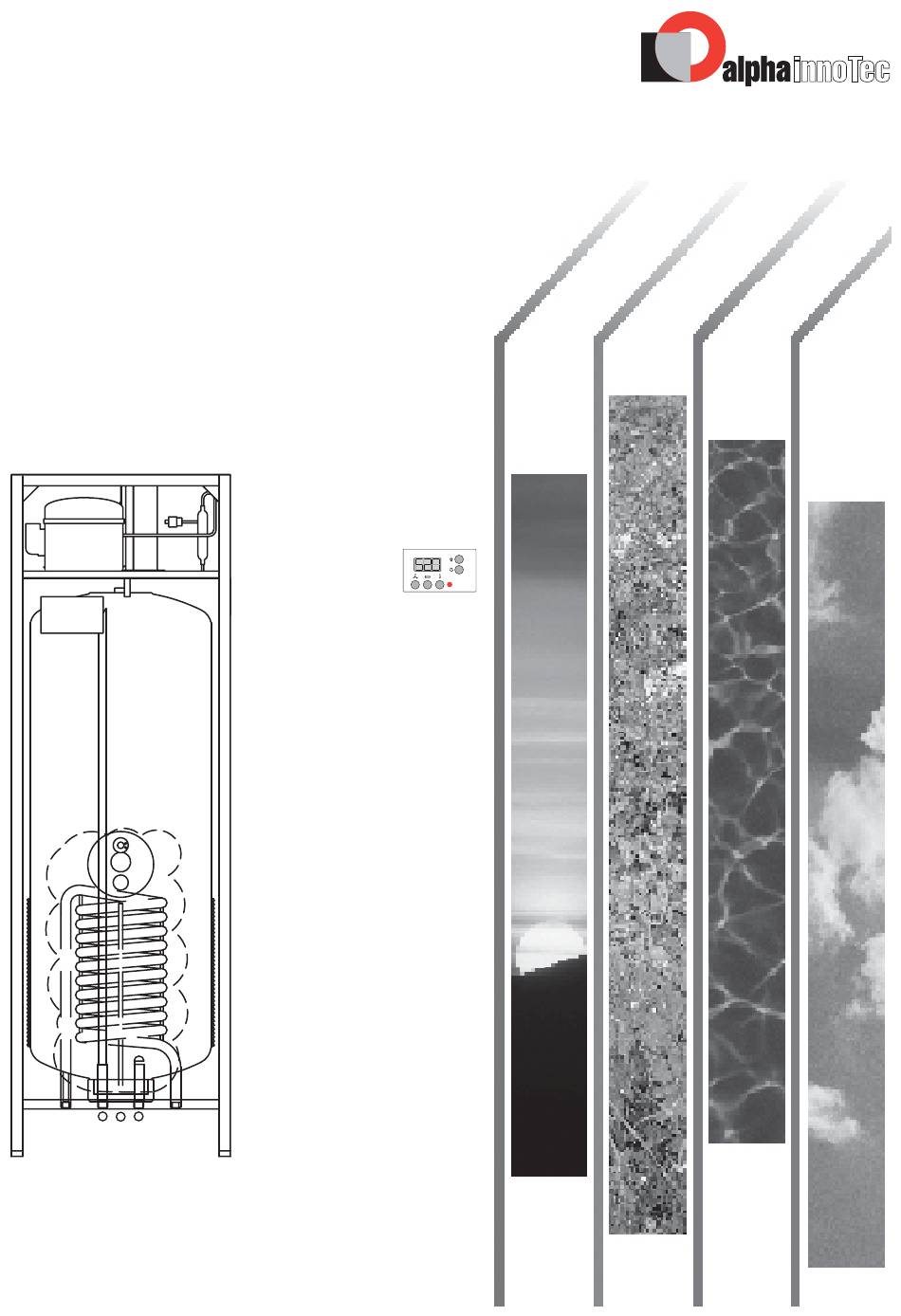

INSTRUCTION MANUAL
with Product Information

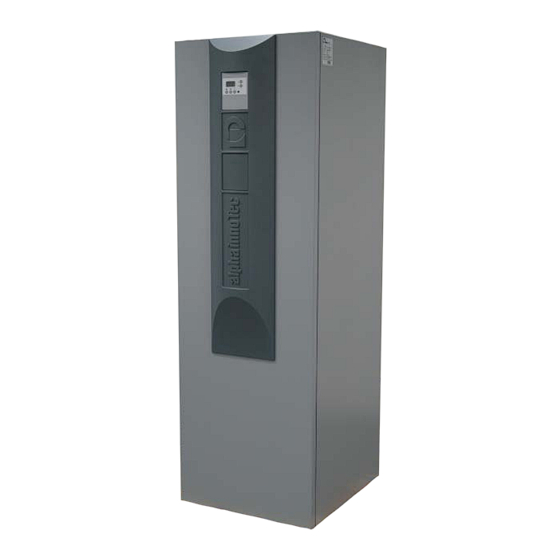

Domestic Hot Water Heat Pump
This instruction manual is part of the scope of supply and must be handed over to the user
of the plant. Please keep safely and show to competent persons, if necessary..
830130GB/150111
BWP 310
With control
Ventronik BWP
-
We reserve the right to make technical changes
-
1
Advertisement
Table of Contents
Related Manuals for alphainnoTec BWP 310
Summary of Contents for alphainnoTec BWP 310
- Page 1 INSTRUCTION MANUAL with Product Information Domestic Hot Water Heat Pump BWP 310 With control Ventronik BWP This instruction manual is part of the scope of supply and must be handed over to the user of the plant. Please keep safely and show to competent persons, if necessary..
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page Product description Scope of supply / Accessories Prescriptions / Safety regulations Transport / Assembly Connections Start-up Maintenance Errors / Trouble shooting Environment Refrigeration circuit Hydraulic schematic Capacity / Construction Technical data Control Ventronik BWP Connection diagram EU-Statement of Conformity Guarantee Conditions We reserve the right to make technical changes... -
Page 3: Product Description
● Anode stallation etc. Supported by electric power, the BWP 310 uses the heat of the ambient air for the domestic water heating. The sto- rage includes an immersion sleeve to be used for an ex- ternal boiler thermostat respectively a sensor (diameter 6 mm) of an external regulation. -
Page 4: Prescriptions / Safety Regulations
● Consider the accident prevention regulations in accor- dance with (VBG 20). ● When doing works at the BWP 310, all electric circuits must be switched off (unplug the power plug). ● The electrical installation of the BWP 310 must be car-... -
Page 5: Transport / Assembly
Transport with the lift truck Connection of the water conduits For the transport with the lift truck, the BWP 310 must be The nominal width of the conduits for on-site installation secured to the pallet. The lifting speed must be kept low. -
Page 6: Connections
For inserting the air duct connectors (accessories), the densed water is separated. The condensate overfl ow (15 cover of the casing of the BWP 310 must be opened (20 mm inside diameter) at the rear side of the heat pump crosshead screws). - Page 7 BWP 310 Connections The water connections are on the rear side of the heat pump: Condensed water tube Cold water inlet Domestic hot Domestic hot water- water outlet circulation Central at the front side, under the front panel: Heating element + sensor + anode...
-
Page 8: Start-Up
On the domestic hot water side, the following material may domestic hot water temperature at the BWP 310 (P3). This be included in the water circuit: means that the boiler operates in parallel to the BWP 310 in case of large domestic hot water requirements. - Copper... -
Page 9: Maintenance
BWP 310 Maintenance For optimal operation of the BWP 310, consider the follo- Condensate tray and condensate overfl ow: wing: When cleaning the fan, the condensate tray must be clea- ned at the same time. Fill water in the tray and test whether it runs off smoothly. -
Page 10: Errors / Trouble Shooting
BWP 310 Errors / Trouble Shooting The heat pump does not work! Safety devices The domestic hot water heat pump is provided with the Check the following: following safety devices: ● The plug is plugged in correctly? High temperature limiter (HD) ●... -
Page 11: Environment
BWP 310 Environment Shut-down Environment demands When servicing or shutting down the BWP 310, consider To do: the environmental demands referring to recycling, reutili- sation and disposal of operating materials and compon- ● Switch off the domestic hot water heat pump ents in accordance with DIN EN 378. -
Page 12: Refrigeration Circuit
BWP 310 Refrigeration - / hydraulic schematic Evaporator Verdampfer Luft Luft High pressure control Hochdruckpressostat Domestic hot Solar collec- Brauchwarm- water tank tor /wooden Sonnenkollektor/ wasserspeicher Holzkessel boiler Compressor Verdichter T5: Vor Verdampfer Condenser at Verflüssiger T6: Verdampfer the tank... -
Page 13: Hydraulic Schematic
BWP 310 Hydraulic schematic Heating circuit Heizkreis Domestic hot water Brauchwarmwasser- heat pump Wärmepumpe Heating pump Heizungspumpe Boiler Heizkessel Ventilation Entlüftung Boiler pump Boilerladepumpe Sensor line Fühlerleitung Discharge Entleerung Cold water supply Kaltwasseranschluss TKW acc. TKW nach to DIN 1988... -
Page 14: Capacity / Construction
BWP 310 Capacity Within 24 hours, the BWP 310 can heat a domestic hot water volume of approximately 380 litres to 55°C. The actual quantity depends on the heat source temperature, the inlet temperature of the fresh water and the type of extraction. An additional hea- ting element with a capacity of 1 kW can be connected to cover peak-periods. -
Page 15: Technical Data
BWP 310 Technical data Conformity Installation Inside Protection fan IP 44 Size (H x W x D) excl. connectors 1870 x 600 x 664 Weight without water / weight with water 210 kg / 500 kg Voltage, cable + plug with earthing contact, length 2m... -
Page 16: Control Ventronik Bwp
This ap- be switched on if needed. plies if the BWP 310 will be used as exhaust air heat pump for When setting the set point to 0, the heating element will the wet rooms of the apartment. - Page 17 Control Ventronik BWP High pressure control Description of the menu items A high pressure control switching off the compressor at too high pressure is included in the compressor. The high pressure con- E0: Factory-setting trol makes sure the compressor will not exceed the application If the system does not work as requested with the adjusted limits.
- Page 18 Control Ventronik BWP E20: Wooden boiler/solar collector hysteresis E45: dT-Air In case a wooden boiler respectively a solar collector is involved, This parameter defi nes the lowest cooling down of the air desired you can defi ne from which temperature difference between the during the water heating.
-
Page 19: Connection Diagram
BWP 310 Connection Diagram High pressure control Accessories Sensor solar collector Sensor domestic water Sensor heating element Sensor evaporator Sensor before evaporator Brown Blue (Version 230 V AC) 830130GB/150111 We reserve the right to make technical changes... - Page 20 We reserve the right to make technical changes 830130GB/150111...
-
Page 21: Eu-Statement Of Conformity
BWP 310 EU Statement of Conformity The undersigned The undersigned confi rms that the following designated device(s) having the design distributed by us meet(s) the requirements of the harmonised EU directives, EU safety standards, and product-specifi c EU standards. This statements ceases to be valid in the event of a change to the device(s) that has not been approved by us. - Page 22 We reserve the right to make technical changes 830130GB/150111...
- Page 23 830130GB/150111 We reserve the right to make technical changes...
- Page 24 Alpha-InnoTec GmbH Industriestrasse 3 The future of heatpumps D-95359 Kasendorf Tel.: +49 (0)9228 9906 0 Fax.: +49 (0)9228 9906 29 e-mail: info@alpha-innotec.de www.alpha-innotec.com Certified Quality GREAT BRITAIN HUNGARY In view of offering the heat pump MS Frise Thermo installation operators highest David Frise Dr.
