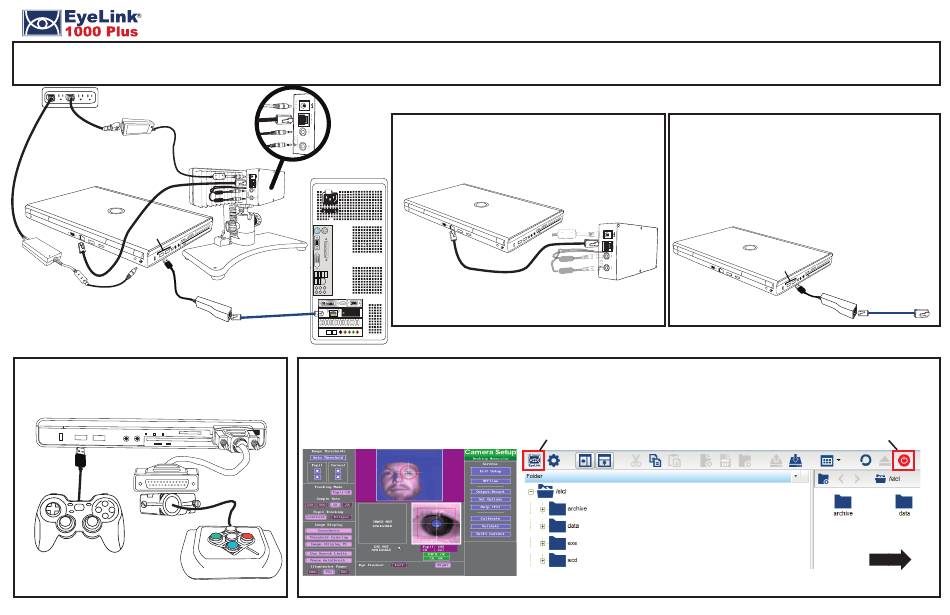

EyeLink 1000 Plus Quick Start Manual

1
Basic PC Setup
Keep the Laptop Host PC (included) powered off for now, but connect its power supply and USB Ethernet adapter. Set up the basic components of the Display PC as you would any other computer.
The Display PC can be any modern Windows (XP, Vista, or 7), Mac OS X (10.6.8 or later), or Linux PC with Ethernet, and may have been optionally acquired from SR Research.
Surge Protector

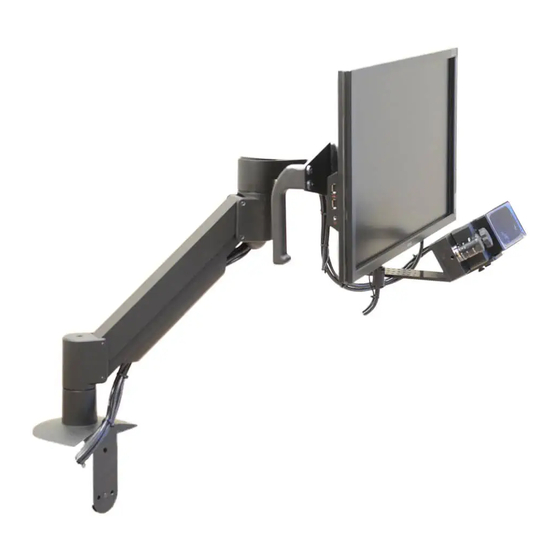

EyeLink 1000 Plus
with Desktop Mount
Laptop Host PC
USB Ports
4
Optional Response Box Connection
Connect the optional response box (not
included by default) to the appropriate port
on the Host PC.
USB Port
Microsoft Xbox 360 Controller
or
Logitech Gamepad F310
Display PC
EyeLink Ethernet
5
Test that the Setup is Working
Turn on the Host PC to verify that
the Host Application starts. Once the
Host PC is up and running you should
see the Camera Setup screen.
Parallel Port
e.g., VPixx Series
Quick Start Guide
Laptop Host PC with Desktop Mount
2
Camera Connection
Using the black Ethernet cable, connect the
Ethernet port that is built-in to the Host PC to the
Ethernet port on the EyeLink 1000 Plus camera.
To exit to the File Manager from the Host Application, press Ctrl-Alt-Q (or click Offline and
then Exit EyeLink). The File Manager interface is Illustrated below. You can use the buttons
highlighted below to start the Host PC Application or shut down the Host PC.
Starts Host Application
3
Host PC to Display PC Connection
Using the blue Ethernet cable, connect the Host PC
USB Ethernet adapter (labeled "Display PC Ethernet")
to an Ethernet port on your Display PC. Configure
that port with the following static IP address:
IP Address: 100.1.1.2
Subnet Mask: 255.255.255.0
USB Ports
Shuts down Host PC
Version 1.00W
Display PC
Continued
on back
