Summary of Contents for hygena 296/7378

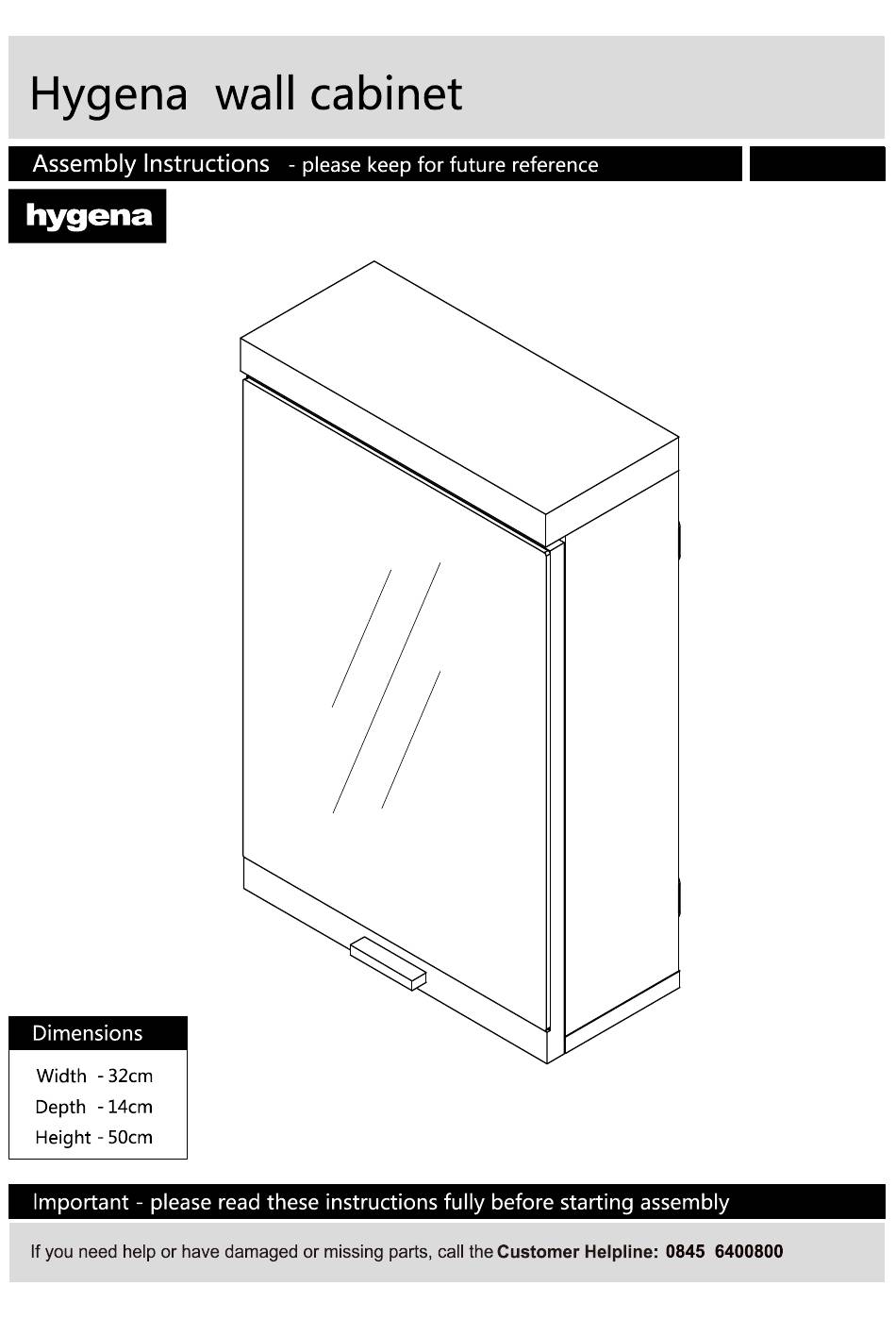

- Page 1 296/7378 Issue 1 - 10/10/14...
- Page 4 Shelf Support Hex Key x 1 Wall Plug Panel Sti eners...
- Page 6 using Hex key supplied to tighten...
- Page 7 1.Slide back panel 5 along grooves in panels 1.Glue holes in top panel and connect to left side panel and right side panel 2.Insert 2 x female camlocks to attach top panel to left side panel right side panel Use a screwdriver to turn the female camlock clockwise to lock.
- Page 8 Attach Hinge Warning: Styrofoam or a towel should be placed beneath the mirror when doing this to provent scratches...
- Page 9 supports supports panel stifferners...
- Page 10 1.Use the template provided to mark on the wall the position of the fixings. Please use a spirit level to ensure your markings are level 2. Drill holes with a drill and a suitable drill bit. 3. Insert 4 x wall plugs into each.
-
Page 11: A Guide To Wall Mounting & Fixings
A Guide to Wall Mounting & Fixings lmportant: when drilling into walls always check lmportant note: that there are no hidden wires or pipes etc. lf plastic wall plugs(rawl plugs) Make sure that the screws and wall plugs being used are suitable for supporting your unit.Consult a qualified tradesperson if you are supplied with your product, e.g.:...
