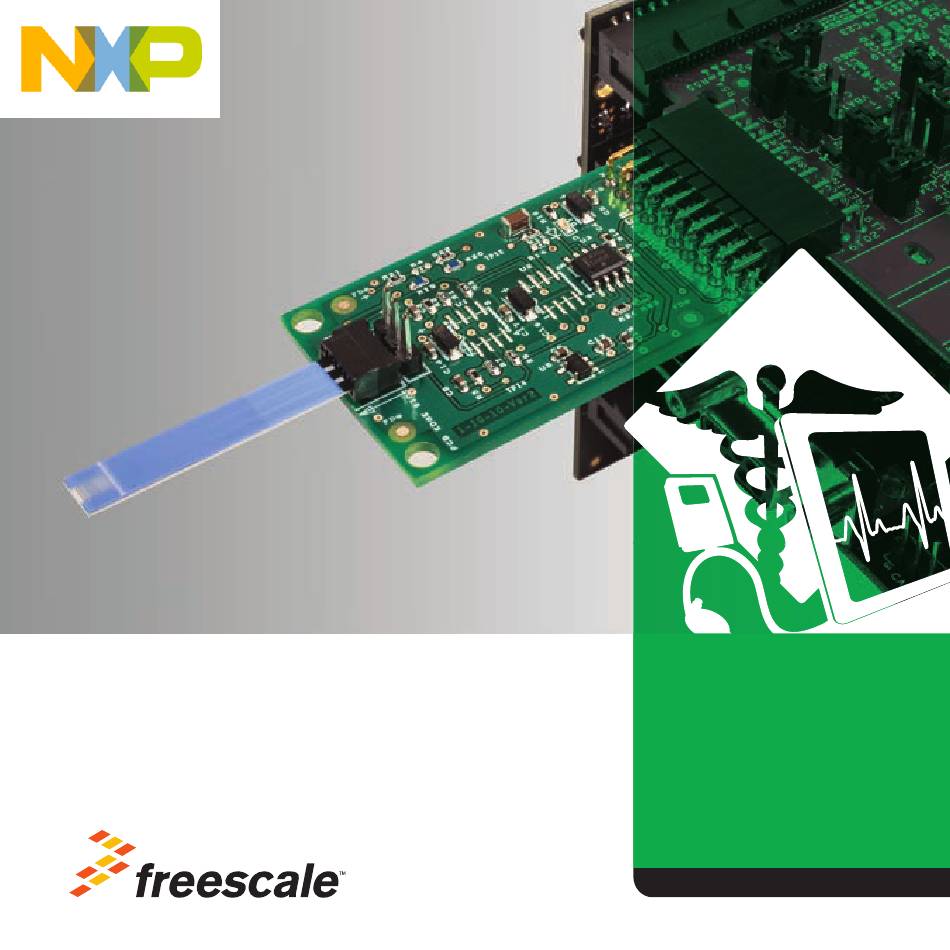

- Page 1 Quick Start Guide MED-GLU Glucose Metering Plug-in Board TOWER SYSTEM...

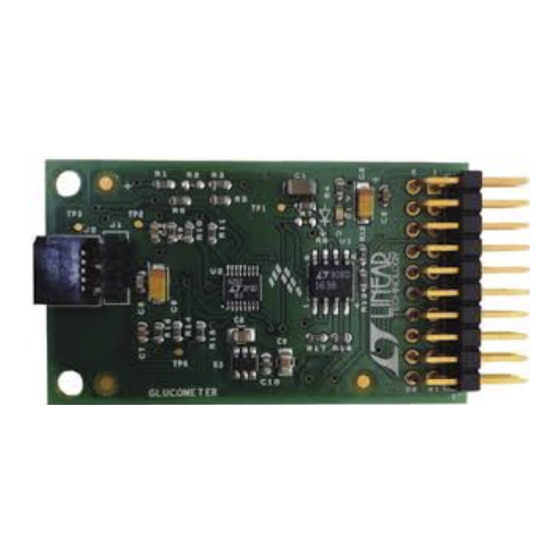

- Page 2 Quick Start Guide Get to Know the MED-GLU Board Glucose Strip Power on LED Connector Linear Optional Medical ® External Opamps Connector MED-GLU Freescale Tower System The MED-GLU plug-in board is compatible with the Freescale Tower System, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware.
- Page 3 MED-GLU Features MED-GLU is a single-board glucometer solution. It is reduced in size and eases the design of applications based on glucose metering. This board can be used together with the Tower System, offering a complete suite of tools including serial communication interfaces and graphic LCD screens.
- Page 4 Quick Start Guide Step-by-Step Installation Instructions In this quick start guide, you will learn how to set up the MED-GLU and Tower System and run the included demonstrated software. For more detailed infomation, review the user manual at freescale.com/healthcare. Verify the Jumper Connect the Configuration MED-GLU AFE...
-
Page 5: Install The Drivers
TOWER SYSTEM Download the Install the Drivers Application Note Install P&E Micro drivers. The installer Go to freescale.com and conduct a is located in IAR installation folder\arm\ parametric search for AN4364. Download drivers\pemicro. AN4364SW.zip. Open the File Connect a USB Cable Open the file MED-GLU K53.eww using IAR from \Software\MED-GLU Connect a USB cable from the computer... -
Page 6: Install The Software
Quick Start Guide Step-by-Step Installation Instructions Continued Install the Change the Software Connection Install the Medical GUI software. It can Disconnect the USB cable from the be downloaded from freescale.com. TWR-K53N512 and connect it to the TWR-SER board. Note: Make sure you have already installed Java ®... - Page 7 TOWER SYSTEM Install Drivers for Look for the JM CDC Demo COM Number If the driver is not installed automatically, In the device manager, look for the COM open Device Manager and install drivers number assigned to “Virtual Com Port.” for JM CDC Demo.
- Page 8 Quick Start Guide Step-by-Step Installation Instructions Continued Prepare Place Solution Test Strip Prepare a solution mixing 55 ml of Place the test strip on the MED-GLU distilled water and 1 ml of glucose board’s strip connector as shown below. solution with 5% concentration (0.05g/ ml).
- Page 9 TOWER SYSTEM Place Solution Start on Test Strip Measurements Place a drop of glucose solution on the In the main screen, click the GLU section test strip. Wait five seconds for results to (blue) to start measurements. appear on screen.
- Page 10 Quick Start Guide MED-GLU Jumper Options The following is a list of jumper options. The default installed jumper settings are shown in white text within the green boxes. TWR-K53N512 Jumper Configurations Jumper Position Function Open R71 to ADC1_DM1 Open FlexBus Latch OE Medical Connector Pin 4 Function External Oscillator Selection Connected...
- Page 11 TOWER SYSTEM TWR-SER Jumper Configurations Jumper Position Function VBDEV Source USB Mode Select CLK_SEL Source...
-
Page 12: Warranty
Quick Start Guide Visit freescale.com/healthcareAFE for the latest information, including: • AN4364 application note Support Visit freescale.com/support for a list of phone numbers within your region. Warranty Visit freescale.com/warranty for complete warranty information. For more information, visit freescale.com/Tower Join the online Tower community at towergeeks.org Freescale and the Freescale logo are trademarks of Freescale Semiconductor, Inc., Reg.
