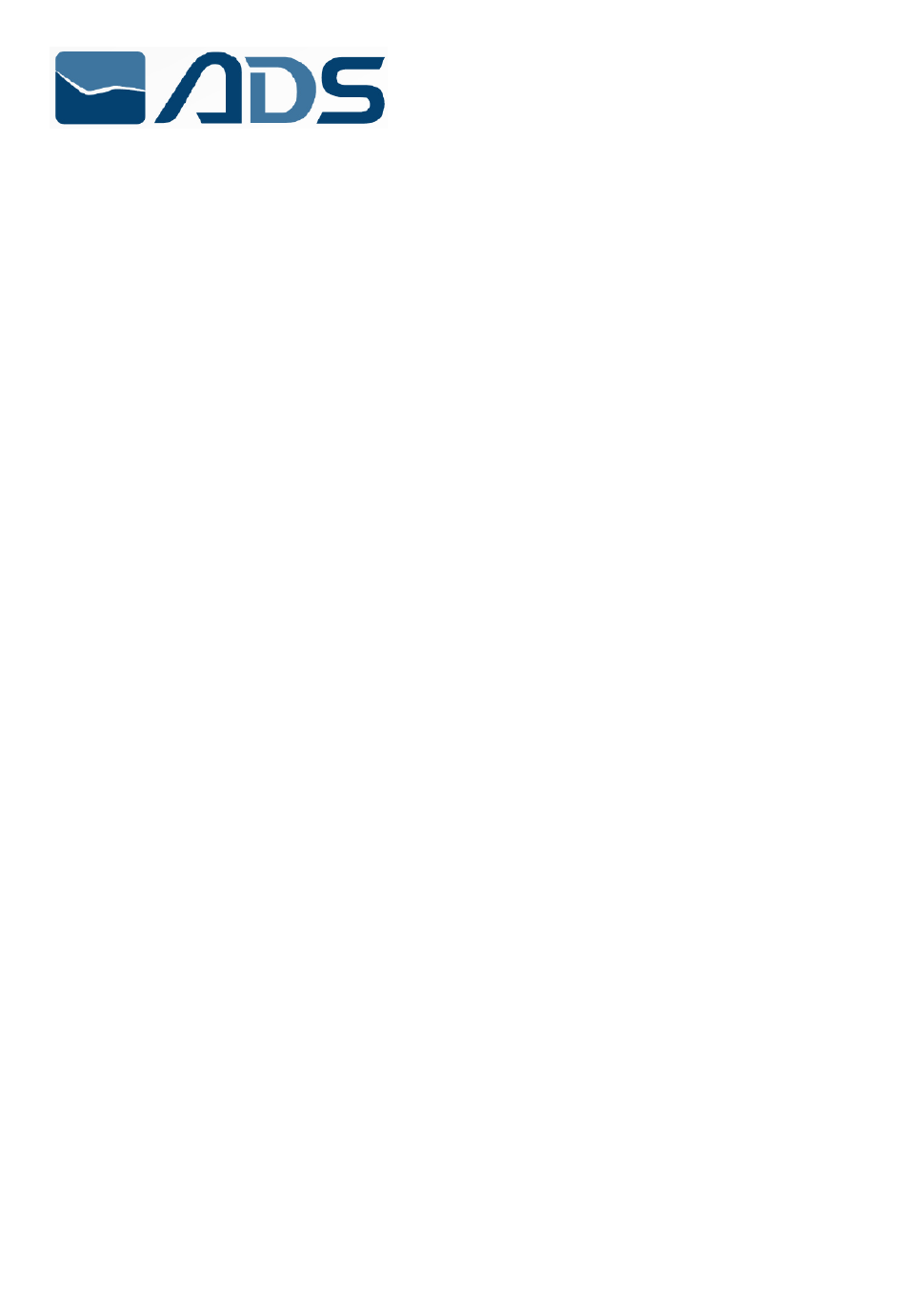

- Page 1 Installation manual of AJ16US dental chair P/N:8021442 Version：B Date：2017-08-01...
- Page 2 Installation manual of AJ16US dental chair Copyrights ADS makes no warranty of any kind with regard to this material , including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. ADS shall not be held liable for any errors contained herein or any consequential or other damages concerning furnishing, performance or use of this material.
-
Page 3: Table Of Contents
Installation manual of AJ16US dental chair C O N T E N T S Introduction……………………………………………………………1 Products information…………………………………………1 Symbols explanation……….…………………………………1 Composition……………………………………..………………………3 Parameters………………..………………………………………4 Specifications……………………………………………………4 Size.………………………………………………………… 4 Preparations………..……………………………………………………5 Attentions...…...……………………………………………………5 Tools recommended………………..…………….…………….6 Installation requirements………………………………………..7 Installation………………………………………………………… 7 5.1 Place the chair ...…………………………………………………7 Fix the chair………………………………………………………8 5.3 Install the backrest………………………………………………9... -
Page 4: Introduction
Installation manual of AJ16US dental chair 1 Introduction Product information • Name：Dental chair • Model：AJ16US • Working conditions： ① Ambient temperature：5 ℃～40 ℃； ② Relative humidity：≤ 80％； ③ Air pressure：12.5～15.4psi； ④ Nominal voltage：AC110 V±22 V； ⑤ Nominal frequency：60 Hz±1 Hz；... - Page 5 Installation manual of AJ16US dental chair Symbol Explanation Refer to attached document Notice Avoid electric shock Backrest Down Ground protection Backrest Up Original position Chair Down Chair Up Spitting position Program Chair Position 1 Program Chair Position 2 Program Chair Position 3...
-
Page 6: Composition
Installation manual of AJ16US dental chair 2 Composition AJ16US dental chair （figure 1）combined with new design concepts ， provide a good balance for usability ,simplicity and comfortability. Figure 1 AJ16 US Dental Chair Item Component Item Component Headrest Armrest button... -
Page 7: Parameters
Installation manual of AJ16US dental chair 3 Paremeters 3.1 Specifications Load bearing Patient bearing：Max 135kg Tip: Specifications are subject to change without notice. 3.2 Size (unit: inches) P/N:8021442... -
Page 8: Preparations
All the electrical components and connections should be made by an authorized technician. • Only fuse and accessories recognized by ADS technician can be used. • This device should not operate in the environment of high temperature, high humidity, vibration ,flammability, unbalance, or dusty. -
Page 9: Tools Recommended
Installation manual of AJ16US dental chair 4.2 Tools recommended The tools and instruments need to prepare before installation. Electrical drill Pincers Hammer Scissors Leveling Flat-bladed instrument Screw driver Phillip screw Allen wrench driver Hexagon socket Spanner wrench P/N:8021442... -
Page 10: Installation Requirements
Installation manual of AJ16US dental chair 4.3 Installation requirements Size: inches 5 Installation 5.1 Place the chair 1. Remove all debris and cardboards Holds around the chair. 2. Hold the handrail and the front of the frame, uplift the chair and place the chair on the right place. -
Page 11: Fix The Chair
Installation manual of AJ16US dental chair 5.2 Fix the chair Attentions: 1.The chair must be fixed on the floor for ensuring stability, for it can be seriously damaged by wrong fixation. 2.Check out the material of the floor on the installing place. Please contact the authorized contractor to thickening the floor if its thickness is less than 82 mm. -
Page 12: Install The Backrest
Installation manual of AJ16US dental chair 5.3 Install the backrest Figure 2 Backrest Pass the fixing shaft through the Fixing shaft backrest push rod，fix the shaft M6*20 Hexagon socket cap screw on backrest with the cap screw assembly assembly. GFM-1214-10 Slide bearing Push rod Tool：... -
Page 13: Install The Headrest
Installation manual of AJ16US dental chair 5.4 Install the headrest Figure 3 Push the headrest glidebar into the slot of the backrest. 5.5 Install backrest upholstery Figure 4 Metal backrest Fixing shaft Backrest upholstery When installing the upholstery, you should put the upholstery on the backrest with the shaft head pass through corresponding keyholes of the upholstery, then push the upholstery in force till it’s fixed. -
Page 14: Install Seat Upholstery
Installation manual of AJ16US dental chair 5.6 Install the seat upholstery Figure 5 Fixing bracket Chair frame M5*16 hex cap screws Install the seat upholstery Put the u pholstery onto the chair frame, lock the bracket and the rear end of the chair frame together, and tighten the two screws on the front end of the chair frame. -
Page 15: Operations
Installation manual of AJ16US dental chair 6 Operations 6.1 Power The power switch of the power box controls power supplying of the dental chair and its delivery system. Switch on and you can get the power，switch off for not using in a long term, or before maintenance . -
Page 16: Chair Positioning
Installation manual of AJ16US dental chair 6.2 Chair positioning You can operate the chair manually or by foot control. 6.2.1 Operate by foot control Raise or low the chair by pressing base up/down button , step on the up/ down arrow on the foot control till the chair is in best position. -
Page 17: Control Panel And Function Set
Installation manual of AJ16US dental chair 6.2.2 Control panel and function set Figure 8 Original position Program Chair Position 1 Program Chair Position 2 Program Chair Position 3 Spitting position Backrest down Backrest up Chair up Chair down 6.2.3 System state If the indicator light is bright on the control panel, it indicating that the system is normal，and you can operate normally. -
Page 18: Initial Settings Of The Chair
Installation manual of AJ16US dental chair 6.2.4 Initial settings of the chair Electric motor system initial settings specification: Press the “O” button on the main control panel of dentist unit to descend the chair motor till the lower limit switch is triggered, raise the backrest motor till the higher limit switch is triggered. -
Page 19: Initial Settings Description
Installation manual of AJ16US dental chair Caution: Hydraulic system shall have the initial settings in following situations. First installation or replacement of mainboard . Insert/replace/repair any position feedback potentiometer or wiring. Reset or replace the limit switch.. Reset the motion range of the chair.(Disabled to move or cannot move to desired position.）... -
Page 20: Chair Positions Description
Installation manual of AJ16US dental chair 6.2.6 Chair positions description a. Backrest Up Press this button continuously and the backrest will move upwards. When the backrest reach the desired position, stop pressing the button and the backrest will stop immediately. -
Page 21: Dual Articulating Headrest
Installation manual of AJ16US dental chair e. Original position Press the button, the chair and backrest will move to the original position automatically(Original position : backrest highest , the chair lowest) and light off . Press this button again , the chair returns to former position and light on. The chair shall stop at a new position by halfway stop. -
Page 22: Armrest
Installation manual of AJ16US dental chair Figure 9 Fix the headrest for a wheelchair. Fix the headrest for a wheelchair： 1. Backrest of the dental chair is fully raised. 2. After reposition the headrest ,raise or descend the chair to adjust heights. -
Page 23: Chair Rotation
Installation manual of AJ16US dental chair 6.5 Chair rotation Figure 12 Chair rotation Tighten Loosen Pull the handle behind the chair to rotate: 1.Pull the handle rightwards to loosen the brake; 2.Push the handle leftwards to tighten the brake when the chair gets to desired angle. -
Page 24: Regulation & Maintenance
Installation manual of AJ16US dental chair Regulation & maintenance 7.1 Remove the upholstery The special design of upholstery is easy to remove and replace .They are installed on backrest, seat and headrest of the chair . Backrest upholstery To take off the upholstery from backrest ，you should hold the bottom edge of gasket firmly and lift it up (1 inch or 25 mm) ，then lift the upholstery from the... - Page 25 Installation manual of AJ16US dental chair Seat upholstery Loose the screw at the front end of the upholstery, push the upholstery forward， then remove the seat upholstery. Figure 15 Remove the seat upholstery P/N:8021442...
-
Page 26: Reserved Lines
Installation manual of AJ16US dental chair Reserved lines Lines of Classic200/Beyond400 A B C 1. 1/8" white ， reserved for dentist unit 2. 1/8" brown，reserved for dentist unit 3. 1/8" red, reserved for dentist unit 4. 1/8" orange, reserved for dentist unit 5. - Page 27 Installation manual of AJ16US dental chair Lines of Classic201/Beyond401 1. 1/8" white, connect to delivery system 2. 1/8" brown, connect to delivery system 3. 1/8" red, connect to delivery system 4. 1/8" orange, connect to delivery system 5. 1/8" black, connect to delivery system 6.
- Page 28 Installation manual of AJ16US dental chair Lines of Beyond300/301 1.1/8" transparent, reserved for dentist unit 2. 1/8" White for delivery head 3.1/8" brown for delivery head 4.1/8" red for delivery head 5.1/8" Orange for delivery head 6.1/8" Black for delivery head 7.1/8"...
- Page 29 Installation manual of AJ16US dental chair Lines of Classic 100/101 12. Control wire for delivery head 14. 24V power cord for dental light 15. Ground wire for delivery head P/N:8021442...
-
Page 30: Upholstery Maintenance Instruction
Installation manual of AJ16US dental chair 9 Upholstery Maintenance Instruction The upholstery provides users unparalleled comfort, excellent aesthetics and reliable quality. The upholstery has a one-year warranty on defective materials and workmanship. This instruction ensures a longer life of the upholstery if it is properly maintained. -
Page 31: Connecting Diagrams
Installation manual of AJ16US dental chair 10 Connecting diagrams Connecting diagram （Hydraulic system） P/N:8021442... - Page 32 We reserve the right to make any alterations which may be due to technical improvements. ADS Dental System Inc. Add: 1590 S Milliken Ave., unit A, Ontario, CA 91761 Tel: (626) 620 0456 E-mail: ads@adsequip.com http://www.adsequip.com/...
