10. TAPE AND REEL PACKING

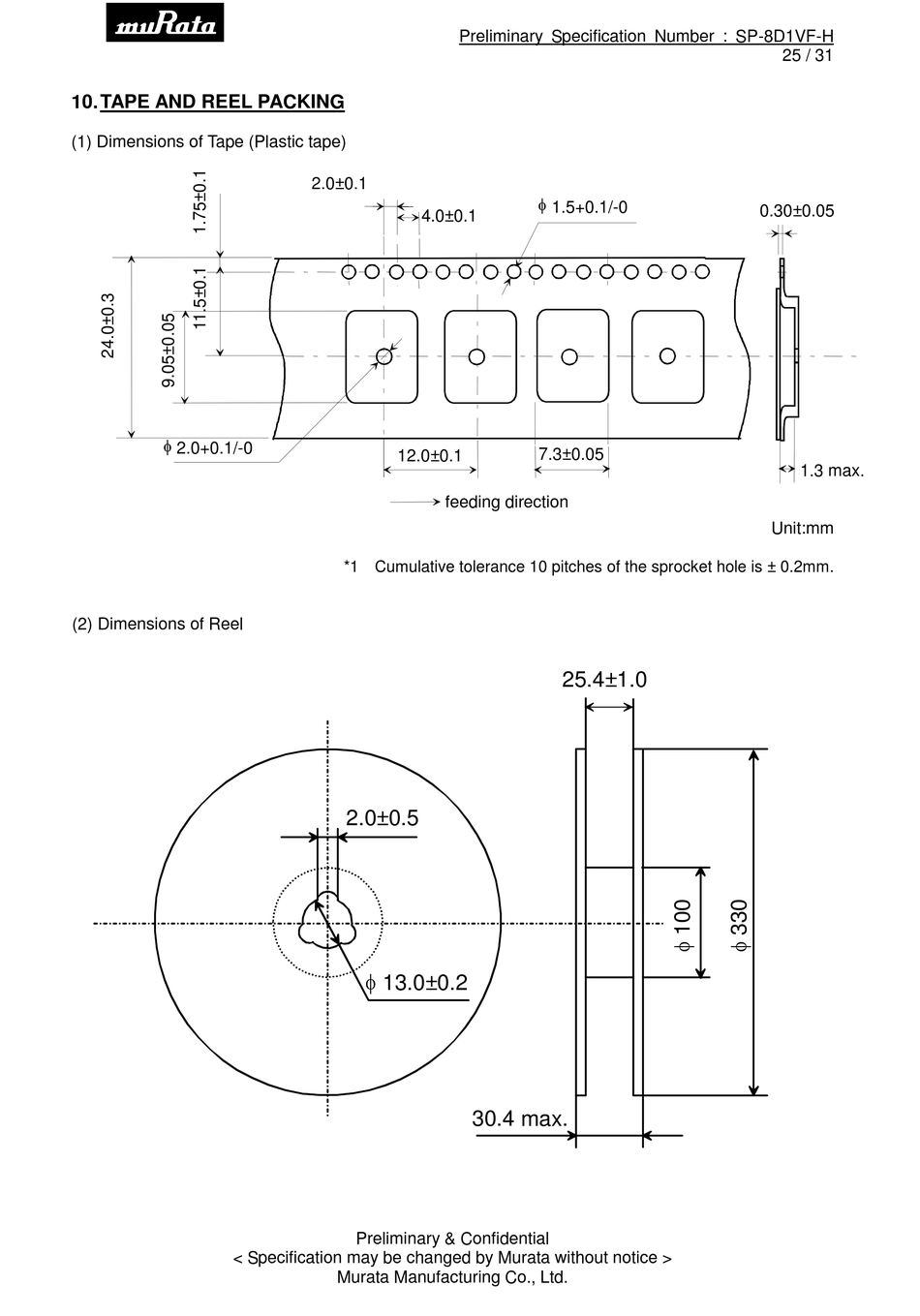

(1) Dimensions of Tape (Plastic tape)
2.0±0.1
1.5+0.1/-0
0.30±0.05
4 .0±0.1
2.0+0.1/-0
7.3±0.05
12.0±0.1
1.3 max.
feeding direction
Unit:mm
*1 Cumulative tolerance 10 pitches of the sprocket hole is ± 0.2mm.
(2) Dimensions of Reel
25.4±1.0
2.0±0.5
13.0±0.2
30.4 max.
