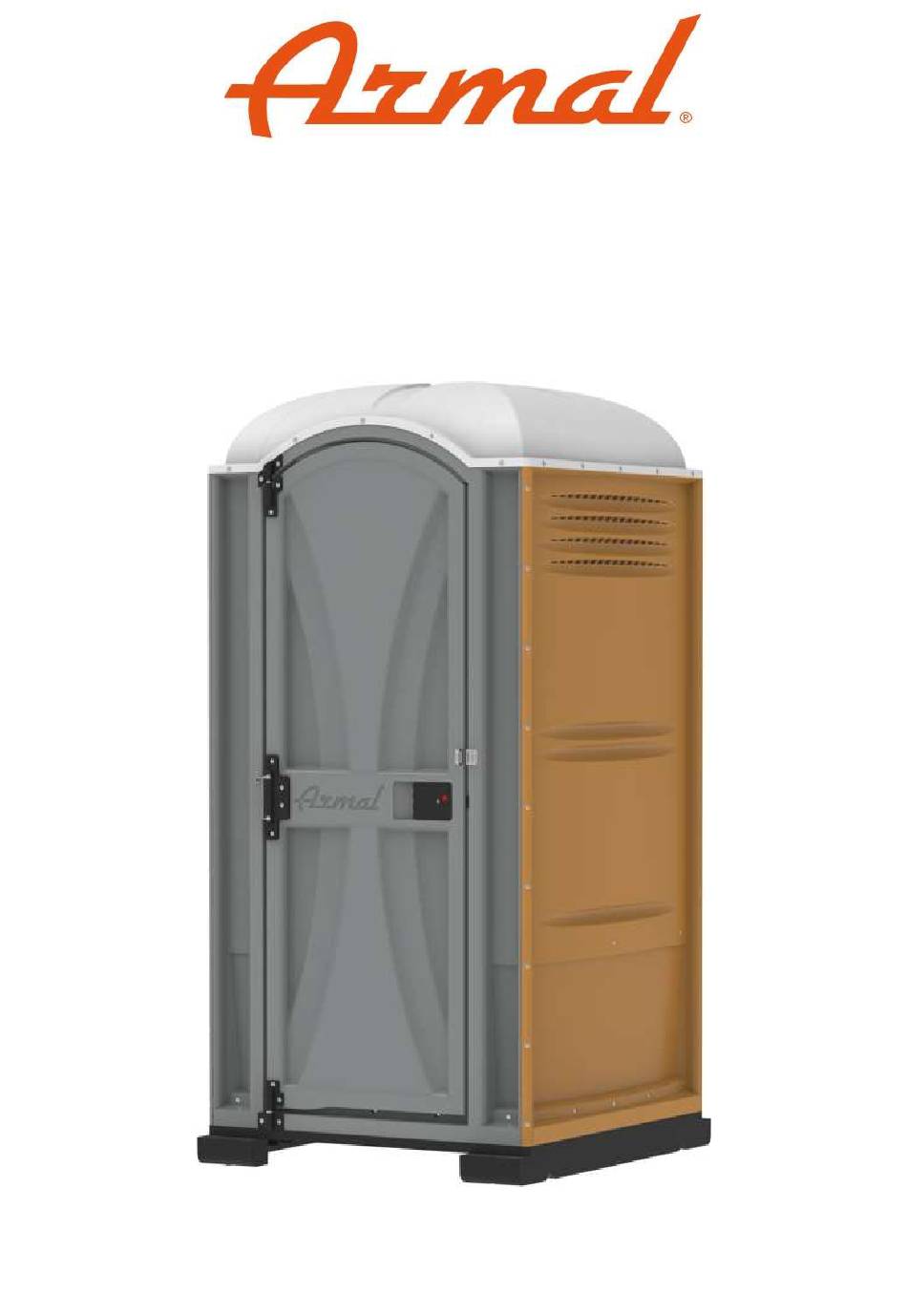

  • Page 1 WAVE Toilet Assembly Instruction...
  • Page 2 Required tools...
  • Page 3 Sommario USE AND MAINTENANCE MANUAL .............. 5 Required tools ........................5 Assembly Instructions ......................6...
  • Page 4 Required tools...

  • Page 5: Required Tools

    USE AND MAINTENANCE MANUAL REQUIRED TOOLS Allen Key Star Srewdriver Drill Armal Key Wrench Regolable Key Required tools...
  • Page 6 ASSEMBLY INSTRUCTIONS 1.2.1 HOLDING TANK ASSEMBLY Place the floor on the toilet holding tank Insert No. 5 screws 4,8x35 Fix first the central screw N° 8 Assembly Instructions...
  • Page 7 Complete fixing the two parts together by using No. 4 additional screws N° 8 Take the holding tank cover and place it on the holding tank Fix first the central rivet Assembly Instructions...
  • Page 8 Complete fixing the two parts together by using No. 2 rivets more Attention: do not insert rivets on the rear holding tank cover Take the toilet seat and seat cover Place first the toilet seat and seat cover; then insert the seat metal bar inside the designated hole Assembly Instructions...
  • Page 9 Fix the seat metal bar with ring Fix the seat metal bar with ring Assembly Instructions...
  • Page 10 1.2.2 WALLS ASSEMBLY Take one wall panel and position it on the rear floor Fix first the lower central rivet to the floor Drill the wall panel central point ø 5.25 Assembly Instructions...
  • Page 11 Insert the rivet Drill the left position ø 5.25 Drill the right position ø 5.25 Assembly Instructions...
  • Page 12 Insert No. 2 rivets Place the right panel Fix first the lower central rivet to the floor Assembly Instructions...
  • Page 13 Drill the wall panel central point ø 5.25 Insert rivet Drill the right position ø 5.25 Assembly Instructions...
  • Page 14 Insert the rivet in the previous right position and along the entire junction edge with the back panel Place the left panel Fix first the lower central rivet to the floor Assembly Instructions...
  • Page 15 Drill the wall panel central point ø 5.25 Insert the rivet Drill the left position ø 5.25 Assembly Instructions...
  • Page 16 Insert the rivet in the previous left position and along the entire junction edge with the back panel Place the door frame Rivet along the left door frame side Assembly Instructions...
  • Page 17 Rivet along the lower door frame side Rivet along the right door frame side Assembly Instructions...

  • Page 18: Door Assembly

    1.2.3 DOOR ASSEMBLY Assembly the adjustable door noise deflector Insert the adjustable door noise deflector in the door frame Use a screwdriver for adjust the noise deflector Assembly Instructions...
  • Page 19 Place the bottom door pin Insert the door into the bottom pin Place the upper hinge on the door frame Assembly Instructions...
  • Page 20 Drill the upper hinge position ø 5.25 Fix the upper hinge with No. 2 rivets Assembly Instructions...
  • Page 21 Insert the lower hinge on the door Insert the hinge rod Drill the lower hinge position ø 5.25 Assembly Instructions...
  • Page 22 Fix it with No. 2 rivets Place the door spring's hinge into the door frame Assembly Instructions...
  • Page 23 Hold in place the hinge by insert No. 2 screws as shown Place the door spring's hinge into the door Hold in place the hinge by insert No. 2 screws as shown Assembly Instructions...
  • Page 24 By the internal side of the toilet, fix the door hinge with No. 2 screws 8 mm By the internal side of the toilet, fix the door frame hinge with No. 2 screws 8 mm Place the door spring Assembly Instructions...
  • Page 25 Insert the hinge rod Fix the two parts with No. 2 rings for metal bar D 8 Stainless Insert the spring cover Assembly Instructions...
  • Page 26 Drill the spring cover in position ø 5.25 Fix it with No. 4 rivets Place the upper hinge on the door Assembly Instructions...
  • Page 27 Drill the upper hinge position ø 5.25 Fix it with No. 3 rivets Place the lower hinge on the door frame Assembly Instructions...
  • Page 28 Drill the lower hinge position ø 5.25 Fix it with No. 2 rivets Place the door handle on the internal part of the door Assembly Instructions...
  • Page 29 Fix it with No.2 screws Insert the door latch on the internal side of the door handle Fix the green/red indicator on the external side of the door Assembly Instructions...
  • Page 30 Insert the handle Insert the screw with the Armal key, and tighten it to adjust the strength of the latch Try the locking mechanism from the internal side of the door Assembly Instructions...
  • Page 31 Try the locking mechanism from the internal side of the door Complete the assembly with a self-blocking nut from the internal side. While screwing the self-locking nut hold the screw from the outside with the Armal key N°10 Assembly Instructions...
  • Page 32 Try the locking mechanism from the external side of the door with Armal key Assembly Instructions...

  • Page 33: Roof Assembly

    1.2.4 ROOF ASSEMBLY Position the roof Drill the roof and walls in position ø 5.25 Insert the No. 20 rivets in total Assembly Instructions...
  • Page 34 Insert the No. 20 rivets in total Assembly Instructions...

  • Page 35: Accessories Assembly

    1.2.5 ACCESSORIES ASSEMBLY Place the urinal connection hose inside the toilet tank cover Drill the wall panel from inside ø 5.25 Fix the urinal connection hose with No. 1 rivet from the outside Assembly Instructions...
  • Page 36 Place the urinal inside the urinal connection hose Drill the wall panel at exact location of the 2 urinal holes ø 5.25 Drill the wall panel at exact location of the 2 urinal holes ø 5.25 Assembly Instructions...
  • Page 37 Fix finally the urinal with No. 2 rivets from the outside Insert the ventilation pipe into the cover tank and roof Drill the roof and the ventilation pipe ø 5.25 Assembly Instructions...
  • Page 38 Insert the rivet Insert the paper holder rod as shown Position the toilet paper holder Assembly Instructions...
  • Page 39 Drill from the internal toilet side the four holes ø 5.25 Insert No. 4 rivets from the toilet external side to fix the paper holder Install the door frame cap into the door frame as shown Assembly Instructions...
  • Page 40 Install the door frame cap into the door frame as shown Fix the door lock metal plate on the specific location on the door frame Drill in position ø 5.25 Assembly Instructions...
  • Page 41 Fix it with No. 2 rivets Fix the door lock metal plate on the specific location on the door Drill in position ø 5.25 Assembly Instructions...
  • Page 42 Fix it with No. 2 rivets Assembly Instructions...
  • Page 43 Assembly Instructions...
