Summary of Contents for Spike Flow

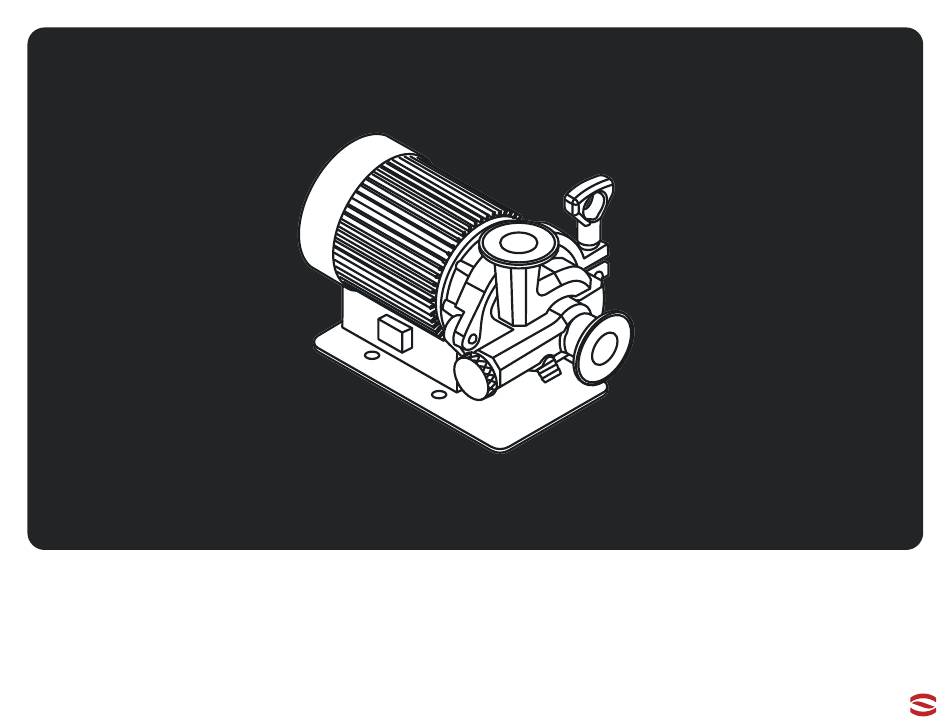

- Page 1 Spike Flow User Guide...
- Page 2 Congrats on securing your new Spike Flow! Assembly ....... . 2.
- Page 3 Assembly Ready to get your Flow up and running? This guide will show you how to assemble each piece of equipment with step-by-step instructions and key visuals. S P I K E F L O W U S E R G U I D E...
- Page 4 Assembly – Flow S P I K E F L O W U S E R G U I D E...
-
Page 5: Item Description
Assembly – Flow TC ITEM DESCRIPTION Pump Motor Drive Magnet Outlet Motor Adapter Rear Housing Impeller 3” Tri Clamp Inlet Front Housing Front Housing Seal Impeller Shaft ARV - Air Release Valve Power Switch S P I K E F L O W U S E R G U I D E... - Page 6 Assembly – Flow NPT Note: wrap the threads with pipe tape to ensure a leak free connection. ITEM DESCRIPTION Pump Motor Drive Magnet Outlet Motor Adapter Rear Housing Impeller 3” Tri Clamp Inlet Front Housing Front Housing Seal Impeller Shaft...
- Page 7 Assembly – Recommended Flow Configuration Best Best S P I K E F L O W U S E R G U I D E...
- Page 8 Mounting Operating Now that your flow is fully assembled, it’s time to put it to work. Follow the steps in this user guide for a simple and easy Brew Day experience. S P I K E F L O W U S E R G U I D E...
- Page 9 (see Figure 1). This will make it easier to bleed air out during operation. A flow control valve can be attached to the outlet of the pump or the inlet of your kettle. Ball valves will provide much better control than butterfly valves.
- Page 10 ARV. After your brew day is completed, you can clean by Note: Never throttle the flow before the pump as this If that happens, completely unscrew the ARV disassembling your pump and soaking its parts in can damage it, always throttle from the outlet.
