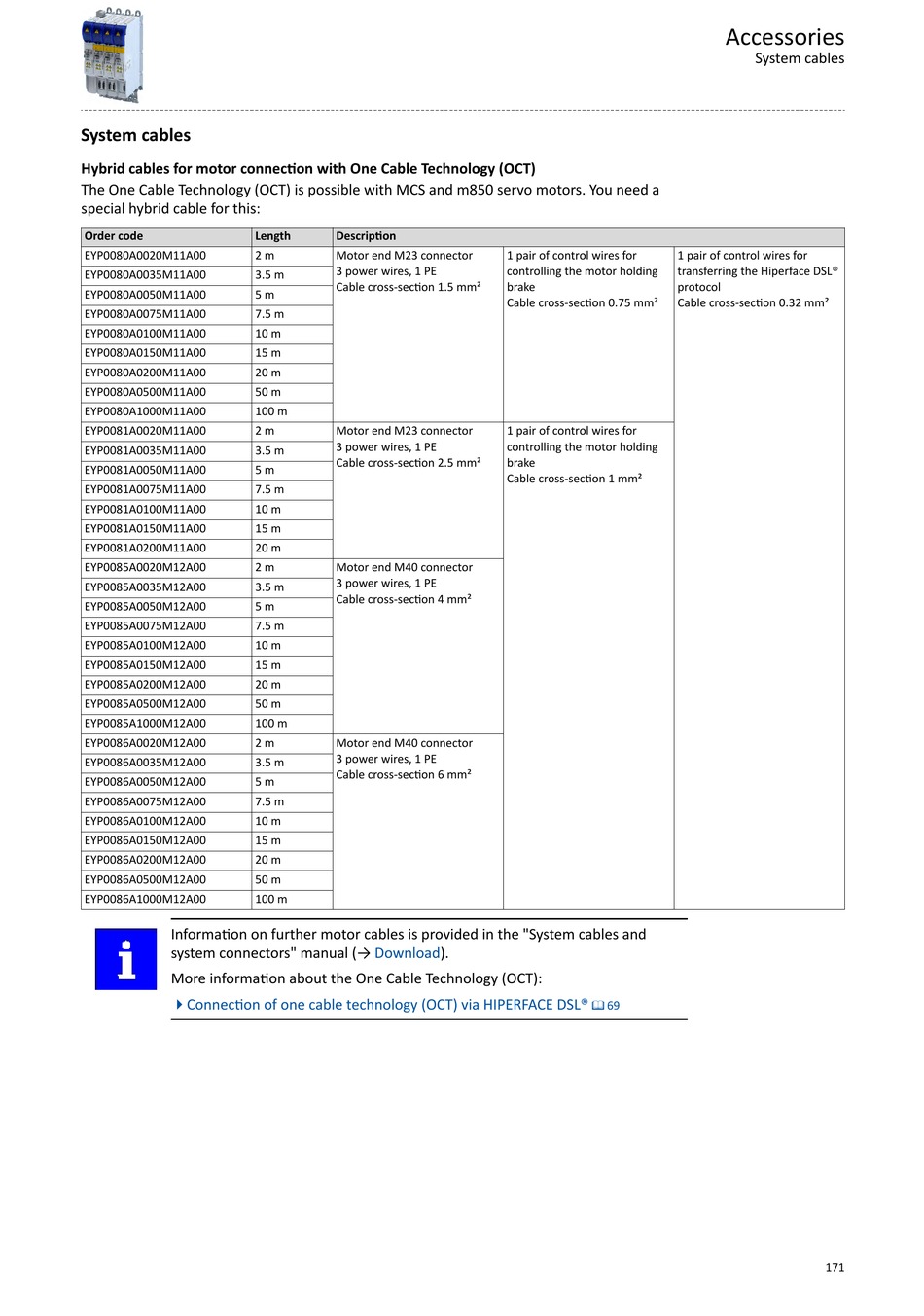

System cables

Hybrid cables for motor connection with One Cable Technology (OCT)
The One Cable Technology (OCT) is possible with MCS and m850 servo motors. You need a
special hybrid cable for this:
Order code Length
EYP0080A0020M11A00 2 m
EYP0080A0035M11A00 3.5 m
EYP0080A0050M11A00 5 m
EYP0080A0075M11A00 7.5 m
EYP0080A0100M11A00 10 m
EYP0080A0150M11A00 15 m
EYP0080A0200M11A00 20 m
EYP0080A0500M11A00 50 m
EYP0080A1000M11A00 100 m
EYP0081A0020M11A00 2 m
EYP0081A0035M11A00 3.5 m
EYP0081A0050M11A00 5 m
EYP0081A0075M11A00 7.5 m
EYP0081A0100M11A00 10 m
EYP0081A0150M11A00 15 m
EYP0081A0200M11A00 20 m
EYP0085A0020M12A00 2 m
EYP0085A0035M12A00 3.5 m
EYP0085A0050M12A00 5 m
EYP0085A0075M12A00 7.5 m
EYP0085A0100M12A00 10 m
EYP0085A0150M12A00 15 m
EYP0085A0200M12A00 20 m
EYP0085A0500M12A00 50 m
EYP0085A1000M12A00 100 m
EYP0086A0020M12A00 2 m
EYP0086A0035M12A00 3.5 m
EYP0086A0050M12A00 5 m
EYP0086A0075M12A00 7.5 m
EYP0086A0100M12A00 10 m
EYP0086A0150M12A00 15 m
EYP0086A0200M12A00 20 m
EYP0086A0500M12A00 50 m
EYP0086A1000M12A00 100 m
Information on further motor cables is provided in the "System cables and
system connectors" manual (→ Download).
More information about the One Cable Technology (OCT):
4Connection of one cable technology (OCT) via HIPERFACE DSL®
Description
Motor end M23 connector 1 pair of control wires for
3 power wires, 1 PE controlling the motor holding
Cable cross-section 1.5 mm² brake
Cable cross-section 0.75 mm²
Motor end M23 connector 1 pair of control wires for
3 power wires, 1 PE controlling the motor holding
Cable cross-section 2.5 mm² brake
Cable cross-section 1 mm²
Motor end M40 connector
3 power wires, 1 PE
Cable cross-section 4 mm²
Motor end M40 connector
3 power wires, 1 PE
Cable cross-section 6 mm²
Accessories
System cables
1 pair of control wires for
transferring the Hiperface DSL®
protocol
Cable cross-section 0.32 mm²
