Installation
May 2019
2.2

Installation and Retraction of Sensor

Figure 2-3 Label
2.1.1 Installation
Retraction assembly kit (PN 23765-00) consists of items 1 through 7 shown in
a hex key and pipe tape. The sensor assembly includes items 8 through 11.
IMPORTANT
Do not remove or alter the guard (10) on the sensor tube (9).

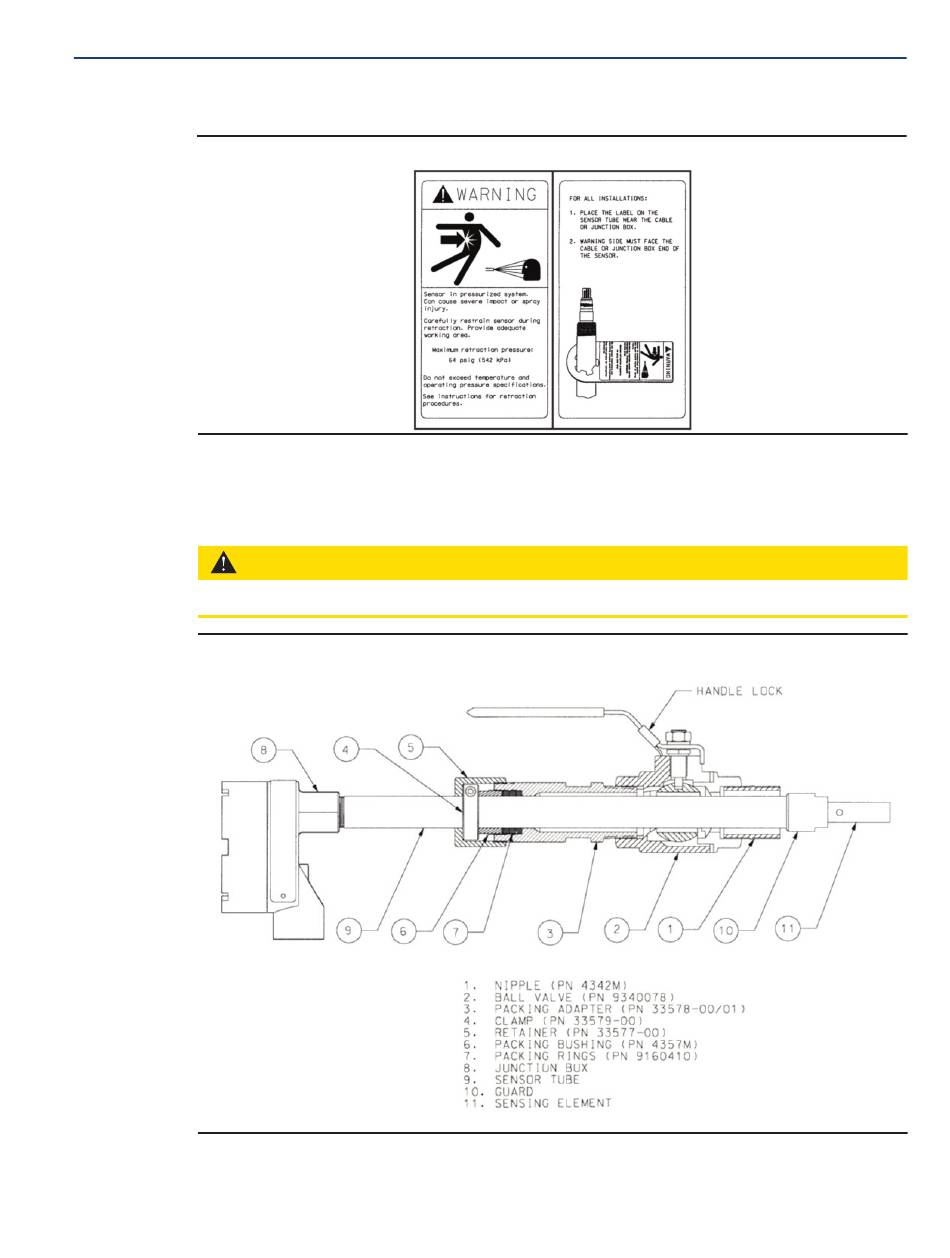

Figure 2-4 Sensor with retraction assembly kit
1.
2.
4
Make sure the system is shut down and there is no residual pressure.
Attach the ball valve (2) to the process piping using the 1–¼-in. FNPT port on the valve
or the 1–¼ in. NPT nipple (1). Use pipe tape on male threads.
Quick Start Guide
00825-0100-3402
Figure 2-4 as well as
