Summary of Contents for Chino Compact SOFC

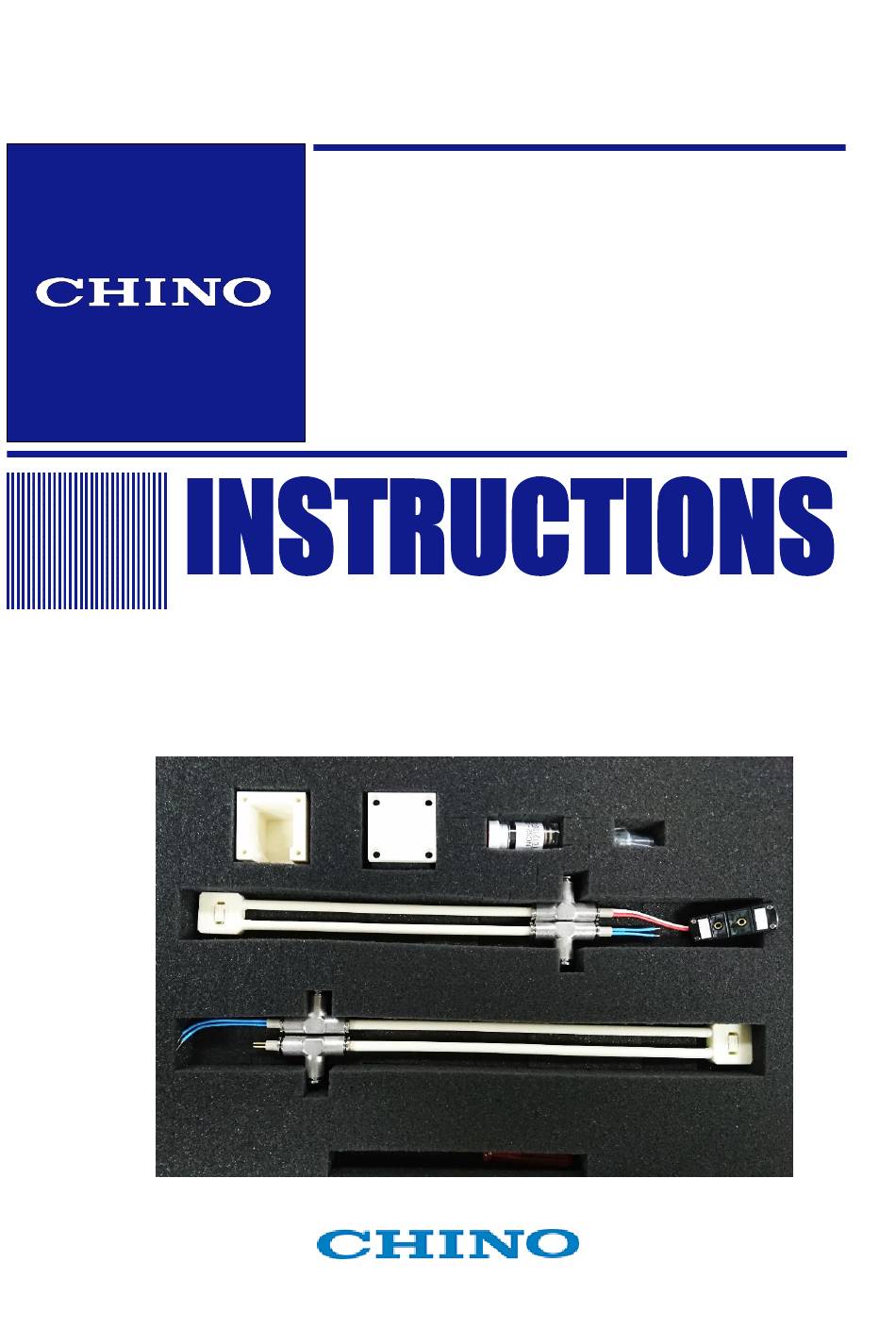

- Page 1 Compact SOFC Test Holder This instruction manual contains all the information and note that is needed to handle and operate the Compact SOFC Test Holder and furnace. File to not lose this instruction manual for correct operation.
- Page 2 Table of Contents 1. Introduction ..........................- 1 - 2. Parts List ............................ - 2 - 3. How to build the holder ......................- 2 - 4. Location in the furnace ......................- 6 - 5. How to change lead wire ......................- 7 -...
- Page 3 Specifications W40×D40×H39 mm Dimentions Weight Approx. 350 g Resisting heat Holder Max 900 ºC / Metal joint Max 120 ºC Gas flow rate Max 1 L/min Gas inlet / outlet pipe（φ6 one-tatch） Platinum wire for voltage （φ0.5） Process and V/A connection Platinum wire for current （φ0.5）...
- Page 4 1. Introduction Thank you for purchasing our Compact SOFC Test Holder with furnace. This holder employs entirely ceramic structure to be free from metallic contamination. In addition, since the load structure of the ceramic spring is realized with a compact design, the cell can be durably tested in a space-saving manner.
- Page 5 ２．Contents ガス導入冶具 Manifold Gas Inlet and Outlet Holder - 2 Details Manifold - 2 Gas Inlet and Outlet - 2 Current wire - 1 Voltage wire - 1 Airtight terminal Thermocouple - 1 (Connection port Current, Voltage, Thermocouple) Ceramics spring - 1 Alumina fixture chest - 1 Alumina fixture lid Ceramics clincher - 4...
- Page 6 ３．ホルダの組立方法 The bellow describes how to build a holder. ① When you unpack, firstly make sure lead wires are inserted in groove of diffusion plate. (Both side anode and cathode) ② Place gas seal to the holder flame. It is recommended that gas seal is 2 places with adhesive. (both side anode and cathode) ③...
- Page 7 ⑤ Place cathode current collector (40 x 40, t = 0.6) on the seal position of cathode side holder. ⑥ Set cathode side holder in alumina fixture chest. Stack anode side holder on the cathode side holder after checking that the cell doesn’t fall the anode side. Insert ceramic spring to the counterbore of anode side holder and set alumina fixture lid on the ceramic spring.
- Page 8 ◎ About the load of Compact SOFC Holder ⑦ Holder building is finished. - 5 -...
- Page 9 ４．Location in the furnace The below describes how to locate the holder in the furnace Position the holder so that the depth is the mark of almina piping overlaps the outside of the insulating block, and center in the left-right direction. Adjust the height of the holder with setters. ...
- Page 10 ５．How to change lead wire Lead wires might have deteriorated after repeated testing. Replace lead wire if deteriorated state be founded. ① Start work with the cell, gas seal, current collector removed. ② Remove airtight terminal from metal fitting. At this time, remove the airtight terminal while pushing the pin of the photo ○...
- Page 11 ・ Contact CHINO Corporation URL http://www.chino.co.jp 1, Mori, Fujioka-shi, Gunma Fujioka factory, System Configuration Dept. TEL 0274(42)2114 FAX 0274(42)7441 - 8 -...
