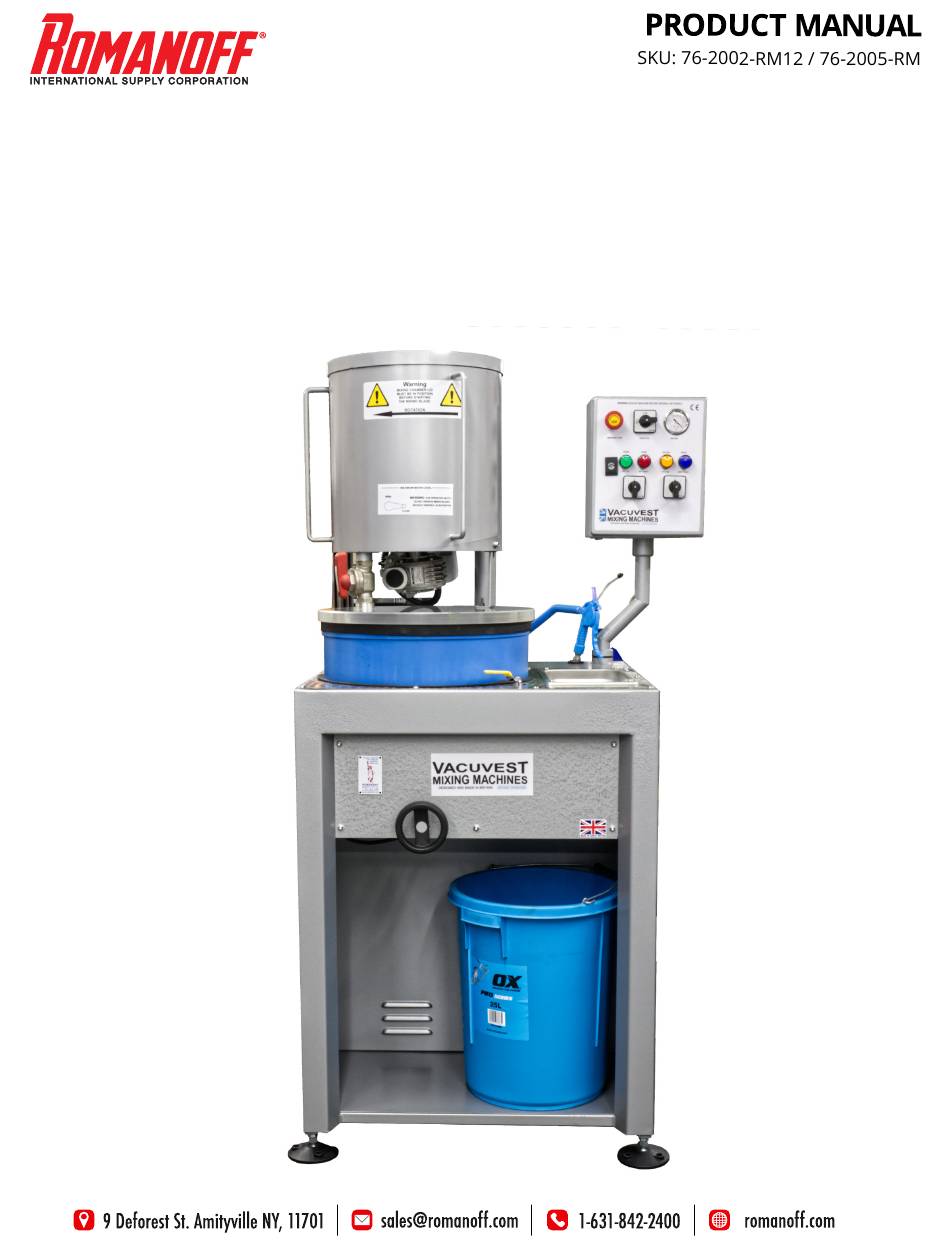

- Page 1 Vac-U-Vest 12 & 15 Product Manual...
-
Page 2: Machine Components
76-2002-RM12 / 76-2005-RM Vac-U-Vest #12/#15 Investing Machine Machine Components Mixing chamber Control panel Pouring valve Flask chamber Mixing chamber lifting handle Vacuum exhaust valve Waste sink Rotary table Control wheel Height adjustable Anti-vibratiopn feet Waste bucket... -
Page 3: Control Panel
76-2002-RM12 / 76-2005-RM Vac-U-Vest #12/#15 Investing Machine Control Panel Vibration control switch Vacuum gauge Emergency stop switch Indicator lamps Main isolator switch Mixing blade control switch. Vacuum / Water control switch. This should be in position 2 when you want to When the mixing blade control switch is in pull a vacuum. -
Page 4: Rear View
76-2002-RM12 / 76-2005-RM Vac-U-Vest #12/#15 Investing Machine Rear view Mains power cable Mixing blade safty switch Water wash gun Control box Locking screw Rear cover Water connection... -
Page 5: Required Connections
76-2002-RM12 / 76-2005-RM Vac-U-Vest #12/#15 Investing Machine Required Connections Vacuum pump Vacuum Pump connector. This power supply supplied cable maximum 10 should be wired amps to your vacuum pump which then connects to the vacuum pump power supply cable. Vacuum Water supply connection connection... -
Page 6: Setup And Installation
76-2002-RM12 / 76-2005-RM Vac-U-Vest #12/#15 Investing Machine Setup and Installation A few simple steps to gettiing your Vac-U-Vest 12 &15 into operation. With the machine removed from its shipping crate, once in position you can use the anti-vibration feet to level the machine. Once leveled, tighten the locking screw on each foot to secure it. - Page 7 Rotate the turntable control wheel and ensure that all of of the flasks align correctly under the pouring valve. Weigh out the investment powder not exceeding the machines maximum. Vac-U-Vest 12 is max 12kg dry powder, Vac-U-Vest 15 is m&x 15kgs dry powder.
