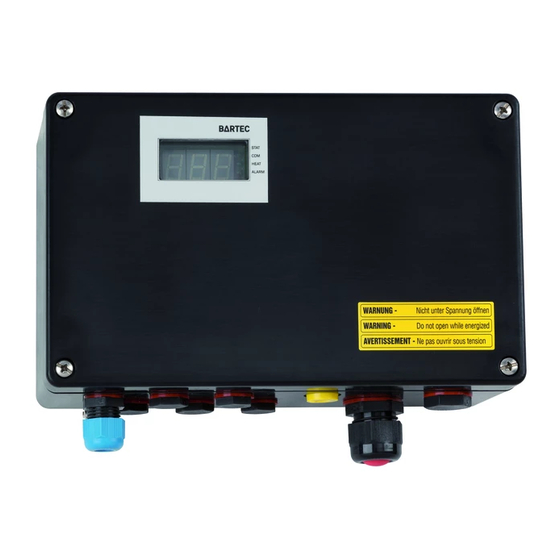

- Page 1 Setup, Network and Communication Manual ESTM / ESTM-L 17-88C1-*...
-
Page 3: Table Of Contents
Setup, Network and Communication Manual ESTM / ESTM-L Table of Content Target Audience ................................4 Safety ....................................5 Safety marking ..................................5 Safety Instructions ................................5 General information ................................6 About this manual ................................6 Bluetooth ID ..................................6 Factory set default device-password ........................... 6 Temporary Pin .................................. -
Page 4: Target Audience
Setup, Network and Communication Manual ESTM / ESTM-L 1. Target Audience These operating instructions are intended for qualified personnel such as service technicians, commissioning engineers and plc programmers. All setting values must be given by persons who have experience and knowledge of the relevant standards and guidelines relevant to the use of the product. -
Page 5: Safety
DANGER draws attention to a danger which will lead to Your local BARTEC reprehensive will help you to find a death or serious injury if not avoided. suitable device. -
Page 6: General Information
Password change see: 4.8.8 System Data 3.4 Temporary Pin Temporary Pin is 3 digit Password that is created by the ESTM / ESTM-L and shown on the display of the device. The hexadecimal numeric code is used for this password. That means the numbers from 0-9 and the charters A-F are used. -
Page 7: Bartec Trace Command General
DANGER When using the BARTEC TRACE COMAND, make sure that the handheld device with the software installed on is suitable for the operating environment. Your local BARTEC reprehensive will help you to find a suitable device. Preparing for Installation Transfer *.apk... -
Page 8: Start Menu
When you start the app you will find the following options Connect device: To connect to a field device see 4.4 Start and Connection Documentation: In this menu you find the user manual of the ESTM/ESTM-L (pdf reader is required) Info: Shows the revision of the app... -
Page 9: Start And Connection
Setup, Network and Communication Manual ESTM / ESTM-L 4.4 Start and Connection Choose CONNECT DEVICE on the start screen Press SCAN and wait for the Bluetooth device appearing Select device e.g. “ESTM-L 5CB6CC838F5C” Press CONNECT 17-88C1-* Notice Technical data subject to change without notice. -
Page 10: Parameter / Functions / App Menus
Setup, Network and Communication Manual ESTM / ESTM-L 4.5 Parameter / Functions / App Menus All values / Stats and alarms will be described here. For the Modbus address see capter 5 Modbus RTU / RS485 Interface. 4.5.1 General Operation... - Page 11 Setup, Network and Communication Manual ESTM / ESTM-L Change and Safe Parameters, control values and indications To save all changes, always press the SAVE CHANGES button before leaving the submenu. The first time after each Bluetooth connection the device password is requested (default ESTM-L).
-
Page 12: Connected Device
Setup, Network and Communication Manual ESTM / ESTM-L 4.6 Connected Device Function Description action / - effects on / valid values ranges Device name / serial number With the device name the particular device can be See: 4.8.7 Trace Maintenance identified easily. -
Page 13: General Overview
Setup, Network and Communication Manual ESTM / ESTM-L 4.7 General Overview In this overview the most important controller data are available on one page. The bar graph shows the individual limit values and actual measured values. Using the table next to it, the individual values can be assigned in colour and the respective value can be read off. -
Page 14: Maintenance Menu
Setup, Network and Communication Manual ESTM / ESTM-L 4.8 Maintenance Menu Function Description action / - effects on / valid values ranges Controller Adjustable thresholds, set point and condition of Open sub menu see: the controller Function 4.8.1 Controller Limiter... -
Page 15: Controller
Setup, Network and Communication Manual ESTM / ESTM-L 4.8.1 Controller Controller Response: Asymmetric hysteresis up two point controller. If the hysteresis is set, too low, increased contact abrasion may result. This will significantly reduce the lifetime of the device. If the hysteresis is set too high, the temperature of the heater or the work piece may increase. -
Page 16: Limiter
The Limiter option is only available with an ESTM-L. 4.8.2 Limiter The limiter of the ESTM-L follows the requirements for Controlled design of the IEC/IEEE/EN 60079–30–1. SIL II Limiter: The Limiter value is set by an coding element. Coding element will be connected to a marked terminal in the enclosure. -
Page 17: Soft Limiter
IEC/IEEE 60079-30-1. Explosion protection is not ensured by this function. Use hardware limiter of ESTM-L (SIL II) as limiter for ATEX and IECEx applications according to IEC/IEEE 60079-30-1. To activate the smart limiter set the Sensor Mode to both and the Controller mode to soft limiter see also chapter 4.8.6... -
Page 18: Heating/Power Information
Setup, Network and Communication Manual ESTM / ESTM-L 4.8.4 Heating/Power information Function Description action / - effects on / valid values ranges Heater Status Shows the status of the Heater relays (switched - Modbus Input Register 72.2 (status) ON / OFF) -
Page 19: Alarm Status
Setup, Network and Communication Manual ESTM / ESTM-L 4.8.5 Alarm Status In the Active alarm list all Active alarms are displayed. Alarm and Status History: Tracking of previous alarms: The time displayed is the time passed since the last alarm change... - Page 20 Setup, Network and Communication Manual ESTM / ESTM-L Overview of all active alarms and warnings When troubleshooting, supplied OPERATING INSTRUCTIONS, the safety instructions contained there in and the generally applicable safety rules must be observed. List of Alarm and status massages...
- Page 21 Setup, Network and Communication Manual ESTM / ESTM-L Sensor 2 fault low short circuit Sensor limiter fault high Sensor limiter fault low Soft Limiter tripped see 4.8.3 Soft limiter 17-88C1-* Notice Technical data subject to change without notice. Page 21 / 35 11-88C1-7D0002 No claims for damage arising from alternations, errors or misprints shall be allowed.
-
Page 22: Sensor Setup
Setup, Network and Communication Manual ESTM / ESTM-L 4.8.6 Sensor Setup Sensor mode: Selection if one or both sensors are used Controlled by Sets the to be controlled value (Process control Value). Defines the way the to be controlled value (Process control Value) is calculated or which of both sensors is active. - Page 23 IECEx applications according IEC/IEEE 60079-30-1. Explosion protection is not ensured by this function. Use hardware limiter of ESTM-L (SIL II) as limiter for ATEX and IECEx applications according to IEC/IEEE 60079-30-1. Temperature Unit Function Description action / - effects on °C / °F...
-
Page 24: Trace Maintenance
Setup, Network and Communication Manual ESTM / ESTM-L 4.8.7 Trace Maintenance If you activate this function, it will be enabled to reset after 5 minutes, this is to prevent misuse. During these 5 minutes the device is blocked as described below. -
Page 25: System Data
Setup, Network and Communication Manual ESTM / ESTM-L 4.8.8 System Data Here you will find all important information about the device. These can be helpful in case of troubleshooting and maintenance. WARNING If you start the reboot function, the device will shut down and restart. - Page 26 Setup, Network and Communication Manual ESTM / ESTM-L Bluetooth Name: Factory Reset: CAUTION if the Bluetooth name is changed, the Bluetooth If you reset the unit to factory settings, all settings will be connection will be disconnected. It can be reconnected lost: Uncontrolled switching of the connected heater may immediately.
-
Page 27: Import Export
Setup, Network and Communication Manual ESTM / ESTM-L 4.8.9 Import Export The device has an import and export function. Using this, it is possible to save, reload or copy settings on other devices. For this a simple text file is used. - Page 28 Setup, Network and Communication Manual ESTM / ESTM-L Save date from device: export data File press SAVE FROM DEVICE TO FILE The exported *.txt document is saved in the download folder of the mobile device. The file name is the combination of the Bluetooth device name and a sequential number e.g.
-
Page 29: Modbus Rtu / Rs485 Interface
5.1 Line For daisy chaining the ESTM/ESTM-L provides one in and one out Modbus terminal. For end termination, a resistor is already included. To terminate the bus at the last device, a jumper needs to be installed at the “Modbus Out” terminal between Terminal “B”... -
Page 30: Modbus Values
Setup, Network and Communication Manual ESTM / ESTM-L 5.4 Modbus Values 5.4.1 Discrete Input Coil (bit) ModBus Data description intern alarm contact action fault flag / status flag Register (DEC) Type bool Remote maintenance active 5.4.2 Discrete Output Coil (bit) -
Page 31: Input Registers
Setup, Network and Communication Manual ESTM / ESTM-L 5.4.3 Input Registers ModBus Register Data description intern alarm contact action range / additional (DEC) Type int 16 Sensor 1 actual value int 16 Sensor 2 actual value int 16 Limiter actual value... - Page 32 Setup, Network and Communication Manual ESTM / ESTM-L ModBus Register Data description intern alarm contact action range / additional (DEC) Type uint 16 Status byte (16bit) AHC action active Remote maintenance Load contact status 0= opened 1= closed Pre alarm sensor 1 min...
- Page 33 Setup, Network and Communication Manual ESTM / ESTM-L Device internal status and fault logging of the last conditions uint 32 High fault / Low fault [0] See below uint 32 High fault / Low fault [1] uint 32 High fault / Low fault [2]...
-
Page 34: Holding Registers
IEC/IEEE 60079-30-1. Explosion protection is not ensured by this function. Use hardware limiter of ESTM-L (SIL II) as limiter for ATEX and IECEx applications according to IEC/IEEE 60079-30-1. 17-88C1-* Notice Technical data subject to change without notice. Page 34 / 35 11-88C1-7D0002 No claims for damage arising from alternations, errors or misprints shall be allowed. - Page 35 BARTEC GmbH Max-Eyth-Str. 16 97980 Bad Mergentheim Deutschland Tel.: +49 7931 597 0 info@bartec.com bartec.com...
