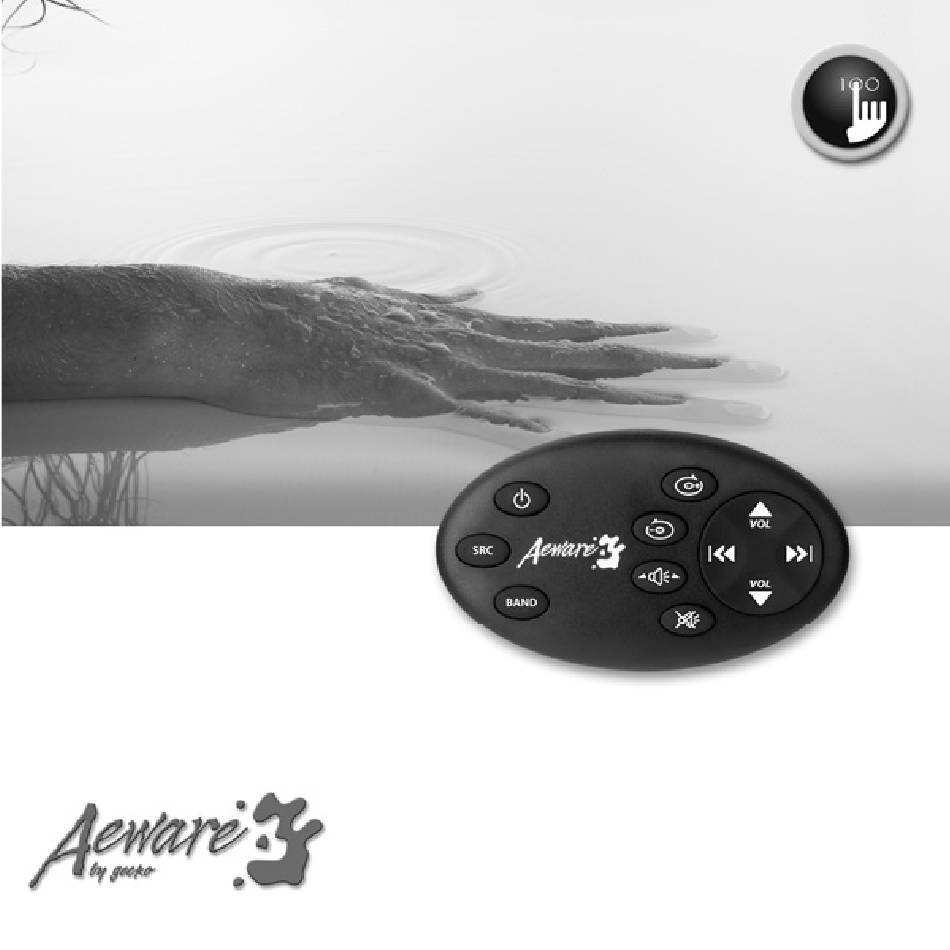

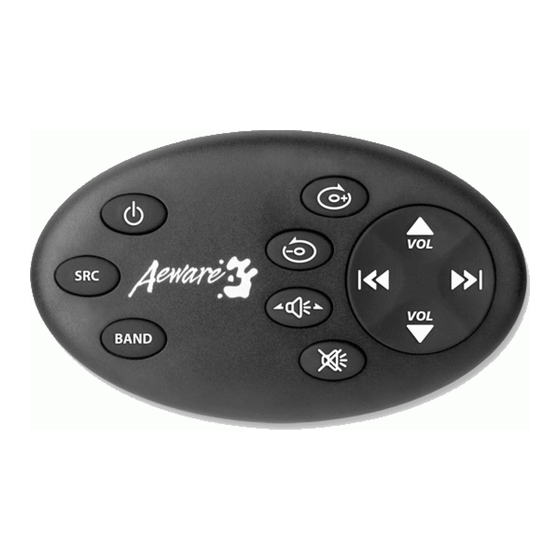

- Page 1 in.k155 wired remote control Specifications & installation Owner's manual Giving full control to wet fingers!
- Page 2 in.K155AEWAREAUDIO/VIDEOKEYPAD Warnings: FAILURE TO COMPLY WITH THE FOLLOWING WARNINGS MAY SIGNIFICANTLY SHORTEN THE PRODUCT’S LIFE TIME, AND LEAD TO FAILURES AS WELL AS HAZARDOUS CONDITIONS*. COMMON SENSE MUST ALWAYS PREVAIL WHEN EVALUATING THE INSTALLATION AND/OR USE OF ANY ELECTRONIC CONTROL IN A FINAL APPLICATION. •...
- Page 3 Compatibility: Mechanical Specs: Radio models supported by in.k155 are: • 3.55’’ (Length) by 2.15’’ (Width) by 0.58’’ (Height). • Aeware in.tune receiver model. • Fixations studs of 1.5’’ • Aeware in.pix audio/video model. • Soft gasket Ratings: • Operating Voltage (+12V and light) 7Vdc to 18Vdc (Typical 12Vdc) •...
- Page 4 Wiring Diagram: Wired remote in.tune in.k155 in.pix Male to male 8-pin mini din cable (supplied with wired remote) Installation: • To install the in.k155, the user must cut out two 1/4’’ dia.holes for the fixation studs and one 7/8’’ dia- meter hole for the cable.
- Page 5 Drilling template: 7/8" dia. 1/4" dia. 1/4" dia. 1.075" 1.075"...
- Page 6 Pressing SRC will allow you to select a source between the following (in order): Tuner, CD/DVD, Aux. Band: Press Band to select between FM1, FM2, FM3, AM1, AM2 and WB (Weather Band available with in.tune only). 9919-100609-B www.geckoalliance.com Rev. 03/07 1.800.78.GECKO...
- Page 7 User Instructions: Fader: Successive presses on will allow you to select from one of the following adjustments: FAD-FRONT: Front speaker only. FAD-REAR: Rear speaker only. FAD-ALL: Front and rear speakers. Folder up: MP3 mode Press to select folder up. Press and hold to advance 10 files forward.
- Page 8 User Instructions: Track Up/ Down: Radio mode Press Track Up/ Down to go to the next or previous preset station. Press and hold Track Up/ Down to make a seek up or down to the next station. Scan mode stops as soon as a strong station is found.
