Amcrest IP4M-SN2110EW-AI User Manual

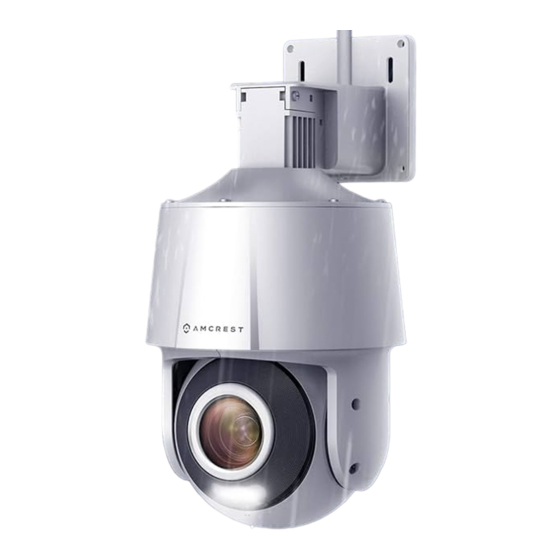

4mp poe ptz ai dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4MP POE PTZ AI Dome Camera
User Manual
Version 1.0.0
th
April 19
, 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP4M-SN2110EW-AI and is the answer not in the manual?

Questions and answers

Related Manuals for Amcrest IP4M-SN2110EW-AI

Summary of Contents for Amcrest IP4M-SN2110EW-AI

  • Page 1 4MP POE PTZ AI Dome Camera User Manual Version 1.0.0 April 19 , 2023...

  • Page 2: Table Of Contents

    Contents Installation Guide .........................3 Camera Access Setup ......................4 App Setup ..........................5 Desktop Access Setup......................9 Live ............................9 Playback ..........................11 Setup..........................13 Camera ..........................13 Network ..........................20 Event ..........................24 Storage..........................30 Destination.........................33 System ..........................35 Information ........................37 Alarm ..........................37...

  • Page 3: Installation Guide

    The camera also features flexible storage options to store recordings to a microSD card (up to 256GB), FTP, NVR, or using the Amcrest Cloud. All these features can be accessed and customized using a web browser or even using the Amcrest View Pro app using a mobile device.

  • Page 4: Camera Access Setup

    Phillips head screwdriver to secure the installation bracket to the mounting surface. Camera Access Setup This section will provide information on how to setup and access your camera through the following methods: Local PC (Web User Interface (Web UI), Amcrest Surveillance Pro, etc.) Amcrest View Pro app Amcrest Cloud...

  • Page 5: App Setup

    1. Download and open the Amcrest Cloud app from the App Store or Play Store. Note: Connect your mobile device to the same network that your camera is on. 2. Register for an Amcrest Cloud account. To register click on Sign Up and fill out the form to complete registration.
  • Page 6 3. Tap on Add Camera 4. Give your camera a name (Ex. Garage, Living Room, Kitchen, etc.) and tap Next to continue. 6. If you are adding a new camera that does not have 5. Scan the QR code on the back/side/bottom of a set password the app will automatically detect that the camera or manually enter the camera’s serial a new camera is being added.
  • Page 7 Download and install the Amcrest View Pro app for the App Store or Google Play Store. Open the app on your mobile device and allow the app to load.
  • Page 8 Note: IP/Domain/DDNS can be used to establish a DDNS connection. For more information on how to setup a DDNS connection, visit amcrest.com/support 7. Create a name for the device and enter a username 8. Update the default password for the device and and password.

  • Page 9: Desktop Access Setup

    To access your camera from your computer you will need to first locate the camera’s IP address. To locate the camera’s IP address is it highly recommended to download our free Amcrest IP Config Tool software. The Amcrest IP Config Tool can be downloaded at the following web page: amcrest.com/downloads...
  • Page 10 The PTZ control panel allows the user to position the camera in different ways. The arrows on the PTZ control panel allow the user to move the camera’s position in a specific direction. The button in the middle of the direction arrow allows the user to select an area in the live view to zoom in on. The speed dropdown box allows the user to control the speed at which the camera moves.

  • Page 11: Playback

    Ensure you have a preset initial setup for the camera. Input the preset value and click Start. To stop the pattern, click Stop. Pan allows the user to set pan presets. The set pan preset allows the camera to pan to specific areas automatically. To create a pan, follow these steps: From the PTZ Function dropdown box, select Pan.
  • Page 12 Manual events. The “All” option will select all recording types in the interface. Cloud Storage The Cloud Storage tab allows the user quick access to the Amcrest Cloud website. At this website (amcrestcloud.com) users can register for new accounts as well as view or modify existing accounts.

  • Page 13: Setup

    Setup The Setup tab allows the user to change different camera settings including configuration, network, PTZ, AI events, profile management, etc. Camera This menu tab allows the user to change different camera settings for video, audio, and encode settings. Configuration The Configuration menu allows the user to configure image profiles for normal, day, and night usage.
  • Page 14 Flip: This dropdown box allows the user to flip the video feed picture. Flipping the picture is recommended only if the camera is mounted upside down. To reset to default settings, click the Reset Defaults button. To refresh the screen, click on Refresh. To save the settings, click the Save button.
  • Page 15 This menu allows the user to adjust white balance settings. Below is an explanation of the features provided in this menu. Profile: This dropdown box allows the user to select which profile to modify. The 3 options are Day, Night, and General.
  • Page 16 To reset to default settings, click the Reset Defaults button. To refresh the screen, click on Refresh. To save the settings, click the Save button. Focus & Zoom This menu allows the user to adjust digital focus and zoom settings. Profile: This dropdown box allows the user to select which profile to modify.
  • Page 17 Smart Codec: This option allows the user to enable or disable the smart codec. Smart codec is a function in most Amcrest cameras which aim to reduce bandwidth consumption without losing visible image quality by intelligently increasing compression where it will not make a visible difference in the scene.
  • Page 18 The overlay tab allows the user to customize channel titles, time, OSD information, and/or custom titles. This menu also allows the user to enable or disable the Amcrest overlay on the live view screen. Please note, due to certain limitations within the camera, it does not offer features such as privacy masking. Below is an explanation of the features in this menu.
  • Page 19 The logo overlay menu allows the user to enable or disable the Amcrest overlay logo in the interface. Enable – This radio button allows the user to enable the Amcrest Overlay. The logo can be placed in different areas of the interface by clicking the overlay on the interface and moving it with your mouse to a desired area.

  • Page 20: Network

    The P2P settings screen is where users can use a QR code to connect their smartphone or tablet to the camera. This feature needs to be enabled for use with the Amcrest View app, or other software that requires P2P.
  • Page 21 QR code scanning feature cannot be used. QR Code: This image is a Quick Response (QR) code. By scanning this image using the Amcrest View app, this camera can establish a connection with the app.
  • Page 22 DDNS services such as AMCRESTDDNS and NO-IP DDNS. Based on which service is selected, different options may show on this screen. Please note, AmcrestDDNS is a free DDNS service provided by Amcrest, and it must be renewed every year. A renewal reminder email will be sent to the email entered in the username field below. For more information on how to setup DDNS on your device, please visit amcrest.com/support.
  • Page 23 Authentication: This dropdown box allows the user to select an encryption type. There are two types of email encryption protocols that are available: SSL: Secure Socket Layer TLS: Transport Layer Security Connection: This field allows the user to enter the port that corresponds to the selected SMTP server. Login Anonymously: This checkbox allows the user to anonymously login to the server.

  • Page 24: Event

    Idle Motion: Allows the user to set intervals of idle time before the preset quits. The idle time can be set from 1 ~ 60 minutes. Power Up: Allows the user to set PTZ controls to enable startup. Click Enable to enable this function, select the Preset, Tour, Scan, Pattern, or Auto options to enable each function to being on startup.
  • Page 25 Remember to click the save button on the motion detection settings screen, otherwise the motion detection zones will not go into effect. Clicking the cancel button to leave the motion detection zone and will not save the zone setup. Record: This checkbox allows the user to enable the camera to record video when a motion detection alarm is triggered.
  • Page 26 Setting an IVS Rule All IVS rules can only be set and/or modified using the web user interface. They cannot be set using the Amcrest View Pro app or any other platforms associated with your device. For more information on setting IVS rule, refer to the information below.
  • Page 27 Access the IVS menu and click on the Add ( ) icon to begin customizing IVS rules. Use the dropdown menu in the Rule Type column to select which IVS rule you want to use. Tripwire Tripwire allows the camera to trigger an event if an object, such as a human or vehicle, crosses the set tripwire line.
  • Page 28 6. Click the Draw Rule option and use your mouse to draw the rule on the live monitoring screen. Once the rule has been drawn click the monitoring screen to finish setting the rule. The drawn line will turn blue/green when set depending on the browser you are using.
  • Page 29 Setting an Intrusion Area 1. Select Intrusion from the Rule Type drop down menu. Set a name for the rule by double clicking the mouse over the Name of the rule. 2. Click on Setup to set a schedule, set your periods (if any) and click Save to continue. 3.

  • Page 30: Storage

    Record Delay: This field specifies in seconds how long the delay between alarm activation and recording should be. To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button. Illegal Access This tab allows the user to set the camera’s response to an Illegal Access related abnormality.
  • Page 31 Below is an explanation of the fields on the Record Schedule settings tab: Record Type: These checkboxes allow the user to select which recording type they want to configure on the schedule. There are 3 types of recordings: General: General recording means that the camera captures all footage for the specified time period. General recording is represented by the color green.
  • Page 32 Below is an explanation of the fields on the Snapshot Schedule settings tab: Record Type: These checkboxes allow the user to select which snapshot type they want to configure on the schedule. There are 3 types of snapshots: General: General means that the camera will take snapshots during the specified time period. General recording is represented by the color green.

  • Page 33: Destination

    Below is an explanation of the fields on the Holiday Schedule settings tab: Record Type: These checkboxes allow the user to select which recording type they want to configure on the schedule. There are 2 types of recordings: Record: This checkbox is referring to video recording. Snapshot: This checkbox is referring to snapshot recording.
  • Page 34 SD Card This tab is where the user can change SD card settings. Below is an explanation of the fields on the SD Card settings tab: Device Name: This column designates the name of the SD card that is currently in the camera. Status: This column designates the status of the SD card.

  • Page 35: System

    System This menu section allows the user to change general settings for the camera. General This tab is where the user can configure some basic camera settings. Below is an explanation of the fields on the General settings tab: Device Name: This field allows the user to change the device’s name. Language: This dropdown box allows the user to change the language used in the camera.
  • Page 36 To refresh the page, click the Refresh button. To save the settings, click the Save button. Upgrade This menu allows the user to upgrade the camera’s firmware. To upgrade the firmware for your camera, follow the steps provided below: Go to amcrest.com/firmware...

  • Page 37: Information

    Search for the model number of your camera and download the latest firmware file. Return to the web user interface for your camera and press the Browse button to locate and import the firmware file you just downloaded. Once the firmware file has been imported, click Upgrade. The device will reset, return to the web user interface.
  • Page 38 Clicking the logout button will log you out of the interface and return you to the main login page. Port Forwarding Remote Web Access Setup Port Forwarding is an alternative method to setting up remote access for Amcrest cameras. This method should only be used if the UPnP/DDNS Remote Access method did not work.
  • Page 39 4. View your camera live or watch recorded clips using the menu button on the top of the page. You can also use the Amcrest Cloud app on iOS and Android to add more cameras, play recordings, and view your camera live, from anywhere.
  • Page 40 with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
  • Page 41 All the designs and software here are subject to change without prior written notice. All trademarks and registered trademarks mentioned are the properties of their respective owners. To contact Amcrest support, please do one of the following: Visit http://amcrest.com/contact and use the email form...
