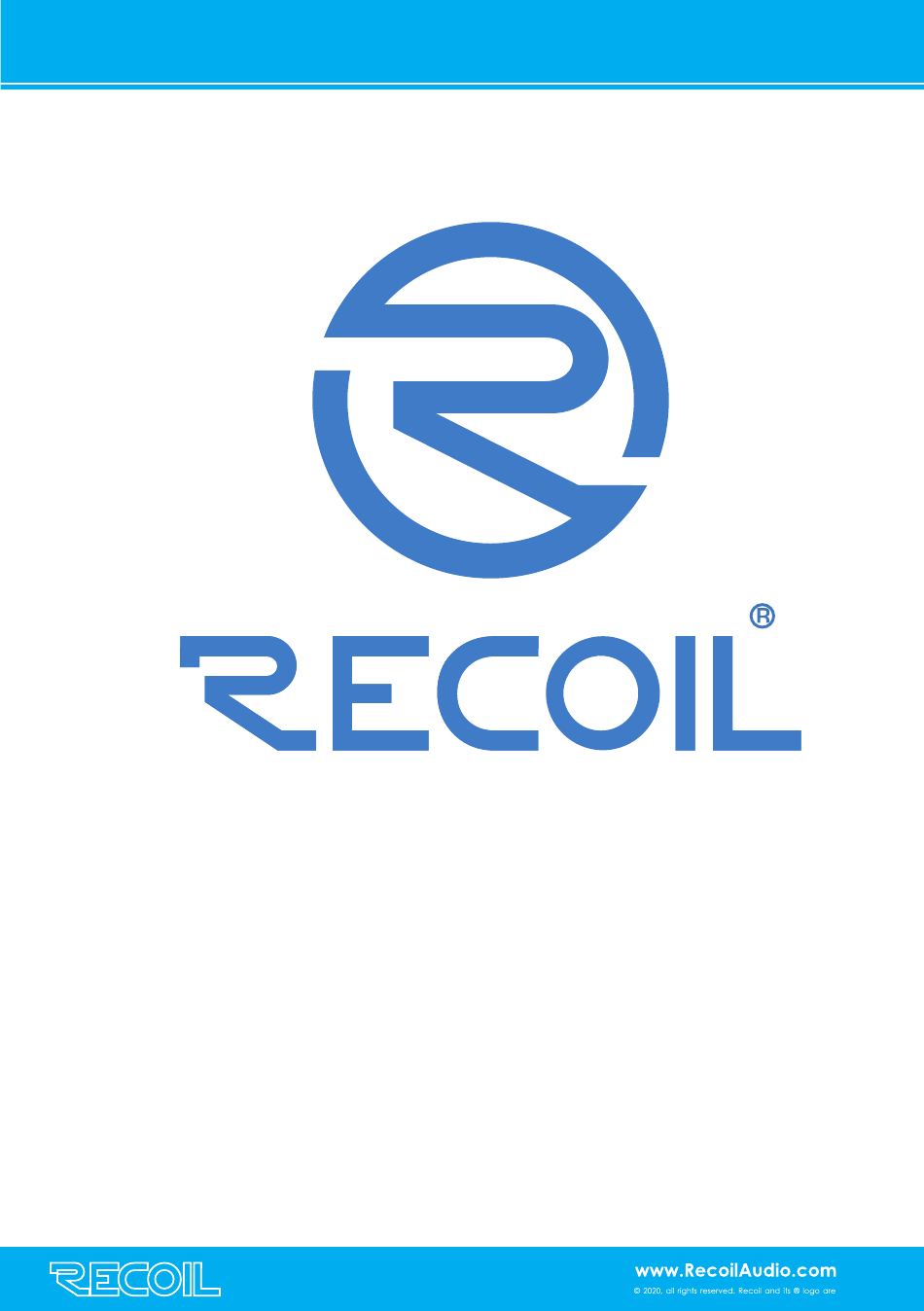

- Page 1 CAR AUDIO AMPLIFIER RED600.1/RED1200.1/REA60 0.4 RED600.1/RED1200.1/REA600.4 CAR AUDIO AMPLIFIER User Manual...
- Page 2 CAR AUDIO AMPLIFIER RED600.1/RED1200.1/REA600.4 INTRODUCTION Thank you for purchasing a Recoil amplifier for your car audio system. You have chosen Recoil because you deserve the best! Please thoroughly read through this manual before getting started. If you have any questions and require additional assistance, please contact support@re- coilaudio.com.
- Page 3 CAR AUDIO AMPLIFIER RED600.1/RED1200.1/REA600.4 HEAD UNIT FUSE-HOLDER GROUND GROUND BATTERY BATT ( 12V POWER ) Before mounting amplifiers, disconnect the negative cable from the battery to protect any accidential damage to your amplifiers and audio system. Connect the power cables to power terminal 12V.
- Page 4 CAR AUDIO AMPLIFIER RED600.1/RED1200.1/REA600.4 FRONT PLATE RED600.1 & RED1200.1 RCA INPUT The RCA jacks allow for a normal Left and Right channel signal input. Simply connect to the source unit using RCA type audio cables, keeping them away from power wiring wherever possible to reduce risk of noise.
- Page 5 CAR AUDIO AMPLIFIER RED600.1/RED1200.1/REA600.4 FRONT PLATE REA600.4 RCA INPUTS The RCA jacks allow for a normal Left and Right channel signal input. Simply connect to the source unit using RCA type audio cables, keeping them away from power wiring wherever possible to reduce risk of noise.
- Page 6 CAR AUDIO AMPLIFIER RED600.1/RED1200.1/REA600.4 RCA INPUT WIRING DIAGRAM RED600.1 & RED1200.1 HEAD UNIT REA600.4 HEAD UNI SPEAKER CONNECTION DIAGRAM RED600.1 & RED1200.1 Caution !! RED600.1&RED1200.1 minimum working impedance is 1Ohm...
- Page 7 CAR AUDIO AMPLIFIER RED600.1/RED1200.1/REA600.4 SPEAKER CONNECTION DIAGRAM REA600.4 Caution !! REA600.4 minimum working impedance is 2Ohm Caution !! REA600.4 minimum bridge working imededance is 4Ohm...
- Page 8 CAR AUDIO AMPLIFIER RED600.1/RED1200.1/REA600.4 SPECIFICATONS Model RED600.1 RED1200.1 REA600.4 RMS power @ 4 ohm 1 x 350W 1 x 550W 4 x 95W RMS power @ 2 ohm 1 x 550W 1 x 900W 4 x 130W RMS power @ 1 ohm...
