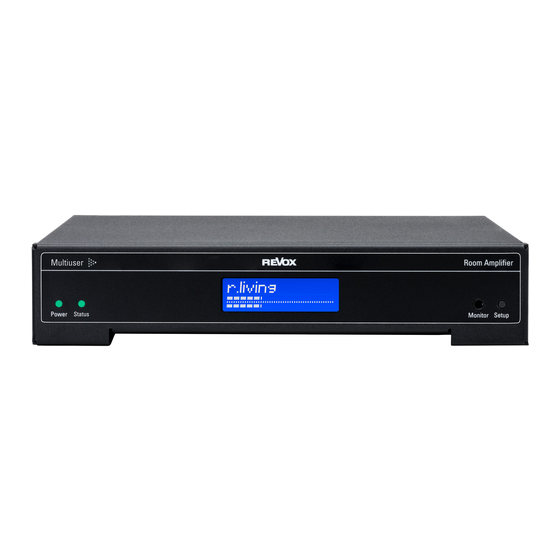

- Page 1 User Manual Multiuser Amplifier...
-
Page 2: Table Of Contents
Environmental conditions in the rack ............................8 Installation with wall-mounting bracket ..........................9 Integration ................................ 10 First steps .................................... 10 Establishing a new WLAN connection (manually activating REVOX Connect) ..............11 I/O module ................................ 12 Installing module ................................. 12 Connections ..................................13 Anschlussbeschreibung ................................ -
Page 3: Introduction
Introduction Congratulations on acquiring your new M30 Multiuse amplifer. We would like to thank you for the trust you have shown in our company by purchasing this high-quality product. Before commissioning your Revox M30, you should pay attention to the following instructions in order to fully benefit from the acoustic qualities of the product. -
Page 4: Front Of M30
M30 is switched on and connected to the network, playback is running ⚫ ⚫ M30 in Standby M30 active in the background: one or more inputs from an optional module are ⚫ ⚫ in sensitive mode and/or are being streamed from other amplifiers. -
Page 5: Display
A % display informs about the update progress. If the M30 does not receive an IP address via WLAN or LAN, it indicates this with the message "No network". At the same time, it activates the Revox Connect interface in the background. -
Page 6: Connection Panel
Unit-specific information USB mini USB mini socket for update (only manufacturer) Antenna for WLAN connection. Network integration of the M30 via wireless WLAN connection or initial start-up with WLAN antenna the help of REVOX Connect via BLE (Bluetooth Low Energy) connection. -
Page 7: Detailed Description /Connection Panel
All products have one thing in common, that they send and/or forward RC5 commands to the M30. If the M30’s Trigger OUT is not being used, devices with an overall current of up to 80 mA may be connected to the IR Link. The individual current requirements in [mA] are listed above. -
Page 8: Rack Installation
The M30 has a recess to the left and right of the front edge which the metal lugs of the tray (upper picture / ) fit into. Locate the amplifier, lined up with the right or the left of the tray and push it backwards until it reaches the back wall of the tray. The amplifier is now fixed in place horizontally at the front and vertically. -
Page 9: Installation With Wall-Mounting Bracket
The amplifier can now be placed on the bracket. It must be ensured that the M30 lies flush against the bracket and that its two lugs are located in the recesses beneath the front of the M30 (lower picture / ). -
Page 10: Integration
A network connection is required for the operation of the M30 Multiuser Amplifier in a Multiuser system. If the connection to your own network is not wired via LAN using a network cable, you will need a mobile device (Revox C200, smartphone or tablet) with Bluetooth and WLAN function. -
Page 11: Establishing A New Wlan Connection (Manually Activating Revox Connect)
Revox Connect function can be reactivated with the routine shown. A. Press the Setup button on the M30 for more than 3 seconds. This activates the Revox Connect function. This is indicated in the display by REVOX Connect - Enabled. -
Page 12: I/O Module
It is therefore best to discharge yourself by making contact with a radiator or similar. Remove the module from the packaging and insert it into the slot; the two rails inside the M30 Multiuser Amplifier form the mechanical guide. -
Page 13: Connections
- Variable output (level/ tone control in parallel with power amplifier) - Headphone output (variable, but mute independent) The analogue output of the M30 can be configured with its own DSP, independent of the power amp. Analog Input* Analogue audio input, max. input voltage: 2.0 V eff. -
Page 14: Technical Data M30
A further 50 - 60 mm have to be calculated in for cable and plugs Measured without any speakers or external devices (e.g C18 Multiuser Wall Control) M30 is active in the background: Inputs of the optional I/O module are in sensitive mode or are streamed to other amplifiers. - Page 15 Revox Deutschland GmbH | Am Krebsgraben 15 | D-78048 VS-Villingen| Tel.: +49 7721 8704 0 | info@revox.de | www.revox.com Revox (Schweiz) AG | Eichwatt 5 | CH-8105 Regensdorf | Tel.: +41 44 871 66 11 | info@revox.ch | www.revox.com Revox Handels GmbH | Josef-Pirchl-Straße 38 | AT-6370 Kitzbühel | Tel.: +43 5356 66 299 | info@revox.at | www.revox.com...
