Battery System Quick Start Guide
Battery System: GoodWe Lynx Home F Series Battery and
GoodWe ET* GEH ** EH*** Series Inverter
*
GW5kL-ET, GW10KL-ET, GW15K-ET, GW20K-ET, GW25K-ET, GW29.9K-ET
Note: Installation of the PV system is not within the scope of this document.
Disclaimer of Liability and Warranty: This pictorial guide does not replace installation manuals supplied
with the components. Solahart assumes no responsibility for loss, damage or expense resulting from
improper installation, handling, or misuse of components. Refer to the warranty statement in the Solahart
Owner's guide for full warranty terms and conditions.
The Australian Consumer Law: Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Installer Responsibilities
The installer is solely responsible for:
Observing and conforming to all relevant Australian Standards, all relevant Clean Energy Council
Accreditation guidelines and all applicable laws, ordinances, regulations, codes of practice and local
or national building codes, including any that may have superseded this guide.

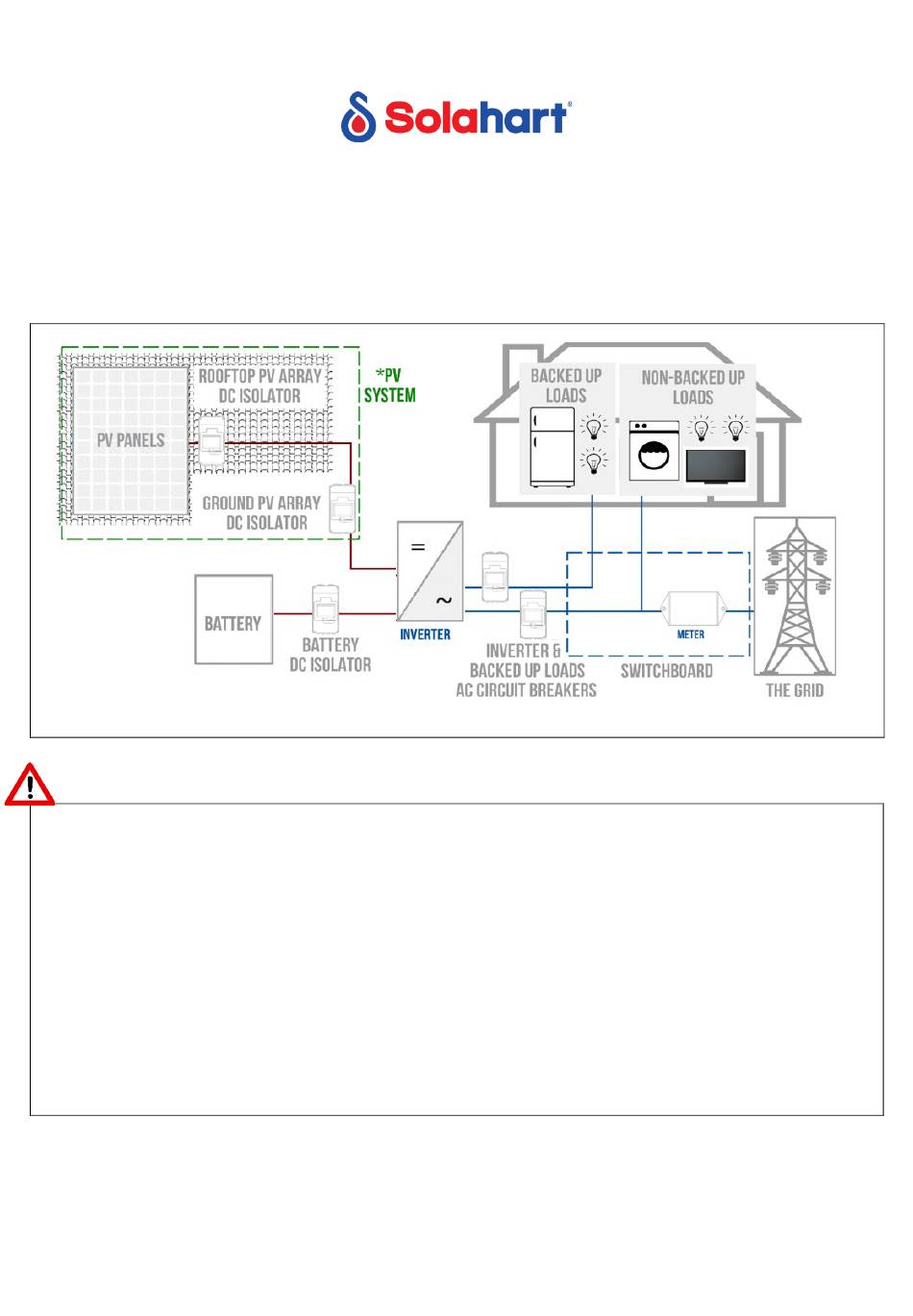

System Overview Diagram
Warnings
1
** GEH8.6-1U-10, GEH10-1U-10 *** GW5000-EH

Advertisement

loading
Need help?

Need help?

Do you have a question about the GoodWe Lynx Home F Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Solahart GoodWe Lynx Home F Series

  • Page 1 Disclaimer of Liability and Warranty: This pictorial guide does not replace installation manuals supplied with the components. Solahart assumes no responsibility for loss, damage or expense resulting from improper installation, handling, or misuse of components. Refer to the warranty statement in the Solahart Owner’s guide for full warranty terms and conditions.
  • Page 2: Tools Required

    • Ensuring only parts supplied by Solahart Industries and installer supplied parts as specified by Solahart Industries are utilised (substitution of parts may void the warranty and invalidate certification). Ensuring that mounting fasteners have adequate pull-out strength and shear capacities to suit the •...
  • Page 3: Planning The Installation

    Planning the Installation Installation environment • The battery is floor/wall mounted as per the instructions provided in this guide. • The operating temperature (charge / discharge) for the battery is -0℃~50℃/-20℃~50℃. • Avoid exposing the equipment to direct sunlight or rain. •...
  • Page 4 Mounting space requirements for the GoodWe Lynx F Series Battery Floor mounting space requirements: Angle requirements: Note: Battery mounting and installation must comply with Australian standards. Note: The Installation location of the Battery must also comply with the requirements of AS/NZS 5139. Note: Refer to the relevant inverter guide for inverter spacing requirements.
  • Page 5 Cabling and Conduits Note: Each kit contains connectors/terminal lugs. Any earthing cable, AC cable and conduits are not supplied by Solahart and should be selected based on the following criteria. Inverter DC/AC cabling must be sized and installed in accordance with AS/NZS 3000, AS/NZS 3008.1.1 and any local applicable codes.
  • Page 6 Refer to the following table for circuit breaker sizing between battery and inverter: 1 Battery Tower Battery Battery Battery Battery Battery Battery Battery Towers Towers Towers Towers Towers Towers Towers Number batteries 3 Phase Hybrid GW5kL- 32 A 32 A 32 A 32 A 32 A...
  • Page 7 COMMUNICATION CABLING Communication cables are provided and pre-fitted on GoodWe Inverters. Extension of communication cable is permitted to the maximum length specified in the table below. Provided Cable Cable Description Cable Type Maximum Length Length Cable between Inverter and Data cable with RJ 45 connector pre- 10 m 100 m Smart Meter...
  • Page 8 Unpack contents from the GoodWe battery packaging. Warning: Battery modules are heavy (approximately 45 kg each). It is recommended that the installation is done by two people. Note: If multiple batteries are to be connected, check that the production date is similar and cell grade is the same.
  • Page 9 • Ensure that the base stands on the floor vertically. • Ensure that the base clings to the wall and the arrow points outward. • Ensure that all batteries cling to the wall and the arrow points outward. • Align the holes of the upper and the lower battery modules when placing the upper battery module. •...
  • Page 10 4. Fix the expansion bolts, tightening torque: 4N·m.
  • Page 11 Battery System Installation(With adjustable leveling feet) Installation of PCU...
  • Page 12 Connecting Terminal resistor...
  • Page 13 Installing the protection cover Note: The battery shall be installed and mechanically protected according to CEC Battery Installation Guidelines and AS/NZS 5139. This includes:...
  • Page 14: Mounting The Inverter

    Providing restricted access to the battery system designed to prevent access by unauthorised • persons. Where subject to potential physical damage, mechanical protection shall be provided to the battery • system to minimise the risk of such, resulting in electrolyte leakage, including: o Crushing o Impact o Puncturing...
  • Page 15 Mounting Smart Meter The Smart Meter can be attached to a DIN rail inside the switchboard via mounting clips supplied with the Meter. Note: Check Smart Meter and CT communication cable to ensure insulation is rated for the highest voltage present inside the switchboard.
  • Page 16 ET Series Inverters Refer to the relevant ET Series Inverter manual for further information, GEH Series Inverters...
  • Page 17 EH Series Inverters Communication Cable Wiring INVERTER Communication cables to the Battery (CAN COM) and the Smart Meter (RS-485) are pre-installed at the inverter. Check all connections prior to installation. All communication cabling between inverter, battery and metering shall be mechanically protected to prevent damage from vermin and tampering from unauthorised users.
  • Page 18 GEH and EH Series BATTERY Connecting the Communication Cable Do not use RJ45 cable with protective cover. • When one battery is applied, connect one communication cable to the inverter by RJ45 connector • and connect the other cable to the terminal resistance. When multiple batteries are applied, connect the communication ports in series using net cables.
  • Page 19 2. Route the cable through the waterproof module. 3. Crimp the RJ45 Registered Jack. 4. Secure the back cover. 5. Connect the communication cable and the terminal resistance to the battery.
  • Page 20 6. Secure the cover. METER Follow instructions from GoodWe ET, EH and GEH User Manual to connect the communication cable from the Inverter. Note: Check the communication cables to ensure the insulation is rated for the highest voltage present inside the switchboard. Additional insulation may be required. Note: If extension of communication cable is required, a female RJ45 joiner may be used to avoid crimping the connector.
  • Page 21 Ensure each conductor is stripped and exposes appropriate amount of copper. Crimp the cables to the terminal lugs using mechanical hydraulic press pliers. All crimping shall be performed by an appropriately qualified technician.
  • Page 22 Cover an unused power supply ports with protective covers. Ensure the polarity of the cables is correct to prevent any fuses from blowing. Place wiring harness bar over the communication and power cables to protect them from damage. Install with M5 fasteners. NOTE: A DC circuit breaker is ‘in-built’...
  • Page 23 Configuration of Backup Loads Panel (Optional) If Backup functionality is required, follow the instructions below to configure the backup circuit distribution board. Size any AC Circuit breakers and Backup Load panel based on the following table: Max. Backup Peak Backup Power Backup Max.
  • Page 24 Design Checklist for backup circuits: The circuits must not be overloaded. • • Ensure correct polarity of all battery conductors AC breakers should be sized in accordance with AS/NZS 3000. • Backup panels and circuits must be labelled in accordance with AS/NZS 3000. •...
  • Page 25 17. Click “Overview” and check if the battery charges and discharges according to power production and usage. 18. If there are any problems commissioning the system, contact a local Solahart Dealership immediately. Warning: If the battery system is not commissioned immediately after installation, turn off the Battery Internal Circuit Breaker to avoid over-discharge and permanent damage to the Battery cells.
  • Page 26 The purpose of labelling is to clearly indicate that the electrical installation has multiple supplies and which circuits are affected by these supplies. Labelling also identifies the components that isolate the various supplies. The following table details labels that are supplied for Solahart Battery Systems.
  • Page 27 Description Location Item Place in document holder Battery Safety Datasheet (SDS)- provided with the Provided with the Battery at the main switchboard or Battery meter box On or immediately adjacent White text on to the meter box and main green background switchboard Prominent position adjacent to the GoodWe...
  • Page 28 Black text on Battery D.C. Circuit white background Breaker Black text Inverter AC isolator (If required) white background White text Inverter main switch in switchboard red background White text Inverter AC backup load switch in switchboard red background White text on Prominent position red background adjacent to the Battery...
  • Page 29 Black and white text with Prominent position symbols on adjacent to the Battery white background Black text Prominent position adjacent to the Battery white background Black text on yellow Prominent position background adjacent to the Battery Black text on yellow On every single Battery background Module...
  • Page 30 Adjacent to the battery or Black and white text with on all doors to the room symbols on where the battery is white background located...
  • Page 31: Final Checklist

    Verify Wi-Fi communication by checking Inverter “com” LED light. □ Ensure the customer’s site is set up on GoodWe monitoring portal. □ Ensure the customer has access to monitoring portal. Complete the Solahart Warranty Registration and Installation Checklist and submit to Solahart. □ If Backup loads are connected: □...
  • Page 32 Solahart Industries Pty Ltd (A.B.N. 45064945848) For SERVICE Telephone – 1800 638 011 Registered Office or your nearest Solahart Dealer For Sales Telephone – 1300 769 475 1 Alan Street Rydalmere New South Wales 2116 or your nearest Solahart Dealer Australia www.solahart.com.au...
