Summary of Contents for Tomahawk eTMD14

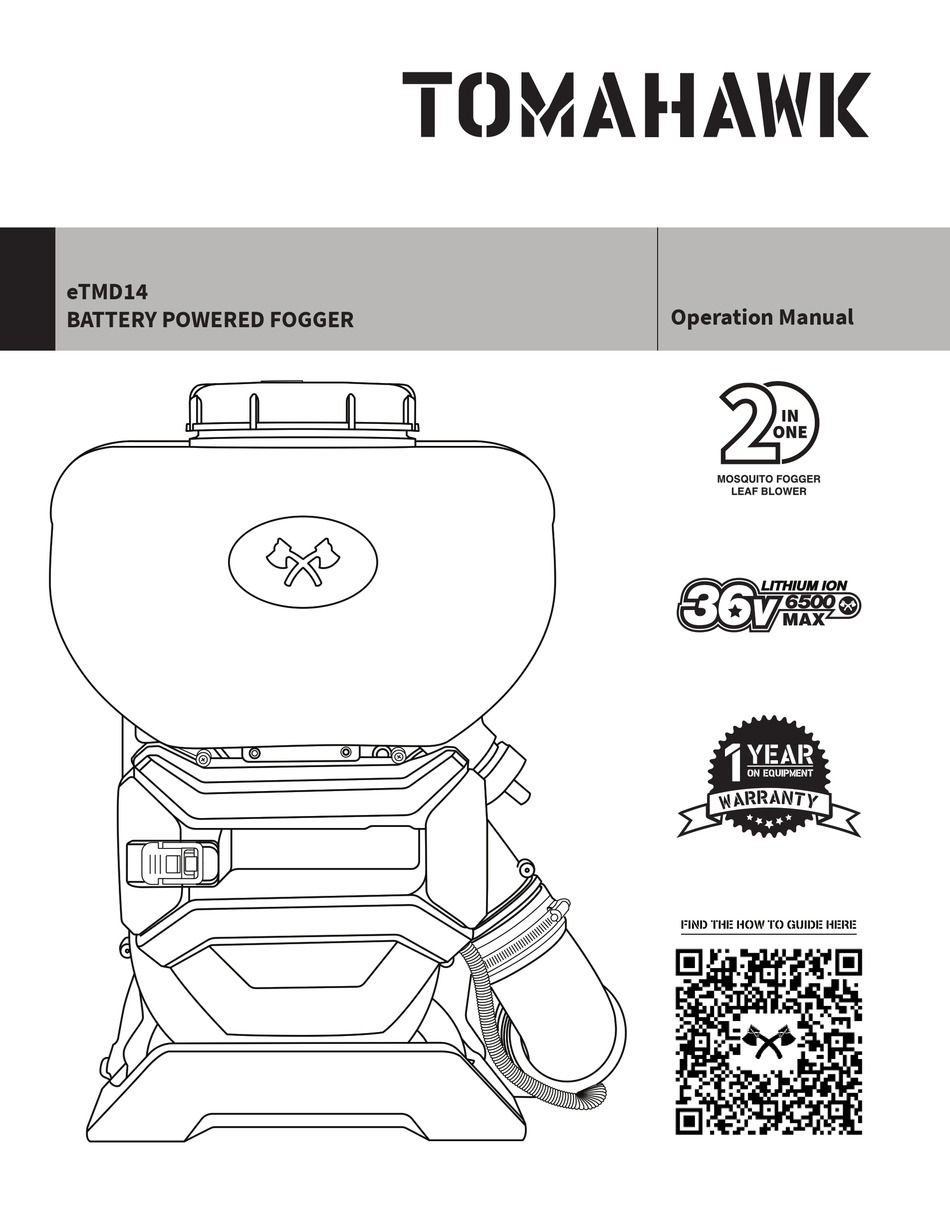

- Page 1 Operation Manual BATTERY POWERED FOGGER FIND THE HOW TO GUIDE HERE...
-
Page 2: Table Of Contents
7.4 Filling the Tank 7.5 Mist Blowing Tips 7.6 Adjusting the Discharge Rate 7.7 When Spraying is Complete 7.8 Leaf Blowing Tips 8. STORAGE 9. REPLACEMENT PARTS 10. TROUBLESHOOTING 11. EQUIPMENT WARRANTY 12. PARTS MANUAL 13. TOMAHAWK CATALOG & COUPON... - Page 3 Register Your Equipment Thank you for purchasing TOMAHAWK® equipment! Your product is covered by the TOMAHAWK® Warranty Policy, but in order to activate your warranty, we need you to register your product. In addition to activating your equipment warranty, product registration will grant you access to important product updates, streamlined customer service, and more.
-
Page 4: Safety Information
TOMAHAWK® . The information contained in this manual is based on equipment’s production at the time of publication. TOMAHAWK® reserves the right to change any portion of this information without notice. No part of this publication may be reproduced in any form or by any means, electronic or mechanical, including photocopying, without express written permission from TOMAHAWK®... -
Page 5: Operating Safety
Indicates a possibly dangerous situation. Where there is a risk of damaging the machine or its individual components. Indicates to read the Operation Manual. It is important that you read the operation manual before first use and keep it in a safe place for future reference. 2. -
Page 6: Chemical Handling
If the liquid comes in contact with eyes, flush out eyes with water for 10 minutes and seek medical attention immediately. 2.4.10 Have all servicing done by an approved TOMAHAWK® Technician or Service Center with original replacement parts. -
Page 7: Equipment Performance
3. EQUIPMENT PERFORMANCE 3.1 Backpack Fogger Design TOMAHAWK® Battery Powered Mosquito Foggers are your best solution for fighting annoying mosquitoes. Powered by a 36V/9Ah Lithium-Ion battery, spray 1 acre of land in less than 30 minutes to stop pests fast! Great for year-round use, this machine is perfect for applying... -
Page 8: Battery Fogger Parts
Do not throw away the packaging or packing material until you have inspected all parts and successfully operated the machine. Do not discard this operations manual. If any parts are missing or damaged, please contact TOMAHAWK® customer support by email at support@tomahawk-power.com or call (866) 577-4476. 3.6 Spraying Accessories Visit www.tomahawk-power.com for a wide assortment of accessories, attachments, and... -
Page 9: Equipment Assembly
4. EQUIPMENT ASSEMBLY 4.1 Warnings WARNING To avoid injury or damage to this machine, the blower tube must be used when operating this backpack fogger. NOTE: The blower tube is not assembled WARNING on this unit. WARNING If any parts are missing or damaged, do not operate this backpack fogger. - Page 10 4.2.3 Slide the throttle control handle over the connecting pipe and secure in place with the screw and a phillips head screwdriver. FIGURE 3. 4.2.4 Connect the blower pipe to the other end of the connecting pipe. Twist to lock in place.
- Page 11 FIGURE 8. NOTE: To secure in place, use a hose clamps at the ends of the clear tube. FIGURE 7. 4.2.9 The eTMD14 Backpack Mosquito Fogger is fully assembled. FIGURE 9. FIGURE 8 FIGURE 9...
-
Page 12: Charging The Battery
5. CHARGING THE BATTERY 5.1 Warnings WARNING Do not insert any electrically conductive objects in the charging socket or the battery may be damaged by a short circuit. WARNING WARNING - DANGER OF FIRE - A short circuit in the charging socket can lead to a cable fire in the battery. -
Page 13: Backpack Straps Adjustment
6. BACKPACK STRAPS ADJUSTMENT Make sure your backpack straps and harness are well adjusted for proper operation. Adjust the straps for comfortable machine placement. Adjust the cross-body harness so the machine weight is equally distributed across the operator’s shoulders. 6.1 Once the machine is comfortable on your back, connect the top horizontal chest buckle FIGURE 11 and then tighten by pulling on the end of the strap. -
Page 14: Operation
7. OPERATION 7.1 Holding the Tool 7.1.1 gloves, and a long-sleeved shirt and long pants to cover as much exposed skin as possible. 7.1.2 a level wall or the back of a truck and then putting on the straps. 7.1.3 This tool is design to be operated with one hand. 7.1.4 This tool operates with a gravity fed tank. -
Page 15: Cruise Control Setting
7.3 Cruise Control Setting This tool’s throttle control handle includes a cruise control function to set and lock your ideal blowing speed. 7.3.1 Start the machine’s blowing by squeezing the red trigger (A) on the throttle control handle. 7.3.2 Once you have found your ideal blowing speed, pull the red lever (B) back clockwise to lock the speed at the desired setting. -
Page 16: Mist Blowing Tips
7.5 Mist Blowing Tips 7.5.1 During your first use of this machine, before using any chemicals, perform a trial run with the tank filled with clean water only. During the trial run, understand the machine’s fluid flow rate and working width. The recommended working width for low-growing foliage 7.5.2 Make sure that the nozzle is not directed at anybody or any loose debris before starting the machine. -
Page 17: When Spraying Is Complete
If you do not plan to use the charger for any other TOMAHAWK® equipment, place it with the battery pack as well. 8.5 Place the machine in a dry area on an even, level surface - away from any sunlight. Secure... -
Page 18: Replacement Parts
9. REPLACEMENT PARTS 9.1 For replacement parts and technical questions visit www.tomahawk-power.com or scan the QR code on the front of this manual. 9.2 Not all equipment components are available for replacement. The illustrations within this manual are a convenient reference to the location and position of parts in the assembly sequence. -
Page 19: Equipment Warranty
11. EQUIPMENT WARRANTY Your new TOMAHAWK® equipment is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The TOMAHAWK® warranty is against defects in design, materials and workmanship. The following are not covered under the warranty: 11.1 Damage caused by abuse, misuse, dropping or other similar damage caused by or as a... - Page 20 POWER YOUR WORLD Powered by a superior 7Ah lithium battery with up to 11 hours of life adjustable pressure from 20 to 70 PSI, Tomahawk Battery Sprayers are perfect for spraying residential and commercial areas! Item #: eTPS18 4.75 GALLON BATTERY BACKPACK SPRAYER www.tomahawk-power.com...
-
Page 21: Parts Manual
Parts Manual BATTERY POWERED FOGGER... -
Page 22: Tomahawk Catalog & Coupon
FRAME & POWER UNIT... - Page 23 FRAME & POWER UNIT Part Number Part Name Qty. 3WBD-8-4 Frame GB/T 96.1 Washer 6 GB/T 6177.1 M6 Nut 3W-950.5 Rubber Pillar 3F-30.12 Rubber Pillar 3W-15A.2-1 Volute Case GB/T845 ST4.8×19 St4.8×19 'Screw GB/T889.1 M8 Nut GB/T93 Washer 8 GB/T96.1 Washer 8 3WBD-8.1.3 Impeller 3WBD-8.1.1-1...
- Page 24 THROTTLE CONTROL & BLOWER ARM 39-9 39-8 39-7 39-6 39-5 39-4 39-10 39-3 39-11 39-2 39-1 39-12 39-13...
- Page 25 THROTTLE CONTROL & BLOWER ARM Part Number Part Name Qty. 3F-30.18-4 Rubber Sleeve JB8870 ( 70- 90) Hoop 3WF-8.11-1 Tube EB-650.7.1 Blowpipe 3WF-2.6B.4 Support GB/T70.1+GB/T93+GB/T848 Screw Assem M5×16-10.9 3W-950.4 Rubber Pillar 3WF-3.19-1 Clip LS-10×1.5×800 Tube 3WF-3.19.1 Cock Assem EB-650.5.3 Lock Screw 3WBD-8.2 Handle 39_1...
- Page 26 3 Year Engine Warranty & 1 Year Product Warranty 3 Year Engine Warranty & 1 Year Product Warranty HAVE QUESTIONS? HAVE QUESTIONS? Contact us. We’re here to help! Contact us. We’re here to help! Email us at sales@tomahawk-power.com Email us at sales@tomahawk-power.com...
- Page 27 1 Year Product Warranty 3 Year Engine Warranty & 1 Year Product Warranty 1 Year Product Warranty * All coupons in this manual are valid only for orders placed on www.tomahawk-power.com, unless otherwise noted. Coupon codes ASSEMBLED IN THE ASSEMBLED IN THE may only be used once per customer and may not be combined with any other offer.
- Page 28 With same day shipping and faster delivery times, count on Tomahawk to keep you powered throughout the day! With long lasting parts and engines, Tomahawk equipment will be the star of your fleet for years to come. Visit www.tomahawk-power.com to get started today!
