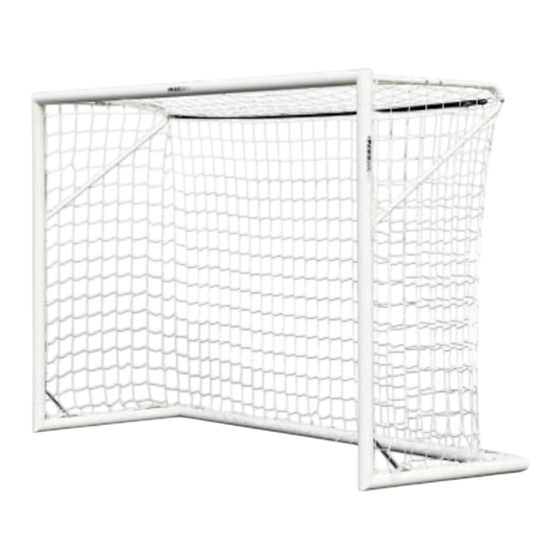

KwikGoal 2P301 Assembly Instructions Manual

1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or
damp packaging may damage contents.
2. Read through entire instruction before beginning assembly and installation.
NOTE: Components may be packaged in one or more additional boxes.
Parts
Base (2)
(UZ1504)
29-3/16"
This goal has been designed to be used for the game of futsal only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
ASSEMBLY INSTRUCTIONS FOR 2P301 FUTSAL GOAL
Left Post (1)
(UZ1494)
67-5/8"
Crossbar (2)
(UZ1496)
109-7/8"
Counterbalance Weight (1)
(UZ1505)
99-1/2"
140 Pacific Drive Quakertown, PA 18951
(P) 215-536-2200 / (P) 800-531-4252 / (F) 215-536-4309 / (F) 800-778-8869
Visit our website @ kwikgoal.com
Crossbar Corner (4)
(UZ810)
***CAUTION***
2015 Rev. 2017 Kwik Goal Ltd.
Right Post (1)
(UZ1499)
67-5/8"
Post Corner (2)
(UZ811)
NZ387 Rev. 09/11/17
