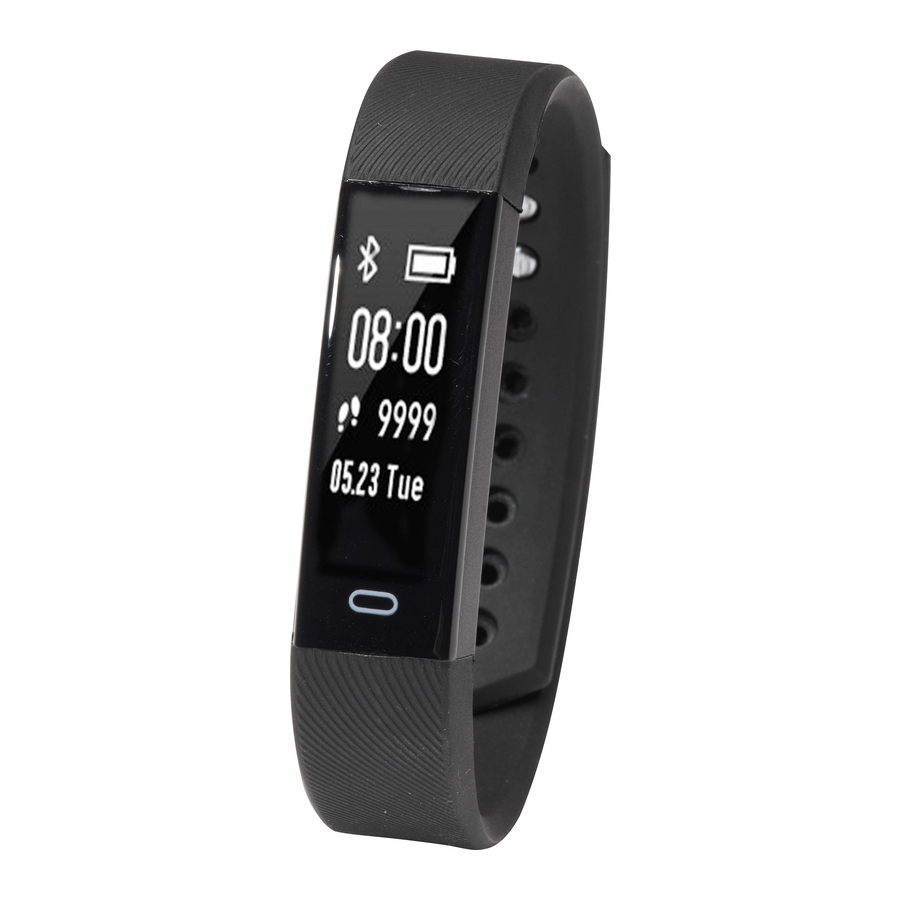

DENVER BFH-15 - Smart Band Manual

Working condition for mobile

iOS 8.0 & above

Android 4.4 & above

Support Bluetooth 4.0

Download DENVER BFH-15 app
The smart band need to pair with the smart phone through app. Before downloading, please refer to working condition for mobile.
Way to download 1: Searching the QR code, scan and download app.
Please use the QR code Scan tool to scan the following QR code and open the link and download app. In case there is any problem to open the link, please try to copy the link and open it by browser.

Google Play

iOS

Way to download 2: Search in the phone market and download. Please search and download the "DENVER BFH-15" from App Store or Google play store.
Device Activate & Charge
Make sure power is working normally before initial use. In case device is under low battery, connect the device to the charger. Device will automatically boot up (please connect the USB in normal DC port (5V-500mA) for charging as below. The host should be separated from the strap when charging).
Pair the device
Open pair device in the app, please make sure the Bluetooth is ON when pair the device. When searching and pairing device, please long press on the screen of the device and activate the device (light on). App will search the device automatically, choose the device name and connect the device to the app.

How to Use

Key Definitions:
Tap: function switch
Long Press: activate, mode switch

Once the device connected to the app successfully, it will record and analyze your activities and sleep automatically, Touch the click toggle, the display order is as follows

Normal Mode

	Time Mode
	Step mode
	Distance mode
	Calories Mode
	Heart Rate Mode

Heart Rate Mode

Click to bpm mode, the blue light open, keep fitness bands touching your hand, the display will show heart rate date;

Notification Mode

	Incoming call notify
	Message notify
	Alarming notify
	Sedentary notify
	Low-power notify
	Charging notify
	Charging full notify

Notification Mode instruction:

Under incoming call, message notify mode, the screen will still display the last time text and sliding, when there is a new notification coming in.
If there is a call or message come, the device will force into call/message alert mode no matter under whatever other mode, after quit, it returns to previous mode.

Functions Instruction

Activities Record:
Record daily activities, you could check daily activities including steps, distance and calorie consumption in the app;

Sleep Monitoring:
Device could automatically recognize your state and monitoring the whole sleep progress with analyzing the deep sleep and light sleep hours;

Notification Alerts:
Alarm alert, call alert, sedentary alert, etc. by silent vibration;

Anti-Lost:
When the smart phone is beyond the Bluetooth range (5m), the device vibrates to remind.

Remote Camera Control:
Operation on the screen could control remote photograph shooting.

Device Data Storage:
The activity data will be cleared every 0:00am as a cycle, but the device itself could restore 7 days' data, after 7 days, the data will be cleared. We suggest user to sync data with app at least one time within 7 days during use.

FAQ

Can't find device when pairing device?
Please make sure the smart phone Bluetooth is ON and smart phone OS Android 4.4 & above and iOS 8.0 & above.
Please make sure the device is near the smart phone when pairing (normal 0.5m) and among the normal Bluetooth communication distance range (within 10m).
Please make sure the device is not under low battery. If there is still problem after full charge, please contact us.
Can't connect the device with app?
Some smart phone Bluetooth service will be abnormal when reboot. Please reboot the Bluetooth or reboot smart phone for pairing device.
How to Restore Factory Defaults
Make sure the device is connected with app, go in the app, enter "Mine-System Setting" and choose "Reboot Device".
How to update the device
Make sure the device is connected with app, go in the app "Device"-"Device update", please wait some minutes before update done.

Basic Specifications

Model: BFH-15
CPU: Realtek 8762-AG
Sensor: Gravitational acceleration sensor
Host Weight: 19g
Battery Type: Polymer Rechargeable Li Battery
Battery Capacity:50mAh
Data Sync: Bluetooth 4.0
Working Temperature: -10C--45C
Dustproof and Waterproof level: IP65
Standby: more than 7 days
Frequency bands: 2402-2480MHz
Maximum output power: 0dBm

This product is applied with professional Bluetooth RF signal and self developed algorithm, the accuracy of step pedometer could be up to 95%.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.
As the end user it is important that you submit your used batteries to the approriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.
All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Hereby, Inter Sales A/S declares that the radio equipment type BFH-15 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
